400-470mhz UHF Yagi Antenna 10dbi 7 Elements Yagi Antenna Outdoor Communication Antenna With N-female Cable Connector
- Model No.
- Y400B/7
- Type
- Yagi Antenna
- Place of Origin
- China
- Frequency Range
- 400-470MHz
- Gain
- 3.5dbi
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Element
- 7 elements
- Accept OEM
- yes
- Length
- 160mm
- Material
- Rubber
Characteristic
Frequency Band Coverage: Full 400-470MHz coverage, with special optimization for the 433MHz/450MHz civilian and industrial bands.
Gain Characteristics: 10dBi directional gain, 45° horizontal beamwidth, 60° vertical beamwidth, effectively extending line-of-sight communication range to 5-8km.
Interface Standard: N-Type male connector (N-Female), compliant with MIL-STD-348A interface specifications, supporting 10W continuous wave power transmission.
Core Performance
Polarization Adjustment: Supports fast switching between vertical and horizontal polarization to adapt to different installation scenarios.
Environmental Adaptability: Operating temperature range of -40°C to +85°C, with a black powder coat finish for UV resistance.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

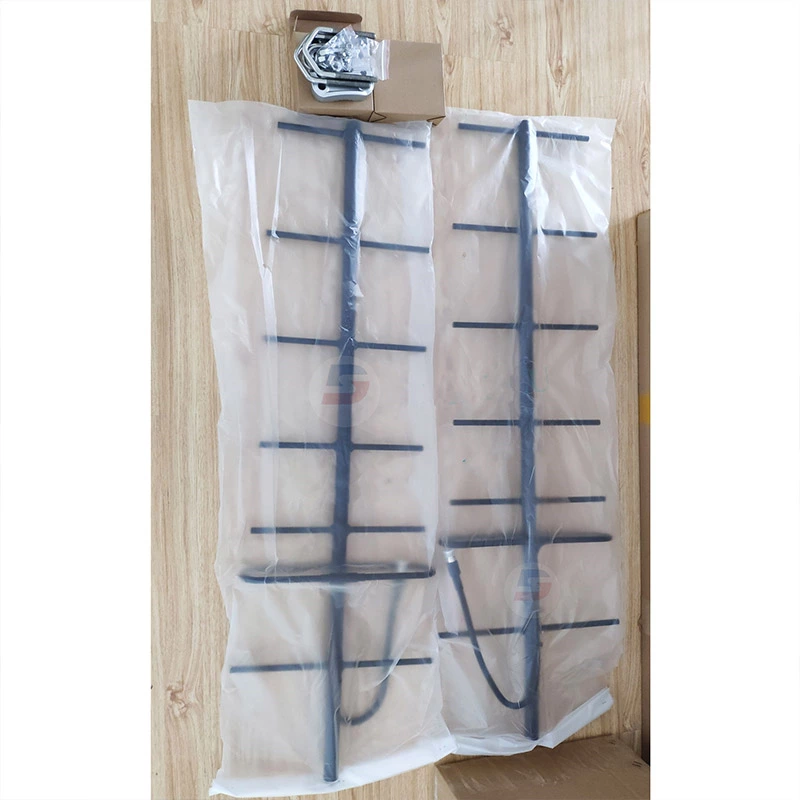

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.

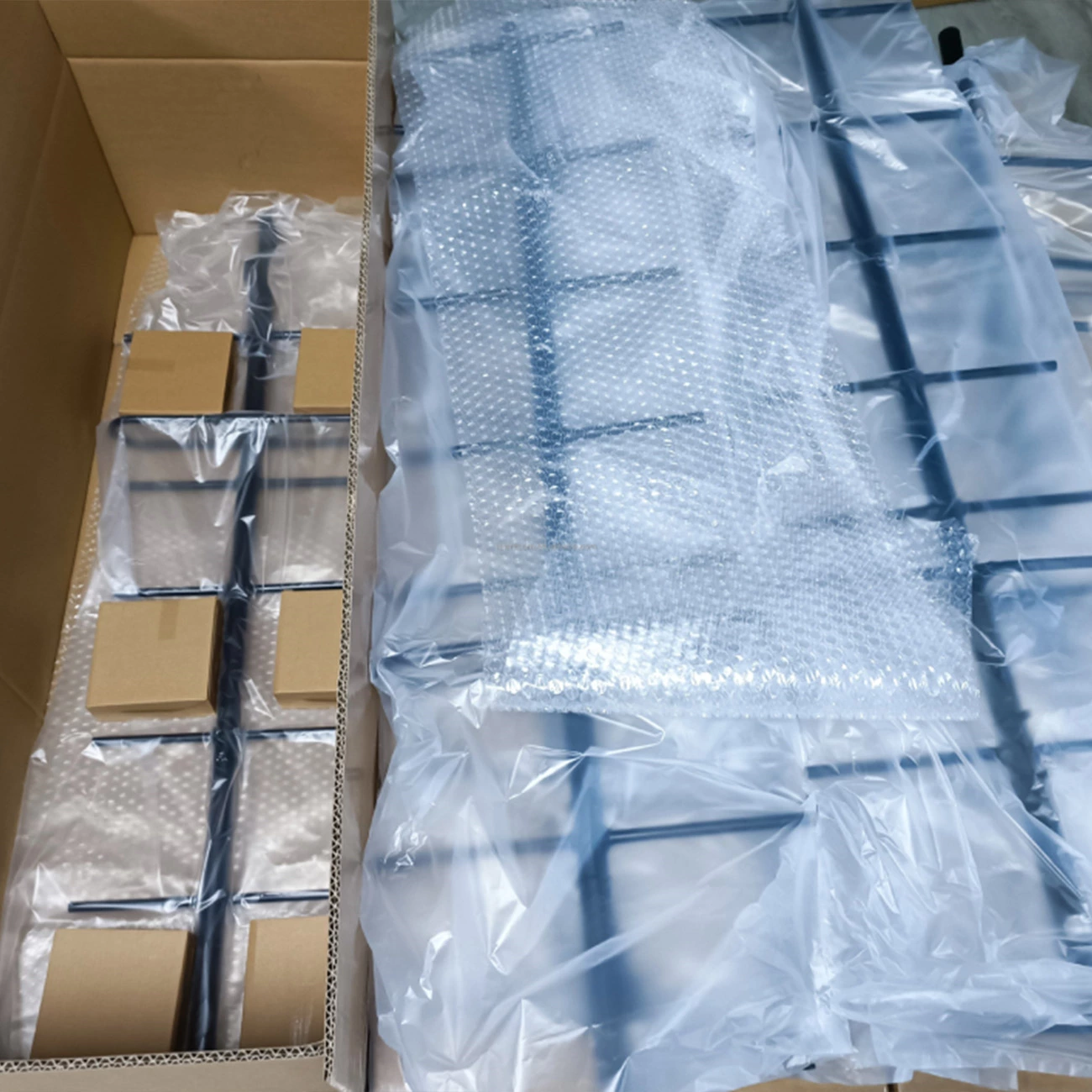

- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
