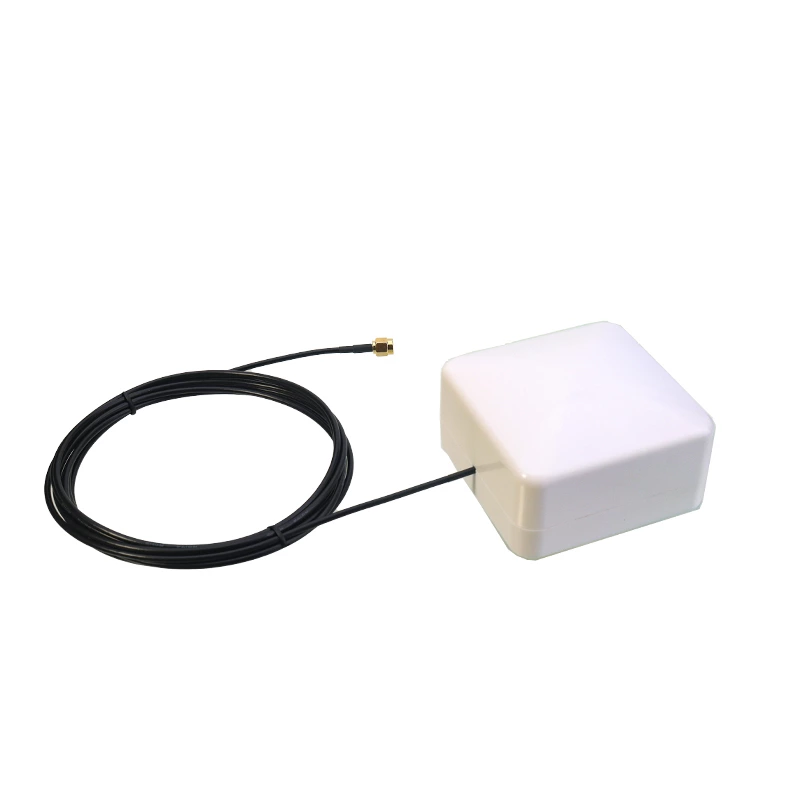

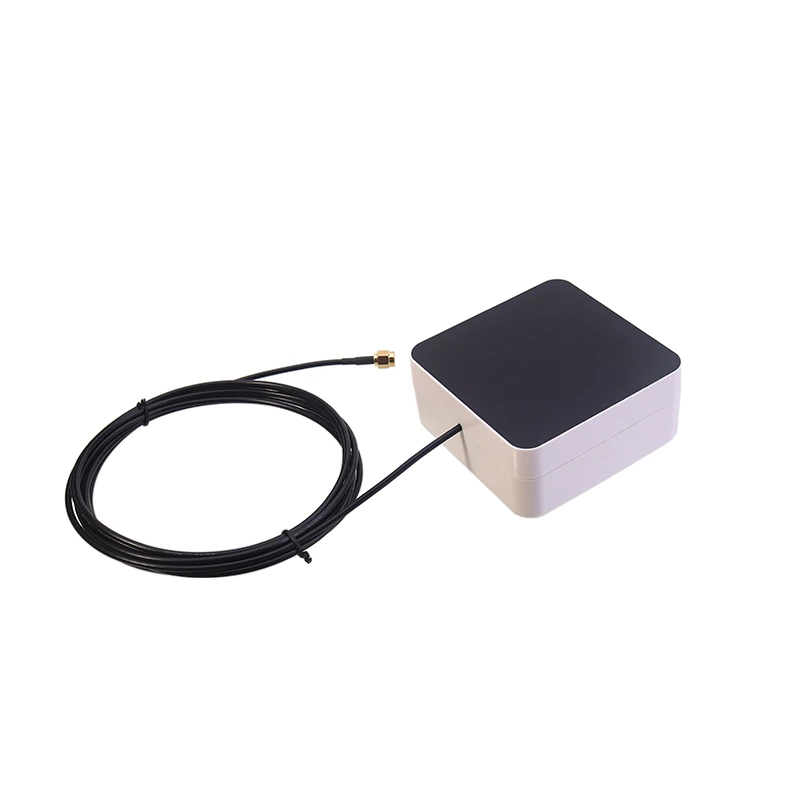

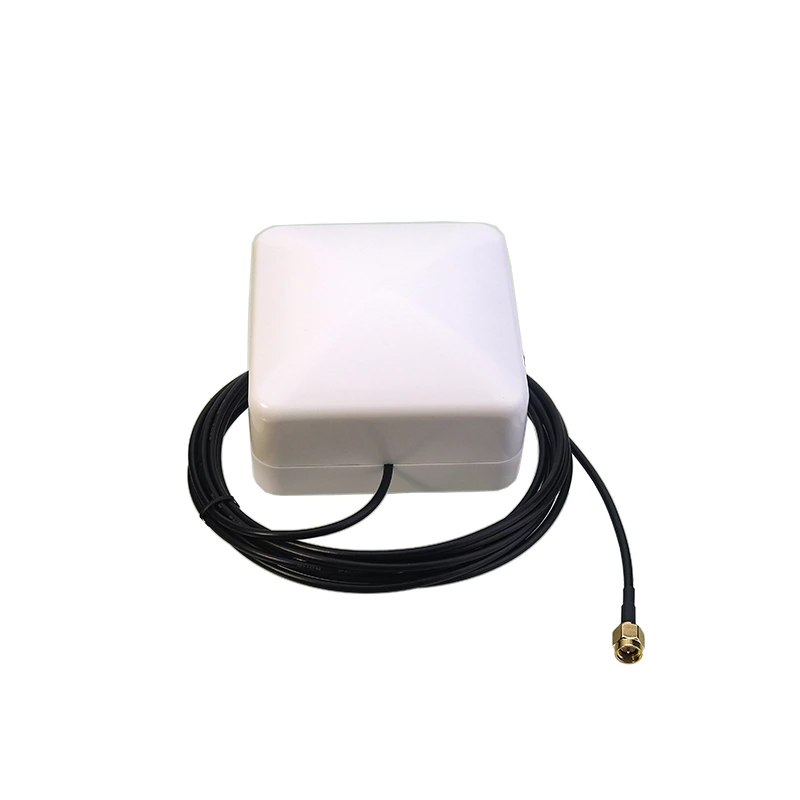

SDGPS-011 GPS L1 L5 High Gain Small Four System GLONASS GALILIE High Precision Vehicle Outdoor Panel Vehicle Antenna
- Model No.
- SDGPS-010
- Type
- GPS/GNSS Antenna
- Place of Origin
- China
- Gain
- 32±2dBi
- Connector
- SMA-Male
- V.S.W.R
- <1.5
- Impedance
- 50 Ohm
- Accept OEM
- yes
Technical Highlights:
Full-band coverage
Simultaneous reception of L1 (1557-1612MHz) and L5 (1170-1210MHz) dual-band signals, combined with a four-system compatible design, significantly improves signal availability in complex environments. Right-hand circular polarization combined with 96-channel tracking technology enables parallel processing of multi-constellation signals. High-gain, stable output. A four-feed spiral structure achieves a gain of 33dBi ±2dB and a phase center stability error of less than 2mm. A built-in low-noise amplifier (LNA) with a noise figure of ≤2dB effectively enhances weak signal reception sensitivity.
Core Performance
High-precision positioning and orientation for autonomous vehicles; automated control of construction machinery; channel surveying and deformation monitoring system; mobile navigation platform for emergency command vehicles
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.
- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
