SDGPS-012 Circular Full-Frequency GPS BDS Measurement Antenna Applicable Driving School Agriculture High-Precision Positioning
- Model No.
- SDGPS-012
- Type
- GPS/GNSS Antenna
- Place of Origin
- China
- Frequency Range
- GPS\BDS\GLONASS GALILEO
- Gain
- 40±2DBI
- Connector
- SMA-Male
- V.S.W.R
- <1.5
- Impedance
- 50 Ohm
- Accept OEM
- yes
- Color
- Black
- Material
- ABS
Technical Highlights:
This full-band circularly polarized GNSS measurement antenna is a professional-grade antenna designed for high-precision positioning applications. It supports both GPS and BeiDou (BDS) satellite navigation systems. Utilizing advanced full-band reception technology, it provides centimeter-level positioning accuracy for mobile platforms such as driving test vehicles and agricultural machinery, making it an ideal choice for improving automated operation efficiency.
Core Performance
Full-band coverage technology
Supports L1/L2/L5 (GPS) and B1/B2/B3 (BDS) full-band signal reception
Circular polarization design effectively suppresses multipath interference, improving signal stability in complex environments
Built-in low-noise amplifier (LNA) delivers a signal-to-noise ratio better than 40dB
High-precision positioning performance
Patented phase center stabilization technology ensures positioning accuracy of ±2cm RTK
Wide beam design (130° elevation coverage) ensures continuous satellite signal tracking
Anti-interference capability of 50dB, suitable for challenging environments such as urban canyons
Professional-grade structural design

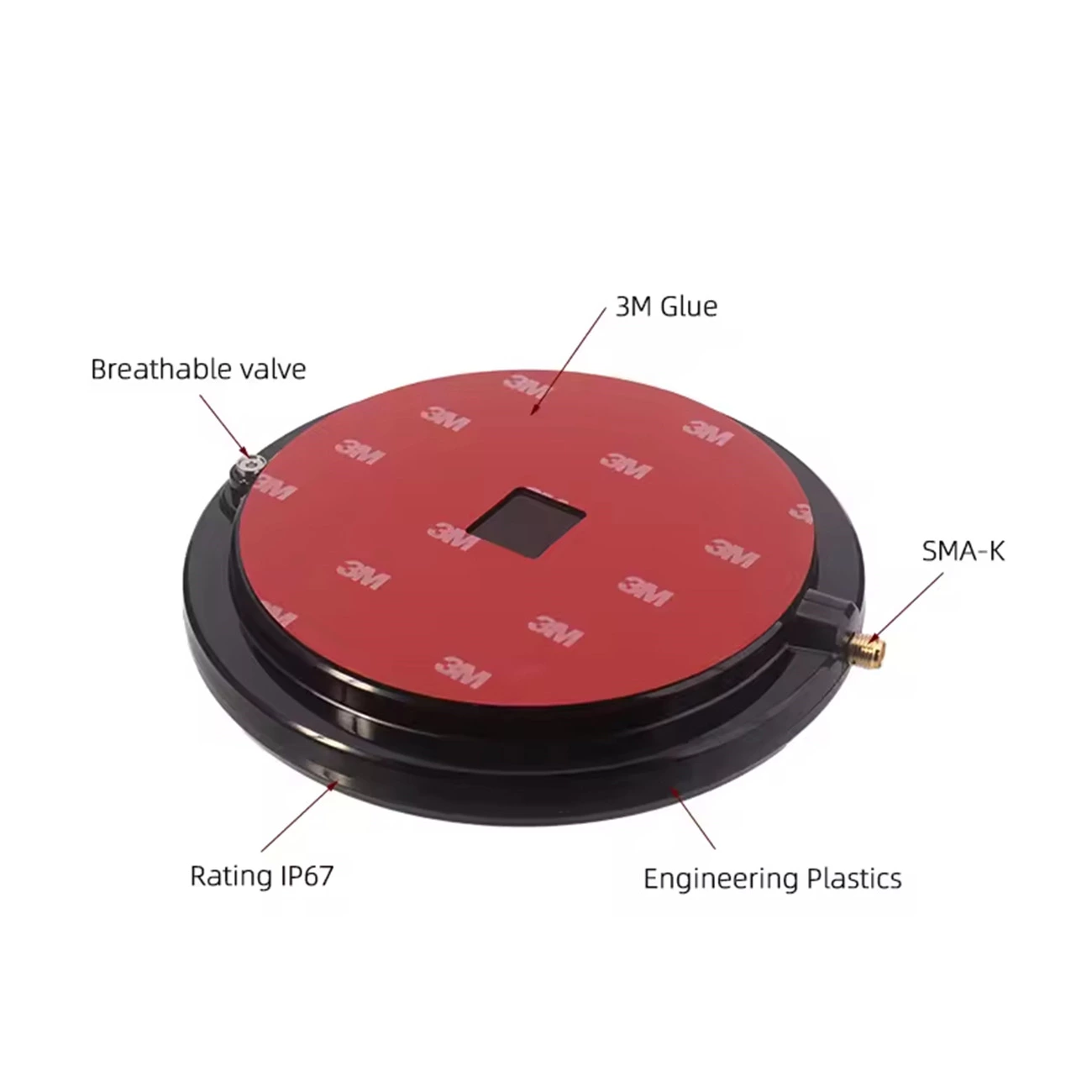

IP67-rated enclosure, dustproof, waterproof, and corrosion-resistant
Operating temperature range: -40°C to +85°C, suitable for various harsh environments
Lightweight design (less than 500g) facilitates integration and installation on various platforms
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.
- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
