400-470MHz UHF Outdoor Aluminium Alloy Yagi Antenna Omni Radiation Digital Base Antenna Communication
- Model No.
- Y400B/3
- Type
- Yagi Antenna
- Place of Origin
- China
- Frequency Range
- 400-470MHz
- Gain
- 7dBi

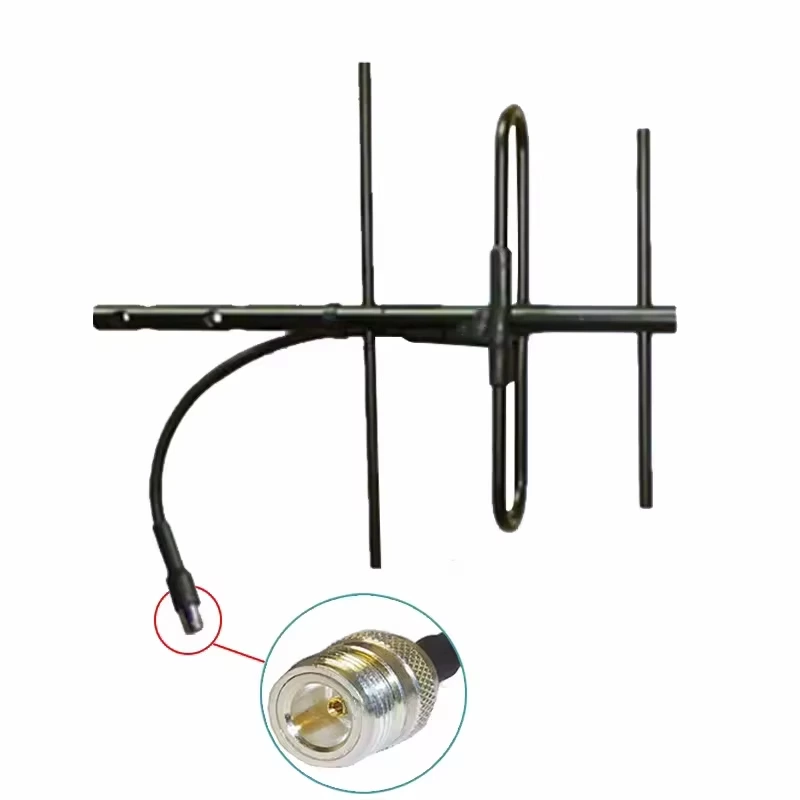

- Connector
- N-Female
- V.S.W.R
- Less than 1.5
- Element
- 3 elements
- Accept OEM
- yes
- Material
- Stainless Steel
Characteristic
Ultra-wideband coverage: Designed for a continuous 400-470MHz frequency band, optimized for 430MHz/450MHz digital trunking communication frequencies, with a standing wave ratio ≤ 1.5:1 (center frequency 435MHz).
Features: Patented folded transducer array with directional support (10dBi gain in Yagi mode).
Power handling: 50Ω impedance matching, capable of withstanding 100W PEP pulse power (compliant with MIL-STD-461G).
Core Performance
Modular assembly: Quick-detach unit structure supports flexible expansion of 3-15 units (gain adjustment range 8-14dBi)
Extreme environment protection: IP68 sealing rating, -55°C to +125°C operating temperature
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

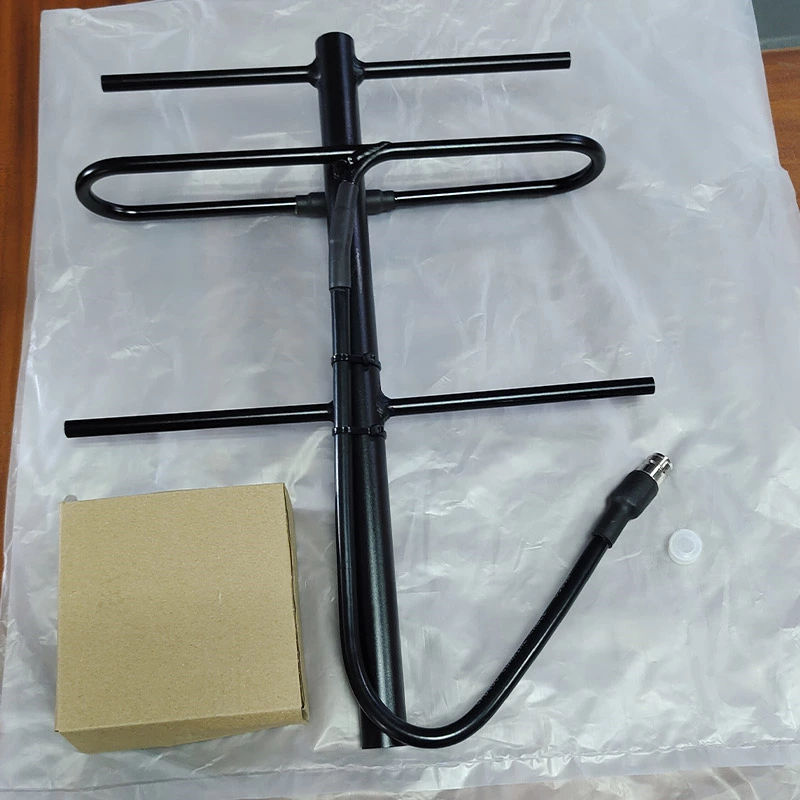

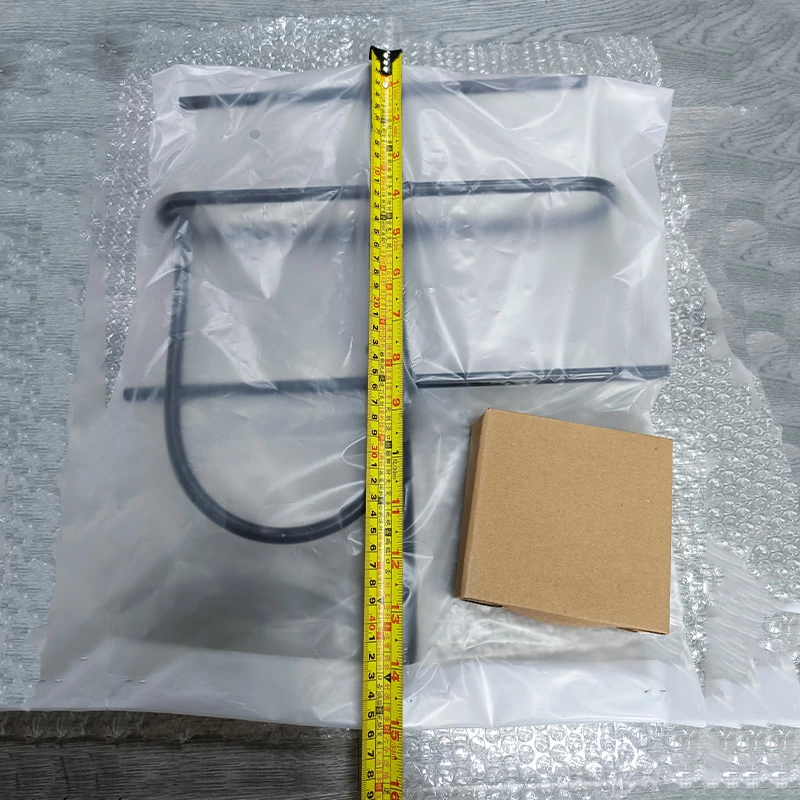

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
