2 Dipole Yagi Antenna 1kw 88-108MHz Broadcast Tv Fm Antenna Din7/16 Female 2way Power Splitter 2pcs 1/2'' 3.5m Feeder Cable
- Model No.
- Y88/108F
- Type
- Yagi Antenna
- Place of Origin
- China
- Frequency Range
- 88-108MHz
- Gain
- 3.5dbi
- Connector
- din7/16 Female
- V.S.W.R
- Less than 1.5
- Accept OEM
- yes
- Material
- aluminum alloy
Characteristic
Antenna Units: Two 1kW dipole antenna units, covering the full 88-108MHz frequency band, utilize a stainless steel radiator with a PTFE insulator.

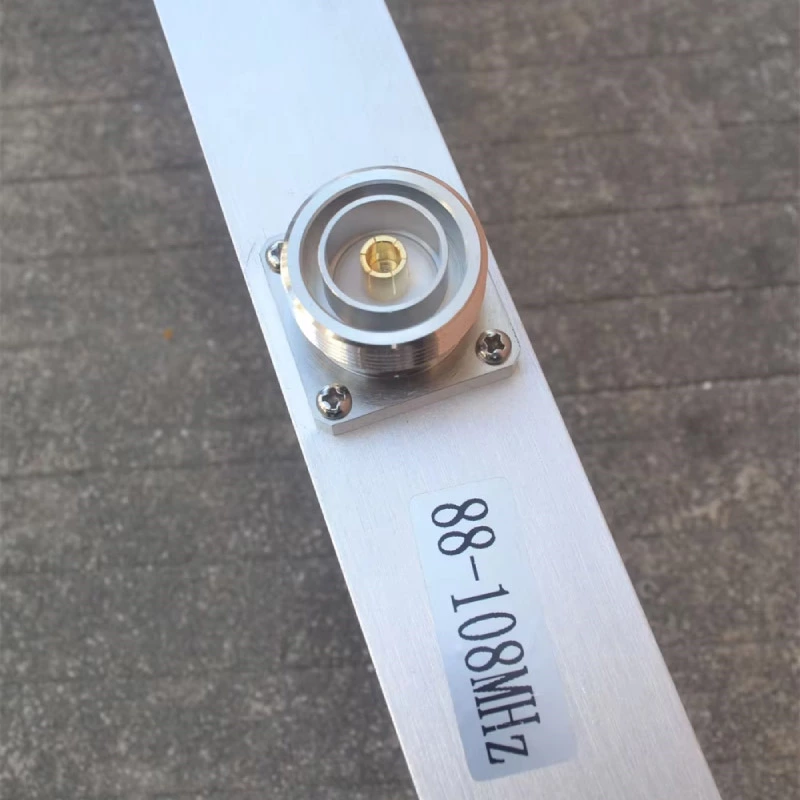

Connection System: DIN7/16 female connector (compliant with IEC 60169-4), supporting direct connection with a 3.5m 1/2-inch feeder cable.
Integrated two-way power splitter, insertion loss ≤ 0.3dB, port isolation > 20dB
Core Performance
FM radio station: Multiple transmitter types are used together to form a complete transmission system.
Emergency broadcast system: Rapid setup, with a two-unit array deployed in under 30 minutes.
Building coverage: Power splitters enable dual-tower simultaneous signal coverage.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.
- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
