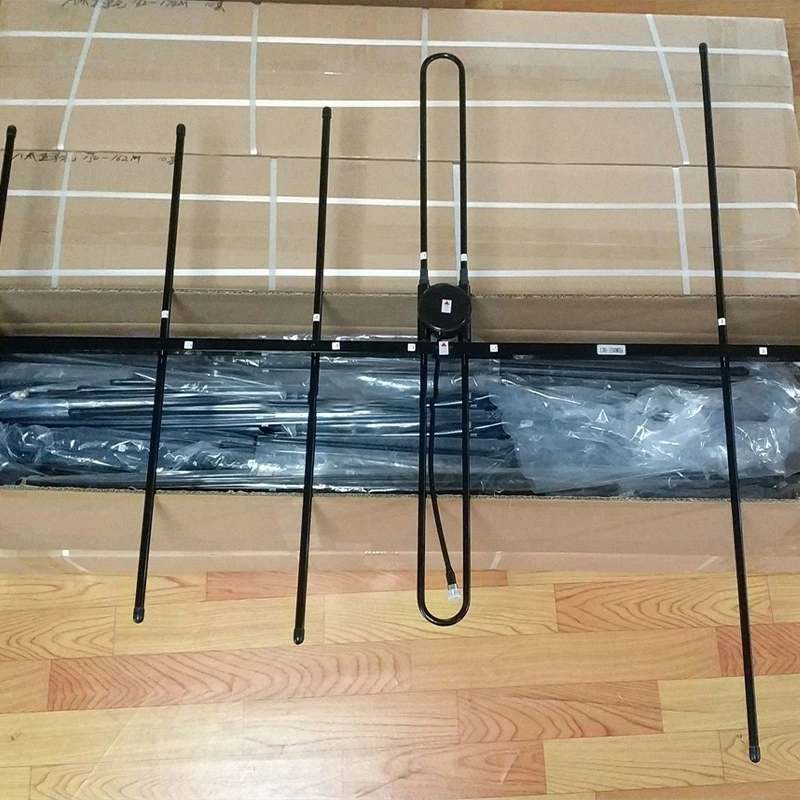

136-174mhz 9dbi Yagi Antenna Black Antenna for Communication
- Model No.
- YV5-B
- Type
- Yagi Antenna
- Place of Origin
- China
- Frequency Range
- 136-174MHz
- Gain
- 9dBi
- Connector
- N-Female
- V.S.W.R
- Less than 1.5
- Element
- 5 elements
- Accept OEM
- yes
- Color
- Silver
- Material
- aluminum
Characteristic
Frequency Band Characteristics: Accurately covers the 136-174MHz VHF high frequency band, with specific optimization at the 150MHz (maritime) and 160MHz (emergency communications) frequencies. Standing wave ratio ≤ 1.5.
Radiation Pattern: 9dBi typical gain, front-to-back ratio ≥ 20dB, horizontal beamwidth 50°±5°, vertical beamwidth 65°±3°.
Connector Configuration: Standard N-type female connector, IP67 waterproof design, supports 50Ω impedance matching.
Core Performance
Environmental adaptability: -40°C to +85°C operating temperature; PTFE coating for salt spray corrosion resistance (3000 hours neutral salt spray test).
Wind load data: Withstands 60m/s wind speed (level 12 typhoon conditions).
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

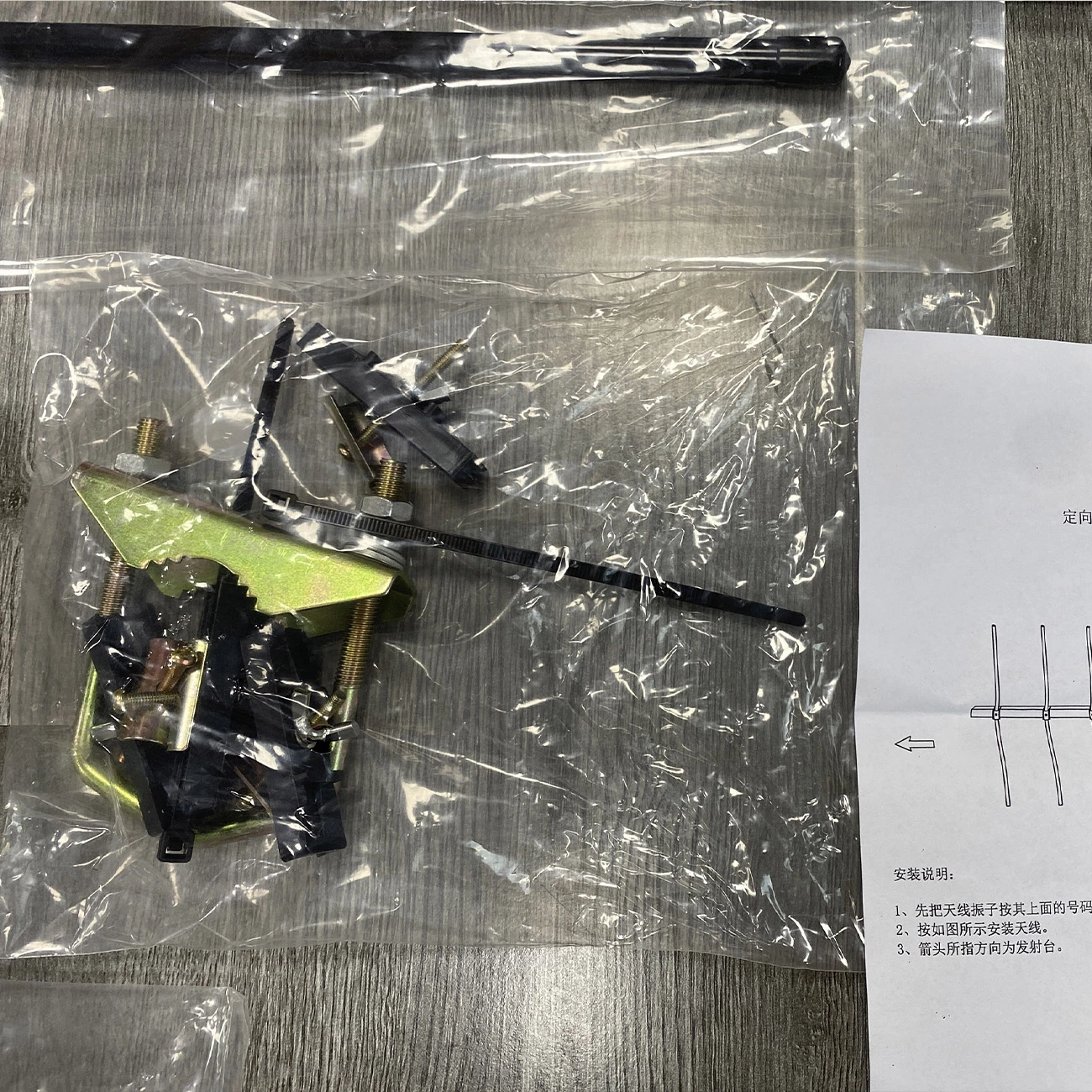

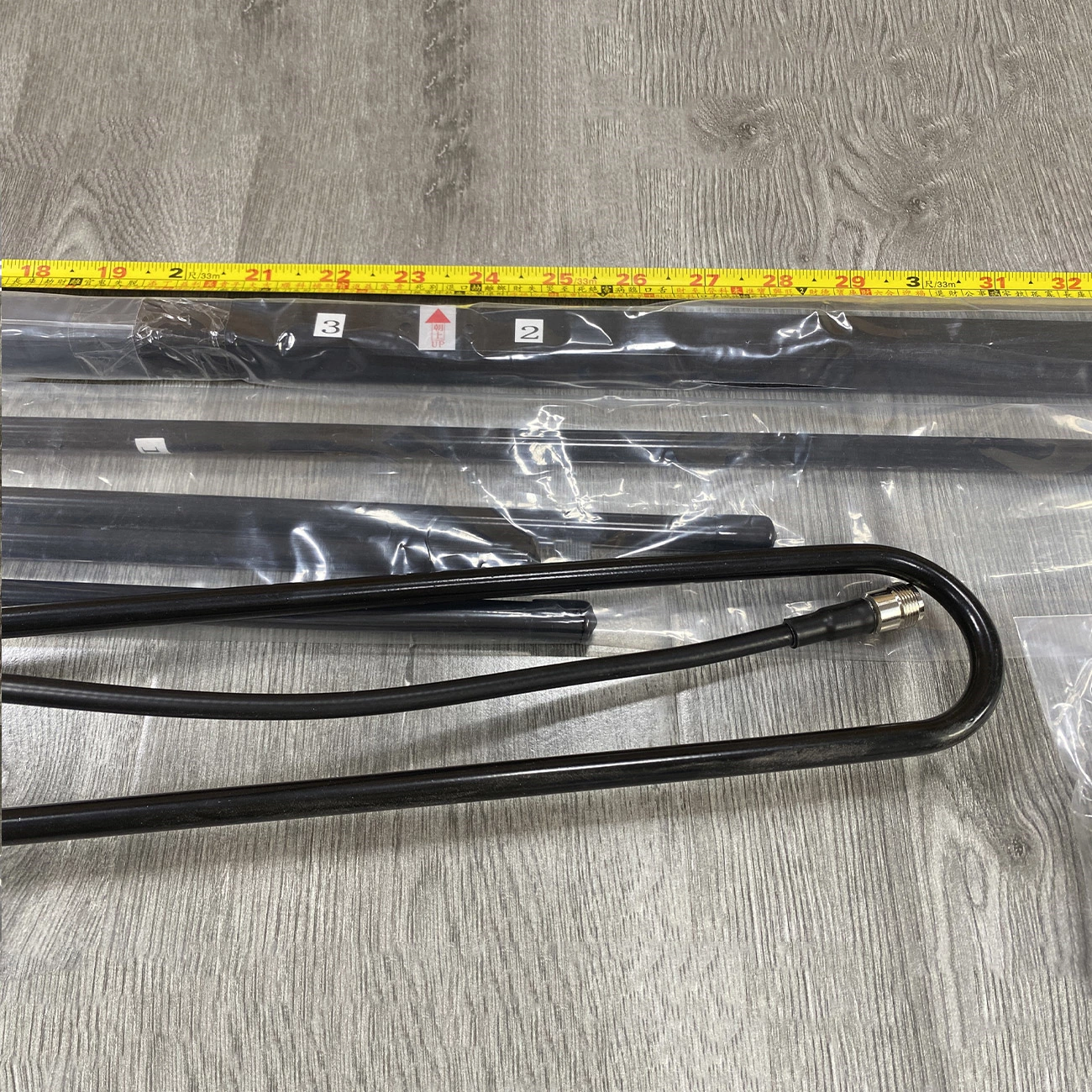

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
