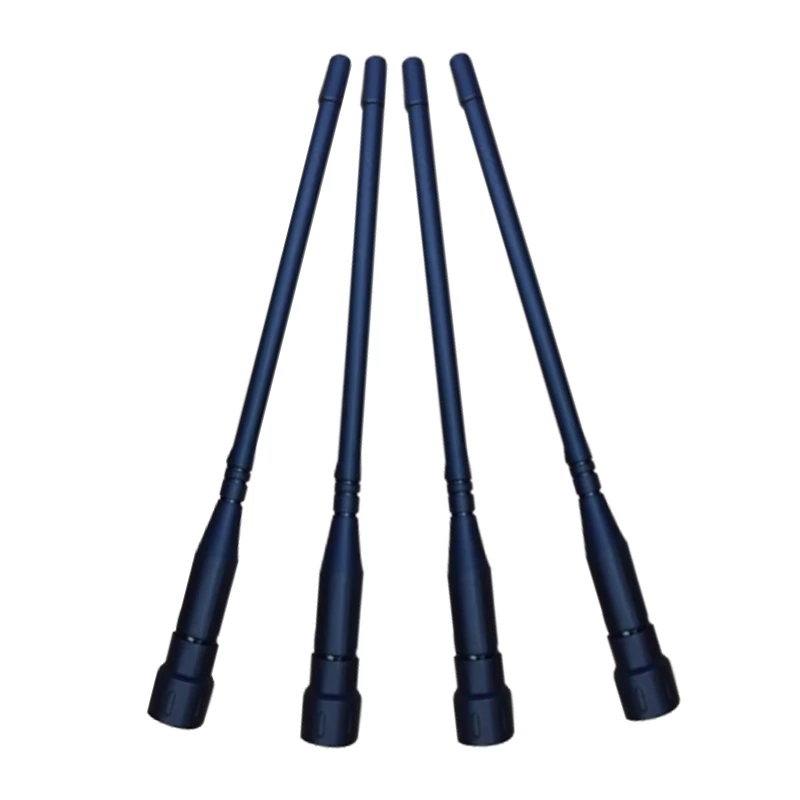

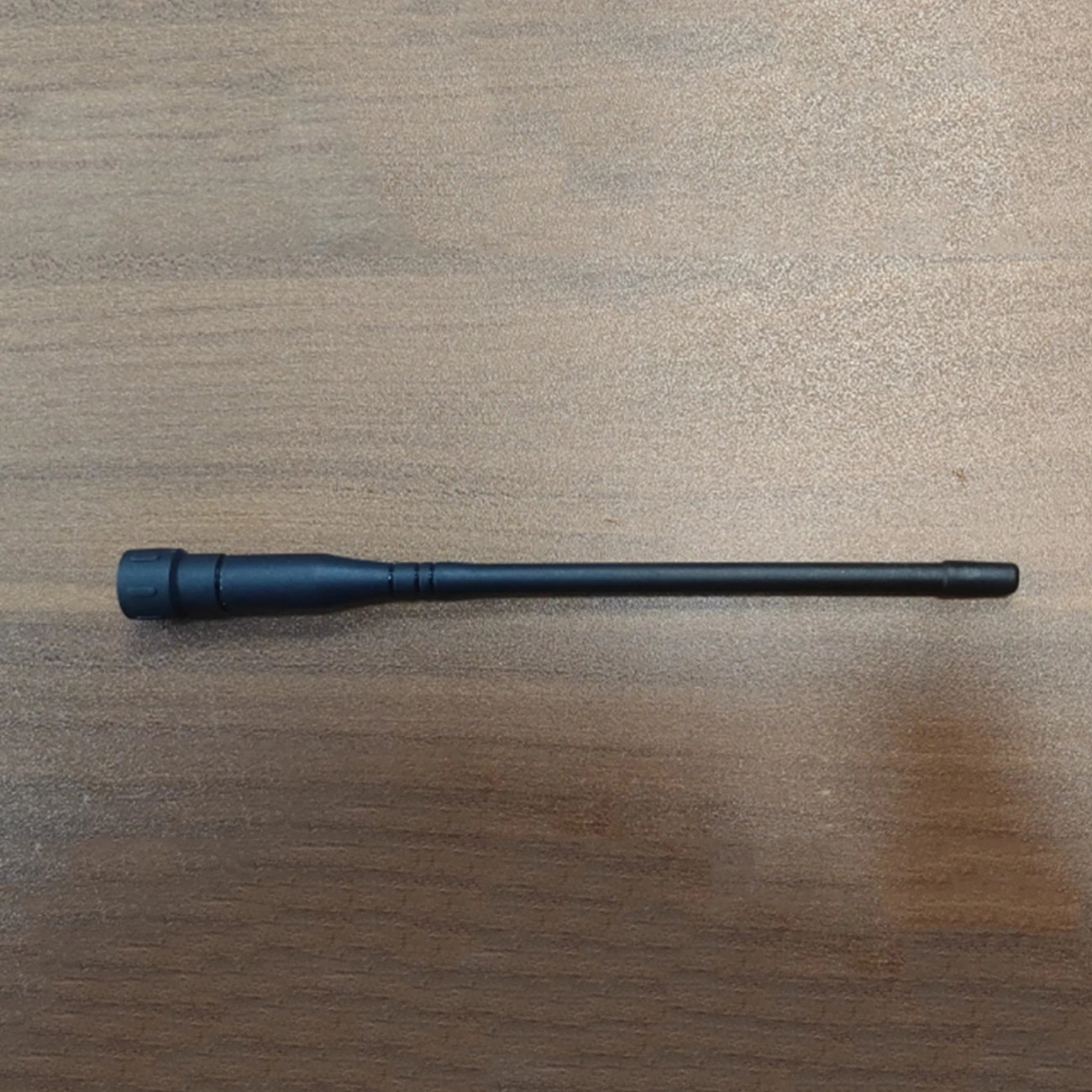

VHF/UHF/868MHz Handheld Radio 3.5dBi Rubber Whip Antenna Walkie Talkie Two-Way Radio Antenna for Starlink Communication
- Model No.
- V85
- Type
- Handheld Antenna
- Place of Origin
- China
- Frequency Range
- VHF/UHF/868MHz
- Gain
- 3.5dbi

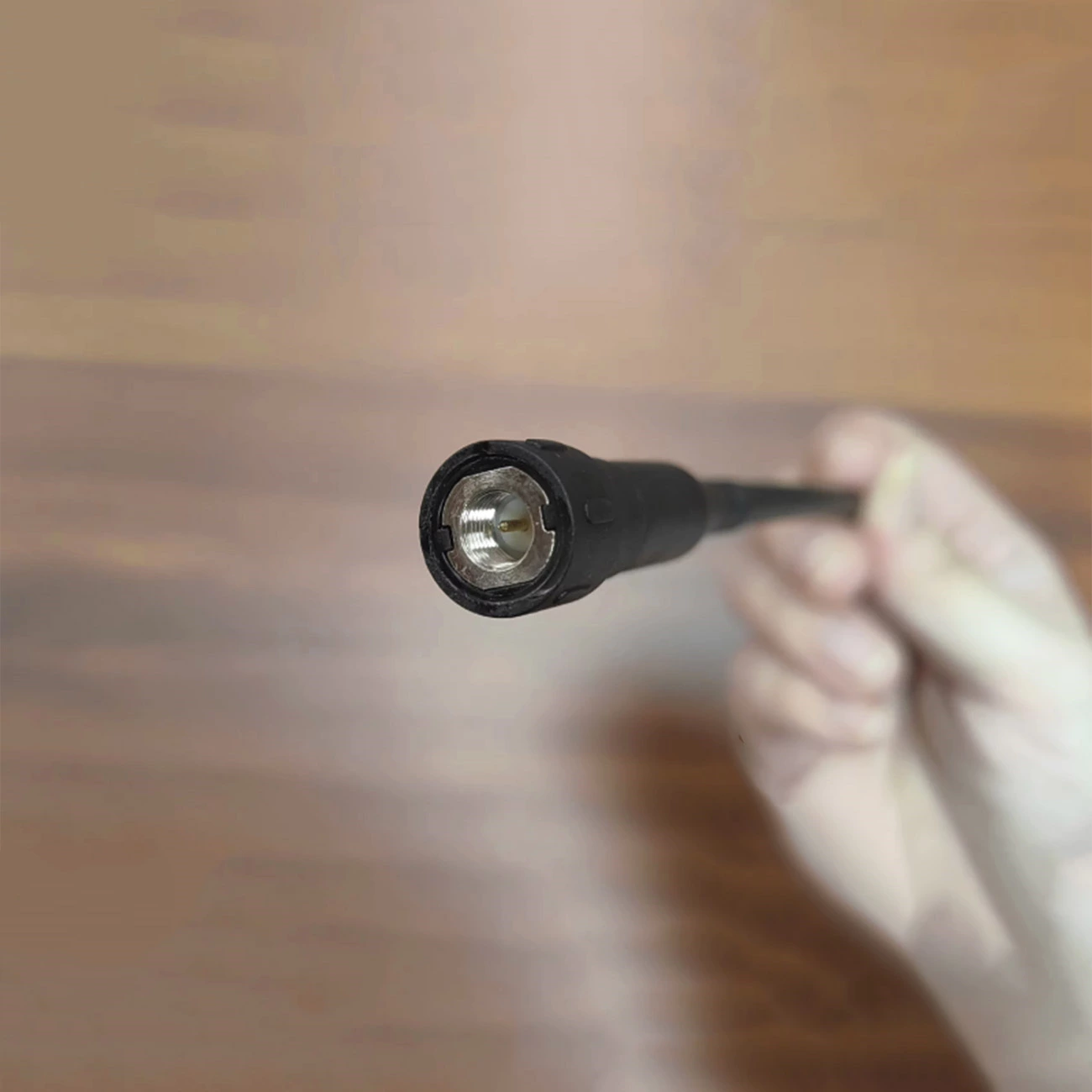

- Connector
- SMA-Type
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes

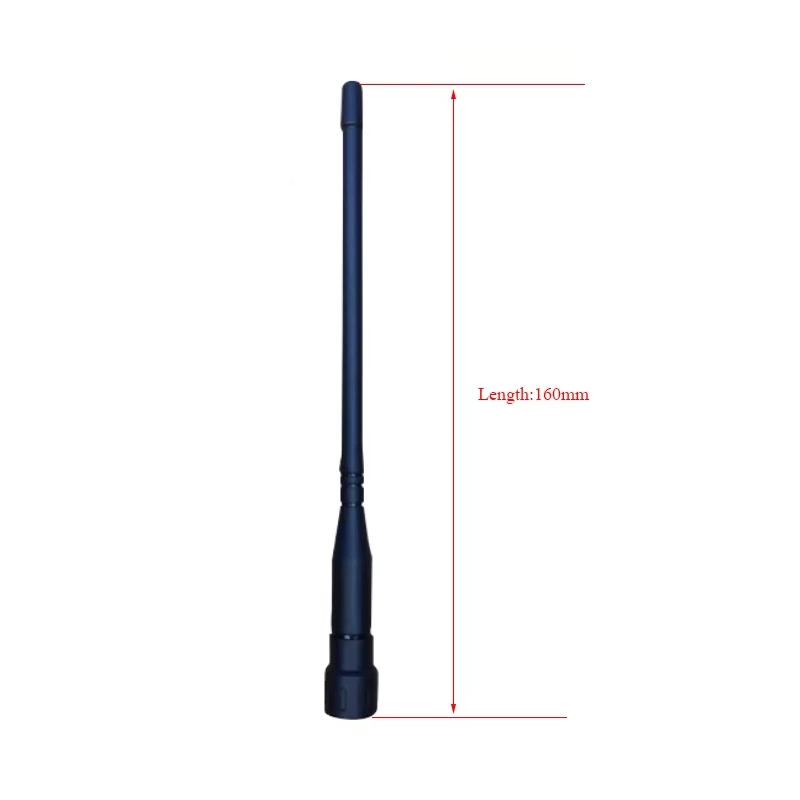

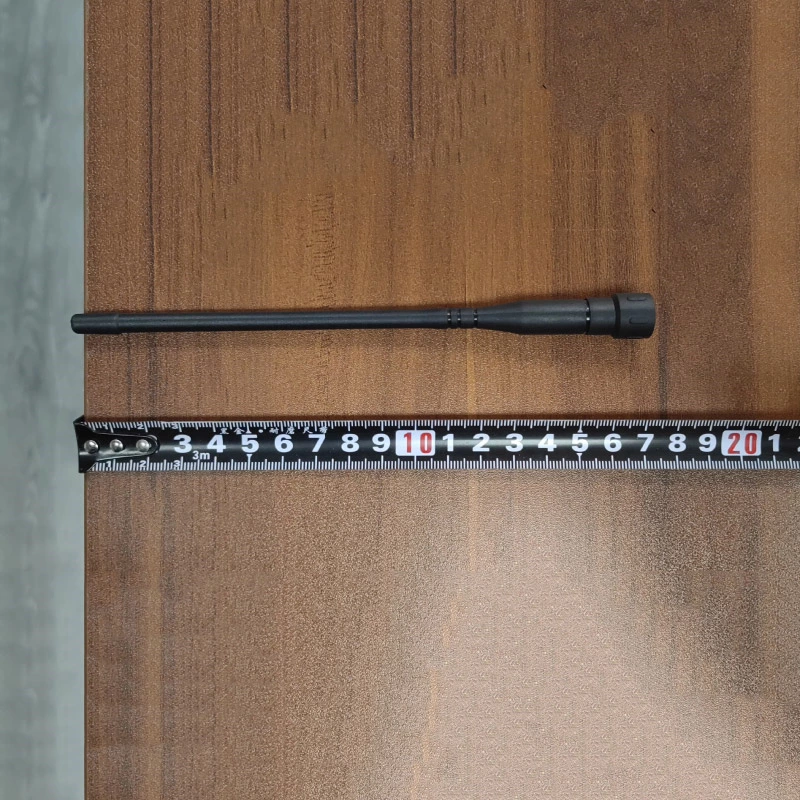

- Length
- 160mm
- Material
- Rubber
Characteristic
Core RF Performance
Wideband Coverage: Simultaneously supports the VHF (66-88MHz), UHF (400-470MHz), and 868MHz ISM bands. Patented loading technology achieves a voltage standing wave ratio (VSWR) of ≤1.8:1 across all three bands.
Intelligent Gain Control: 3.5dBi dynamic gain design utilizes a 1/2 wavelength (UHF) and 5/8 wavelength (VHF) composite structure. Measured open-area communication range:
VHF Mode: 8-12km (5W transmit power)
UHF Mode: 5-8km (4W transmit power)
868MHz Mode: 3-5km (2W transmit power)
Impedance Matching: Standard 50Ω interface with built-in double-balanced transformers, effectively suppressing harmonic interference to -35dBc
Core Performance
Flexible, damage-resistant architecture:
Outer layer: Highly elastic TPU rubber, passed MIL-STD-810G 514.7 vibration test standards
Core material: Shape-memory nickel-titanium alloy wire, withstands >5,000 180° bending cycles
Environmental adaptability:
IP67 protection rating (1 meter immersion for 30 minutes)
Operating temperature range: -40°C to +105°C, passed 96-hour salt spray corrosion test
Ergonomic design:
Total length: 286mm ±2%, weighs only 58g
Anti-tangling thread construction, torque ≥ 0.6N·m
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

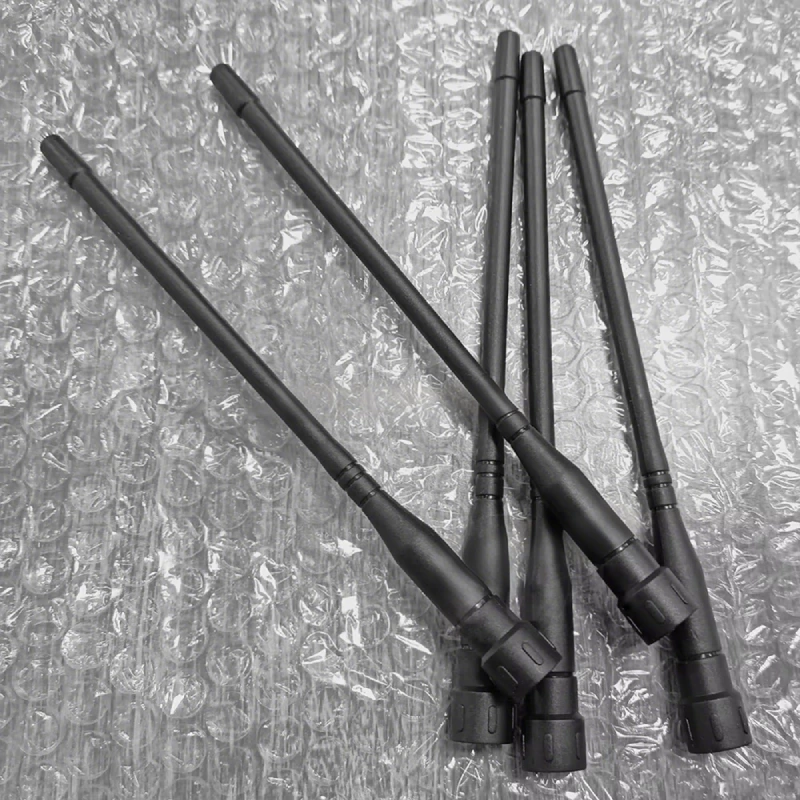

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
