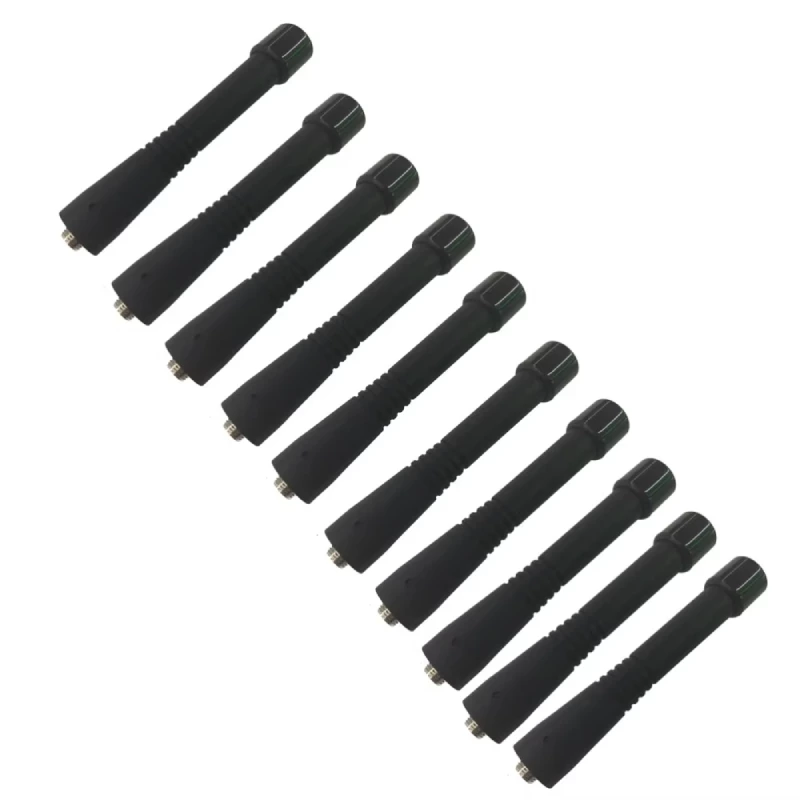

UHF 400-520MHz Handheld Antenna 2.15dBi Walkie Talkie Antenna for portable radio
- Model No.
- 378G
- Type
- Handheld Antenna
- Place of Origin
- China
- Frequency Range
- 400-520MHz
- Gain
- 2.15dBi
- Connector
- SMA-Female
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes

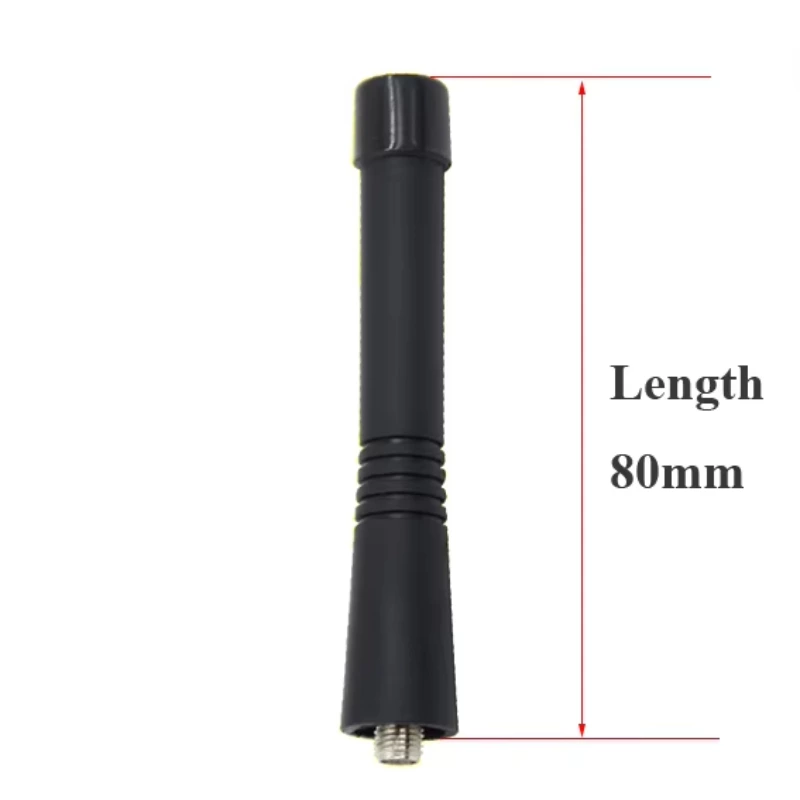

- Length
- about 80mm
- Material
- Fiberglass,stainless steel
Characteristic
SD's vertically polarized SD-378G antenna is one of our extensive inventory of omnidirectional antennas, available for same-day shipping from our ISO 9001:2015-certified facility. This antenna has a frequency range of 400 to 520 MHz and a maximum input standing wave ratio (VSWR) of 1.5:1. This omnidirectional antenna features a female SMA connector.
Core Performance
The antenna has a black TPE radome, an overall length of 3.14 inches, a width of 0.50 inches, and weighs 0.022 pounds. The PSD-378G is a single-band antenna operating from 400 to 520 MHz with a gain of 2.15 dBi.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

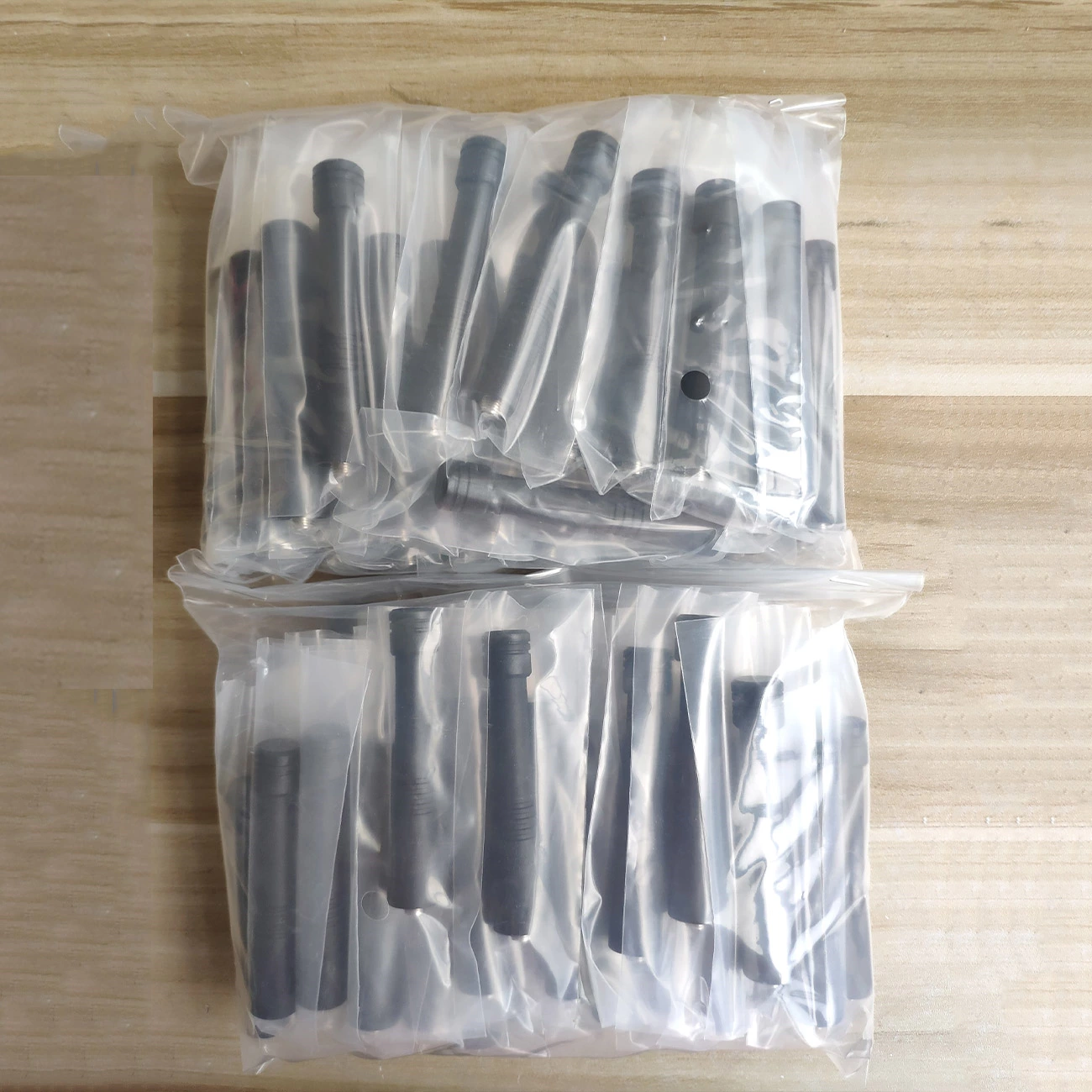

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.

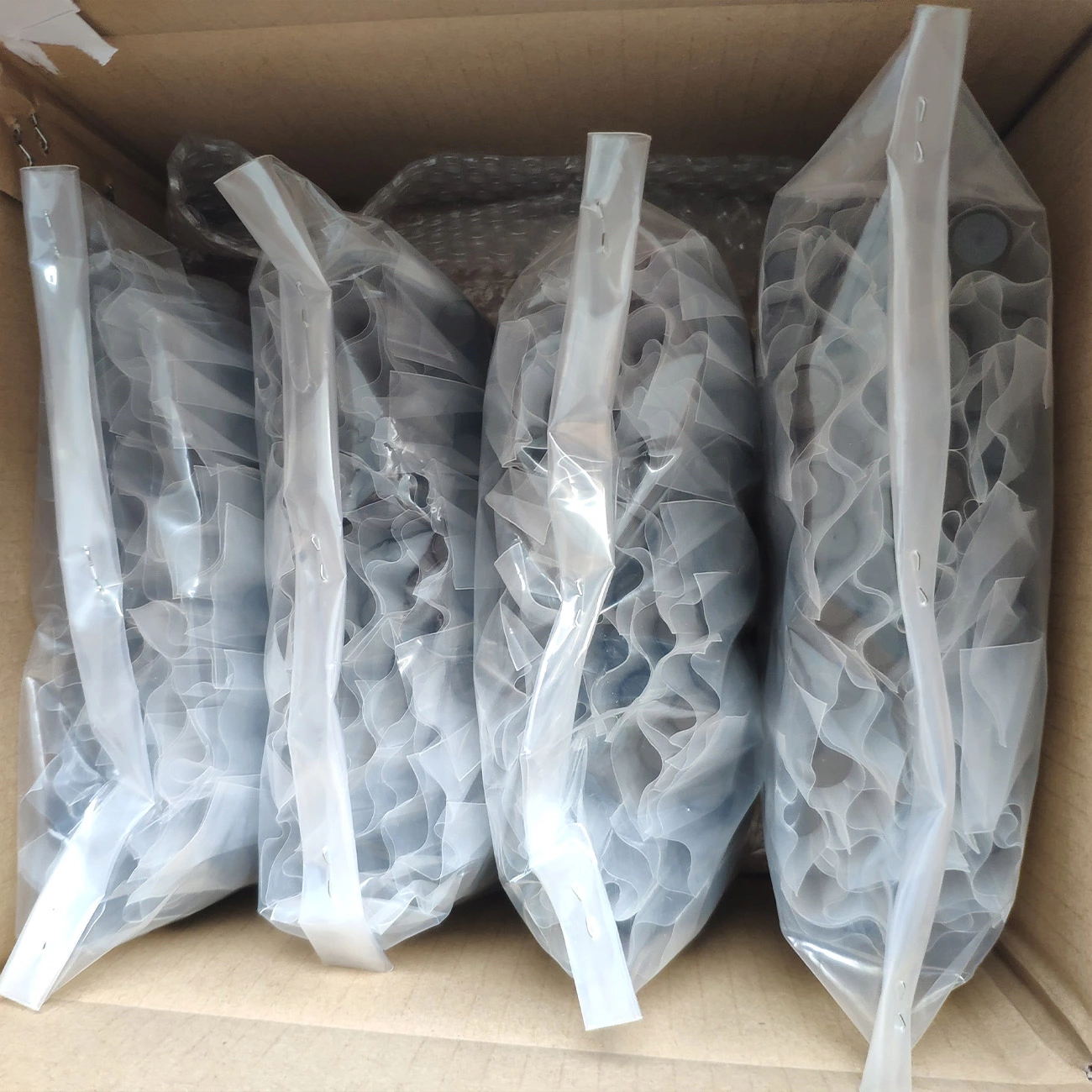

- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
