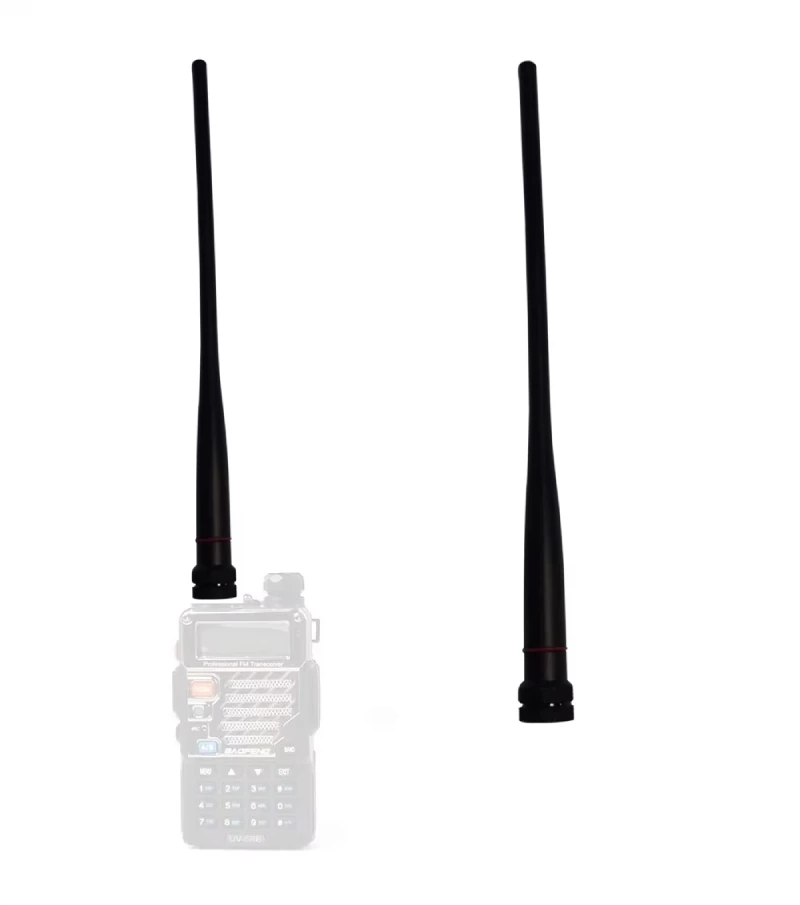

SC66-88 Amateur Walkie Talkie VHF or 66 to 88MHz Portable Handheld Two Way Radio Antenna
- Model No.
- SC66-88
- Type
- Handheld Antenna
- Place of Origin
- China
- Frequency Range
- 66-88mhz
- Gain
- 1.8dBi
- Connector
- SMA-Male
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Length
- 213mm
- Material
- Rubber
Characteristic
Full-Scenario Frequency Band Adaptation
Based on an optimized design for the VHF band, it boasts exceptional electromagnetic wave penetration and anti-interference capabilities, effectively addressing challenges such as shielding from steel structures and complex terrain, ensuring stable transmission for short and medium-range communications.
Core Performance
Gain Characteristics: 1.8dBi omnidirectional gain design, 360° horizontal beamwidth, and 60° vertical beamwidth, ensuring an effective communication radius of 6-8km in open areas.
Impedance Matching: 50Ω standard impedance, voltage standing wave ratio (VSWR) ≤1.5:1, minimizing signal reflection loss.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

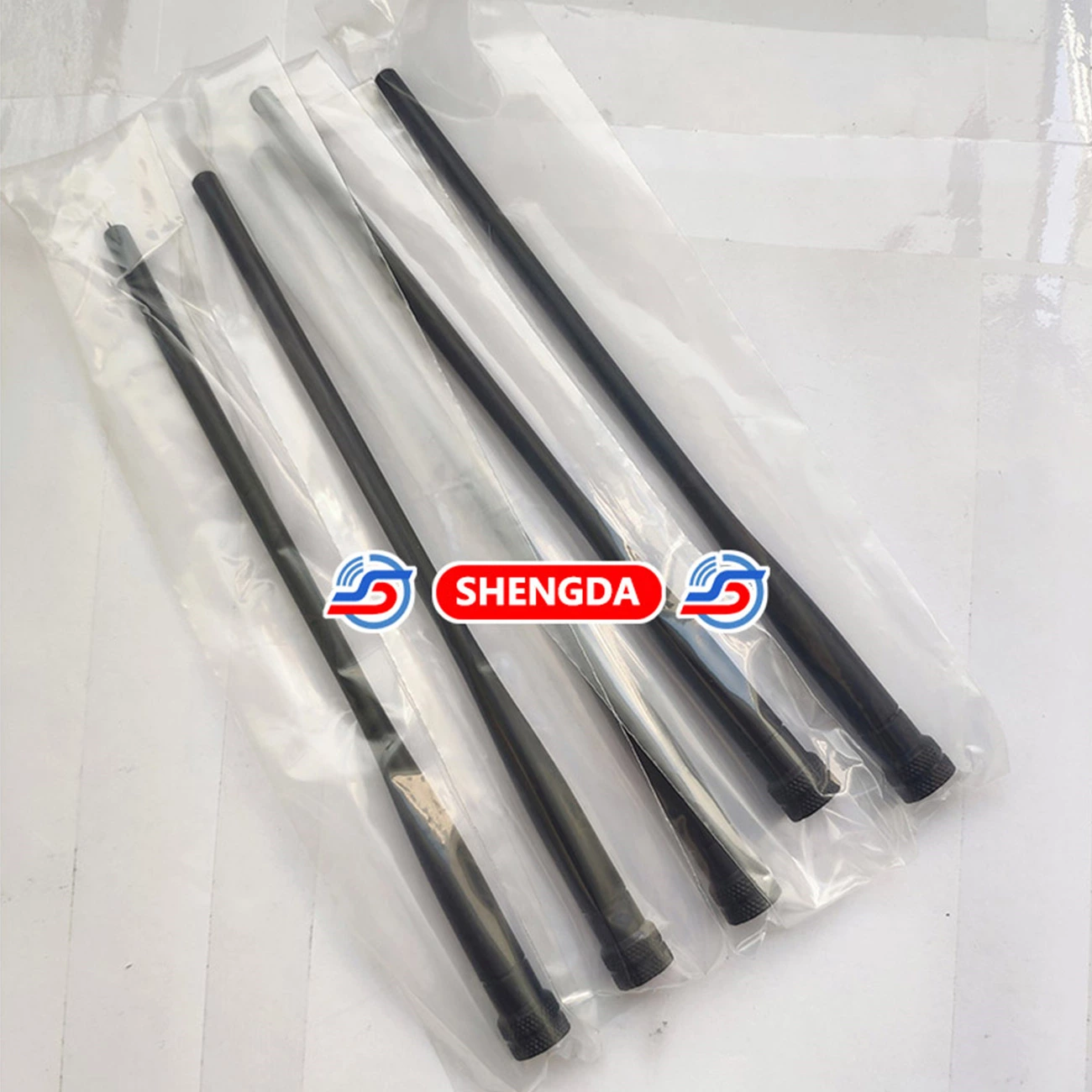

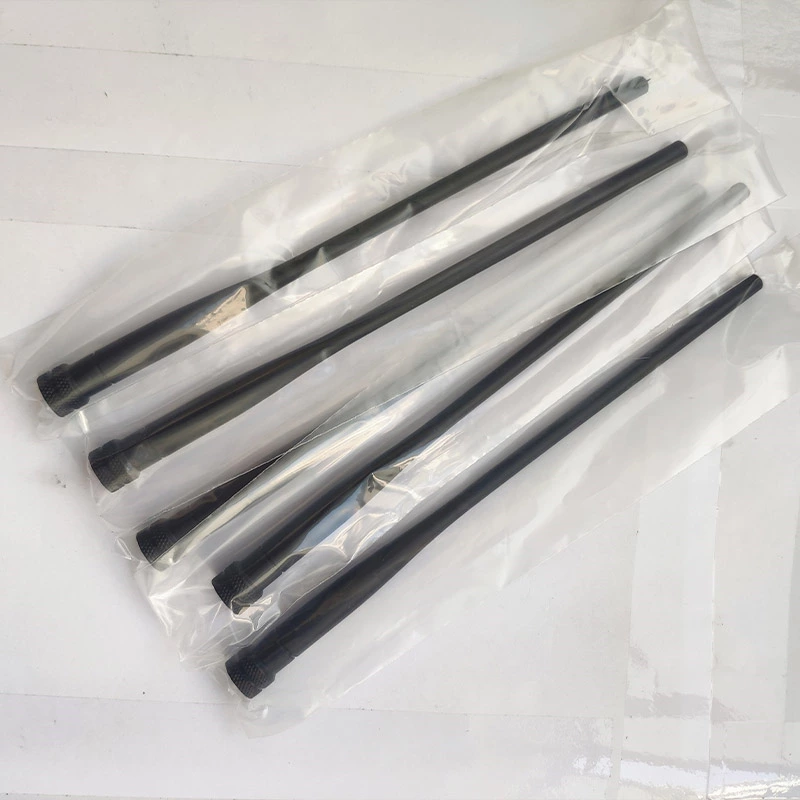

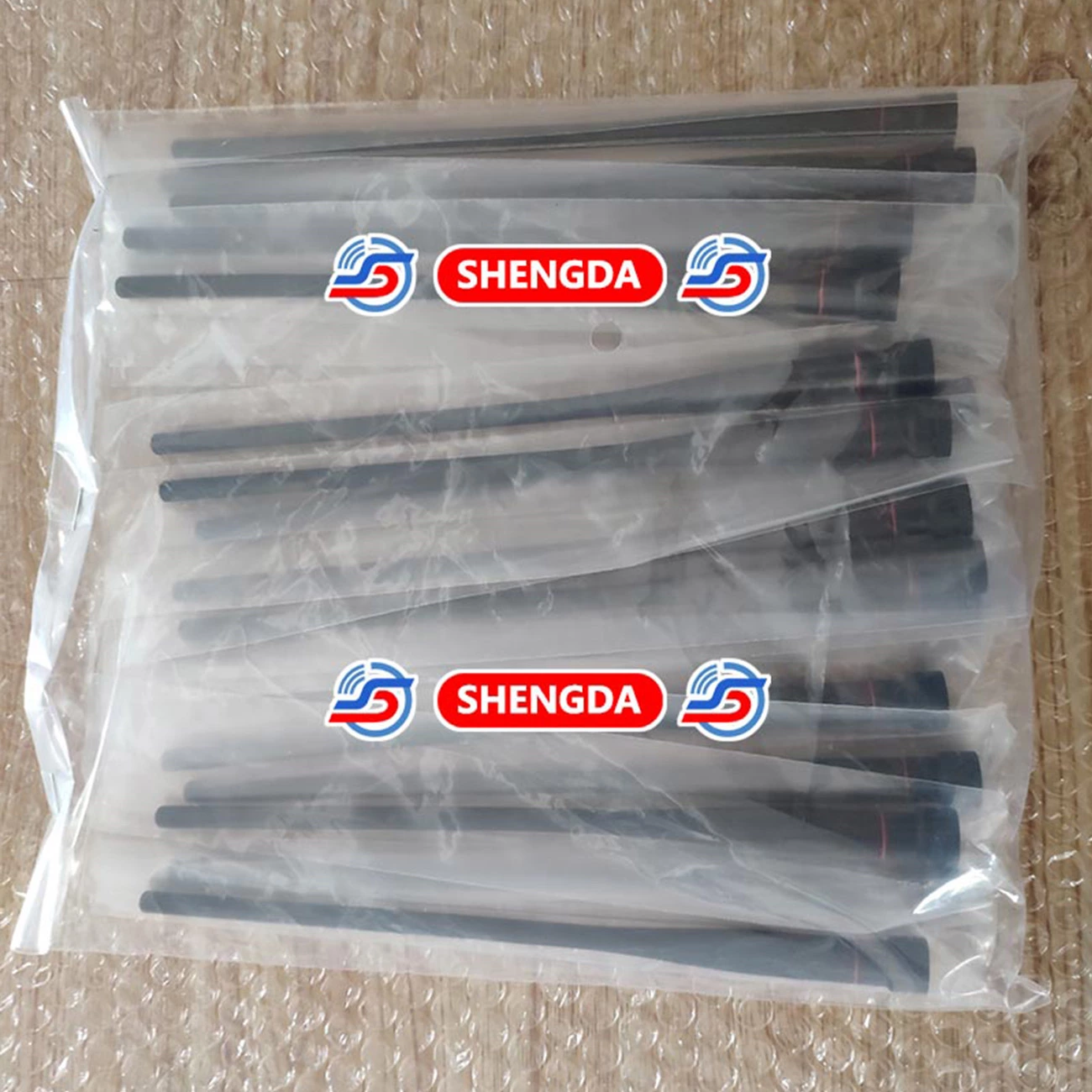

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
