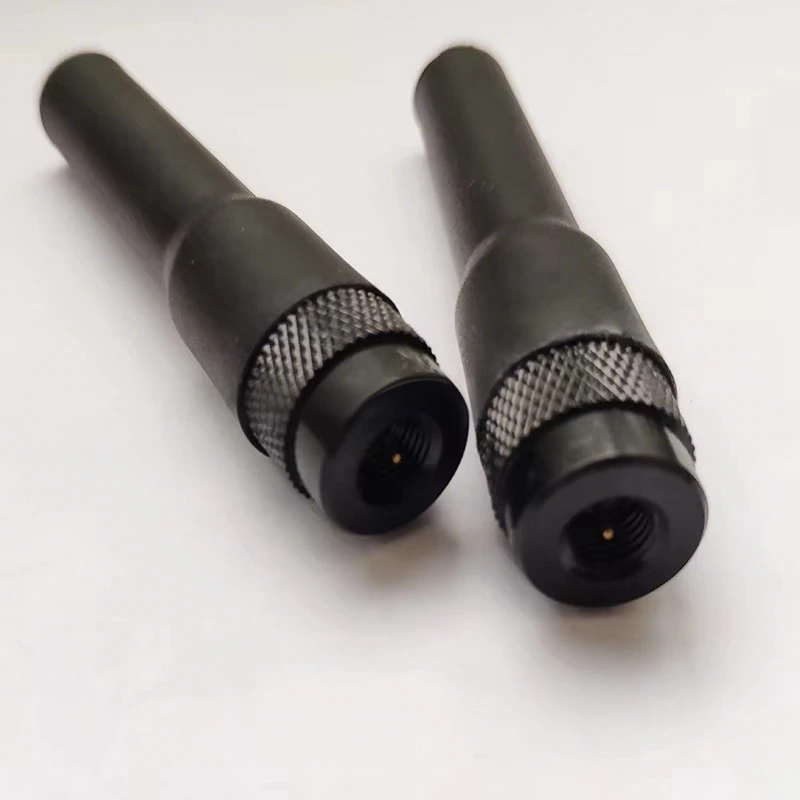

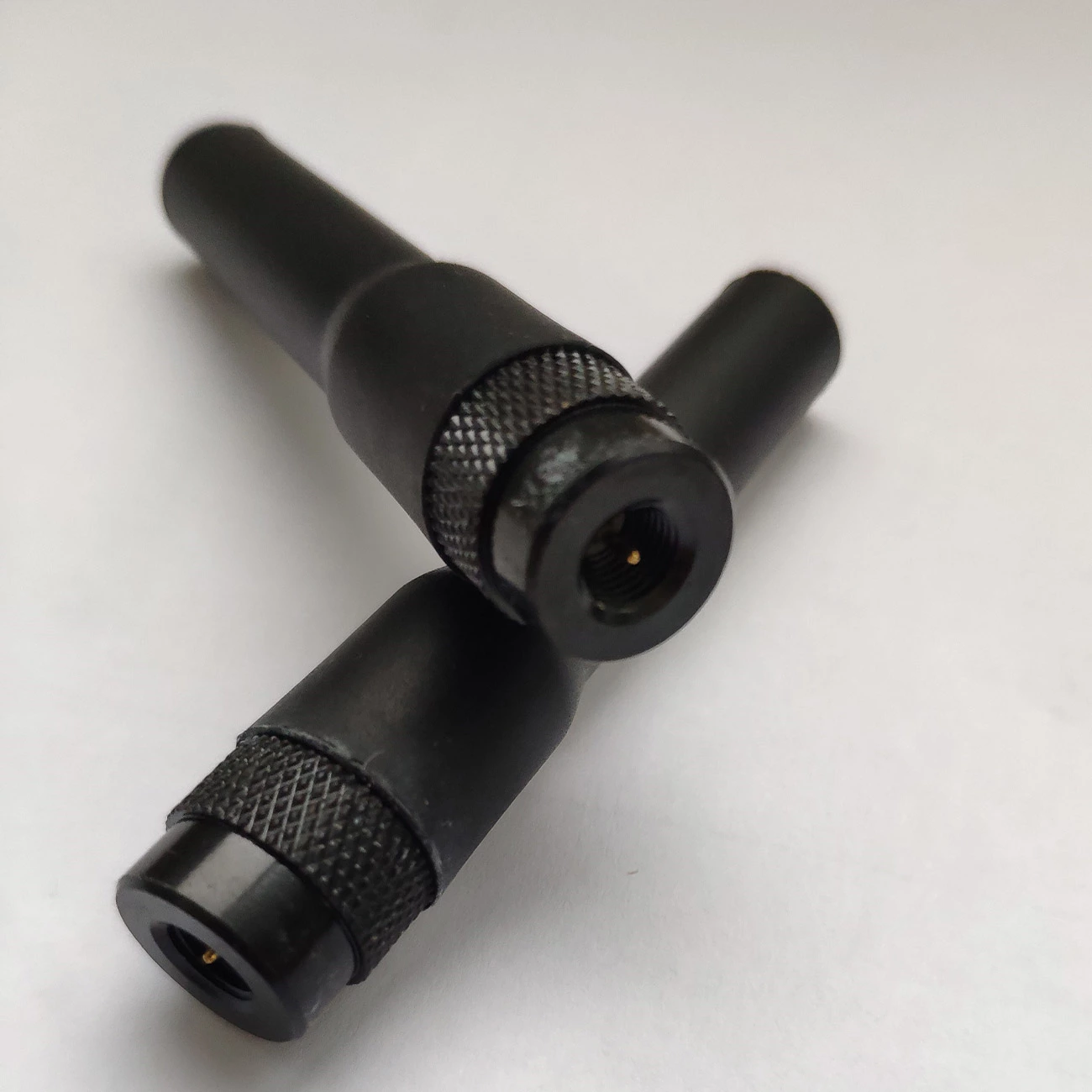

Flexible Rubber Antenna 433-446MHz UHF Walkie Talkie Antenna with SMA-Type Connector
- Model No.
- SRJF10
- Type
- Handheld Antenna
- Place of Origin
- China
- Frequency Range
- 433-446 MHz
- Gain
- 2.15dBi
- Connector
- SMA-Type
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes

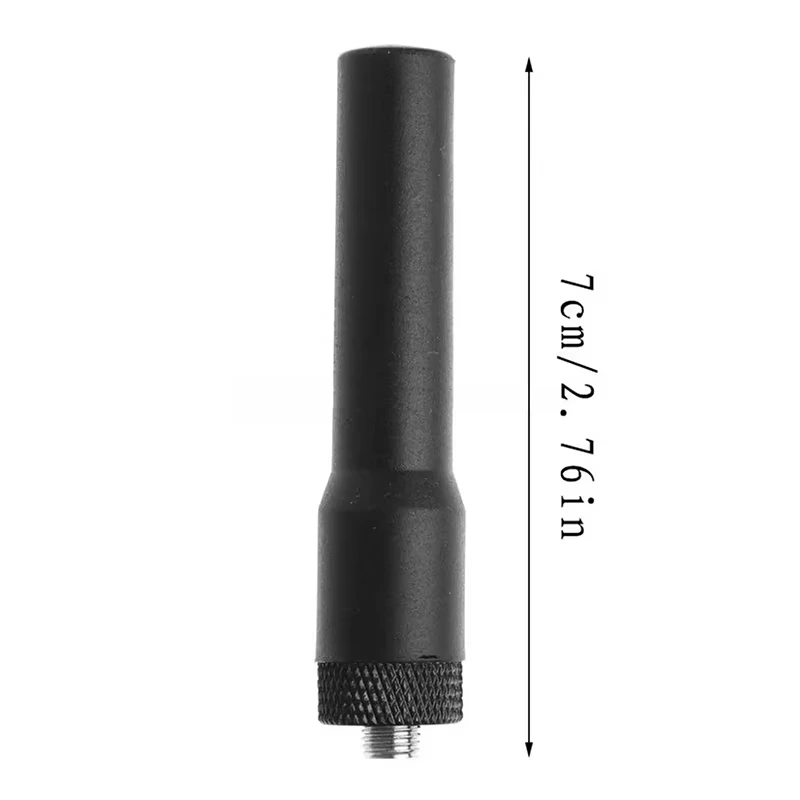

- Length
- 70mm
- Material
- ABS/Copper
Characteristic
Frequency Band Coverage: Precision-tuned to the 433-446 MHz UHF band, compatible with the PMR446 civilian walkie-talkie band and industrial IoT device communication requirements.
Gain Characteristics: 2.15 dBi omnidirectional gain design, a uniform circular horizontal radiation pattern, and a 75° vertical beamwidth, ensuring an effective communication radius of 3-5 km in complex environments.

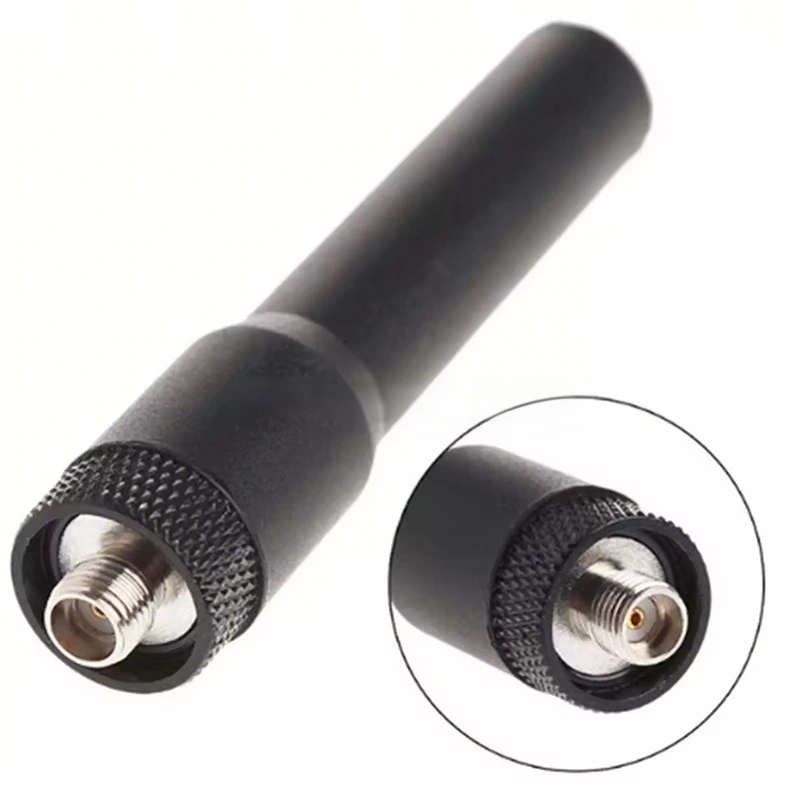

Interface Standard: SMA-J male connector (RP-SMA), compliant with IEC 61169-8 standard threaded interface specifications, with a torque of ≥ 0.5 N·m.
Core Performance
Flexible Structure: TPU rubber encapsulation with an internal nickel-titanium alloy core withstands over 2,000 90° bending cycles and maintains shape memory even in extreme temperatures.
Environmental Adaptability: IP67 protection rating, operating temperature range -40°C to +85°C, and UV resistance tested for 3,000 hours using a xenon lamp.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.
- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
