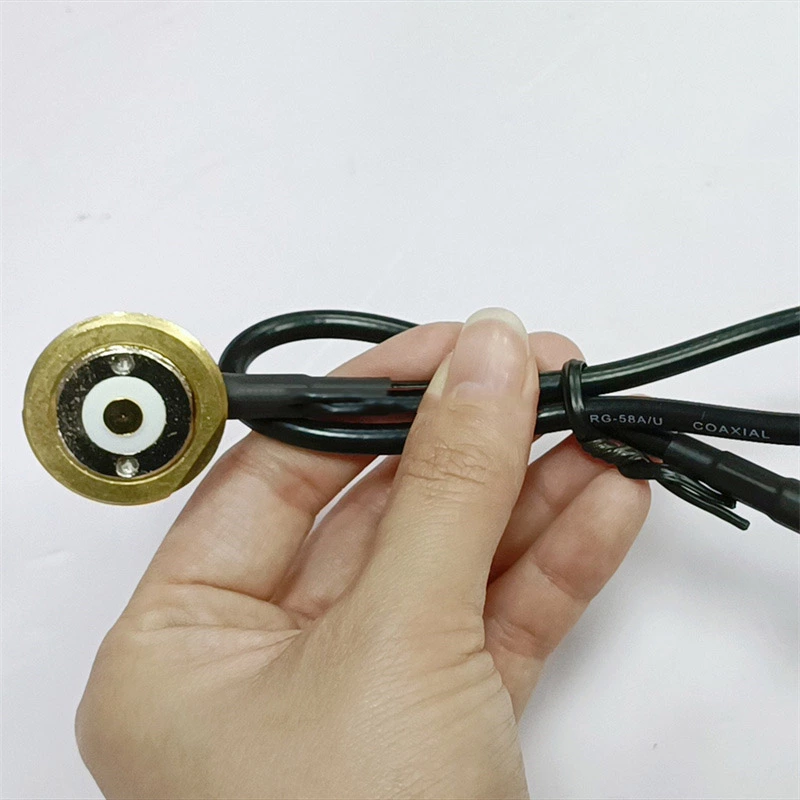

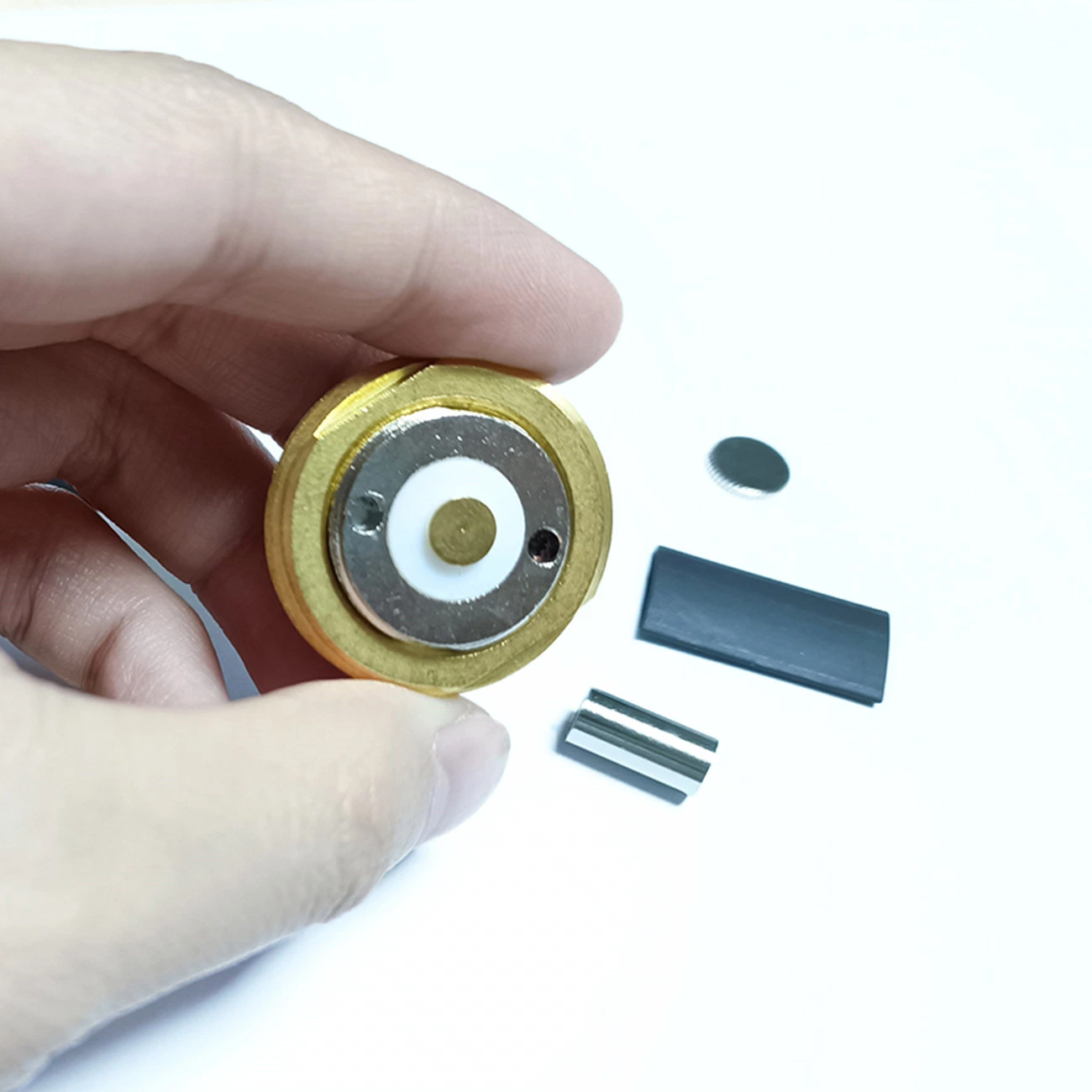

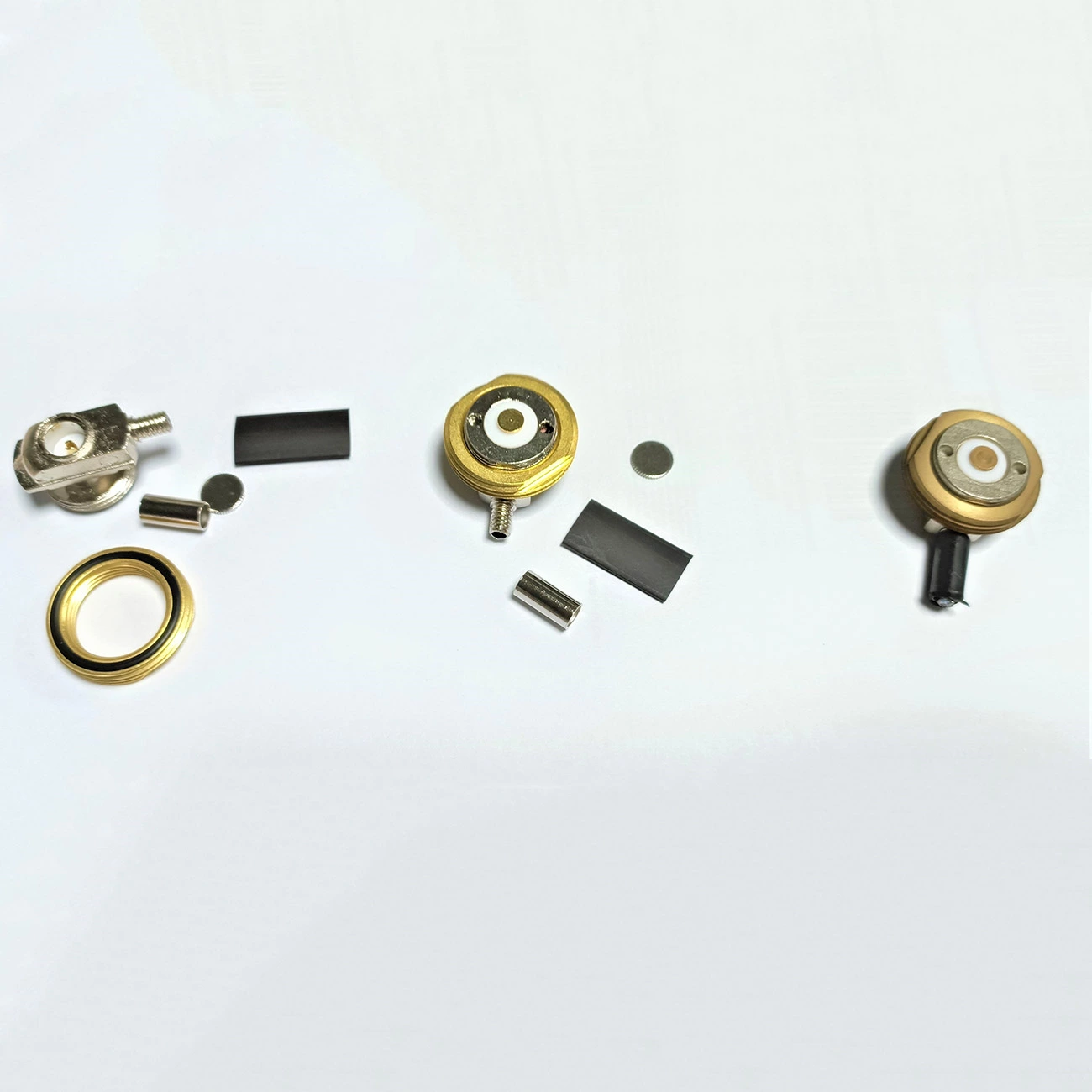

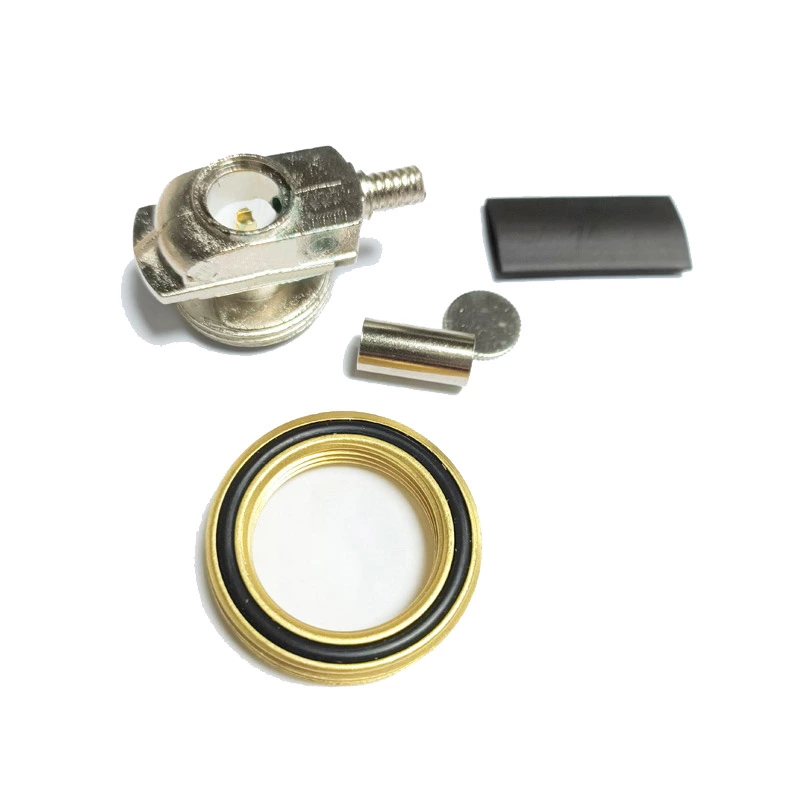

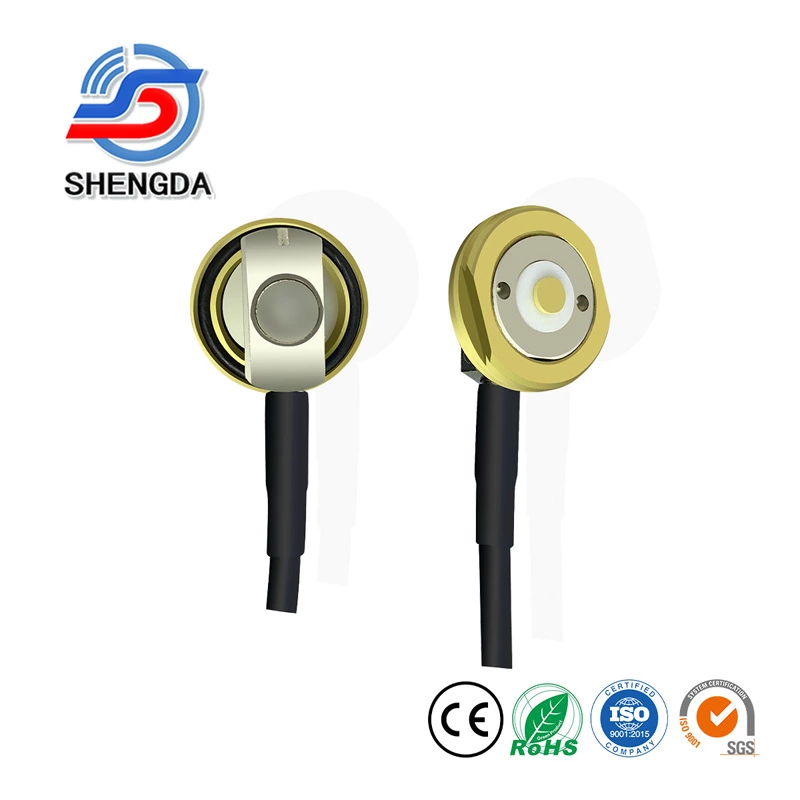

NMO Right Angle 3/4'' Mount Alloyed Low Profile Permanent High Frequency 0 to 6 GHz Crimp Connector Plug for RG58
- Model No.
- NC1-Alloyed
- Type
- NMO Alloyed Connector
- Place of Origin
- China
- Connector
- NMO
- Cable Type
- RG58 Cable
- Color
- Black
- Material
- Barss
Characteristic

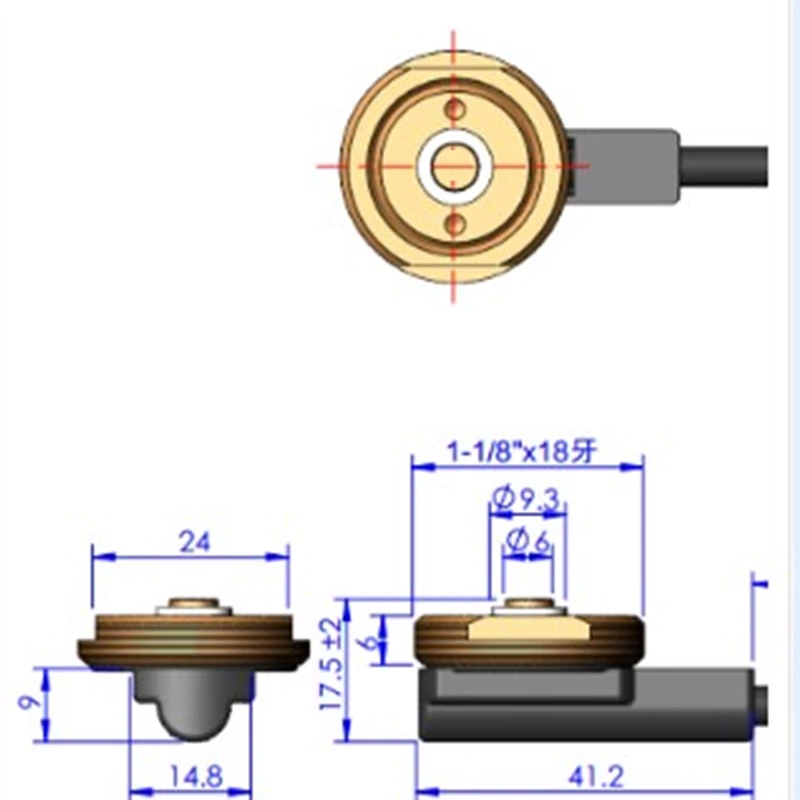

Made of high-strength alloy, the NMO standard right-angle RF connector is designed for 0-6GHz high-frequency communication systems. Its 3/4-inch (19mm) mounting aperture supports permanent fixed installation, and its low-profile structure (height <15mm) is particularly suitable for space-constrained vehicle or airborne applications.
Core Performance
The connector uses a precision-machined contact interface to maintain excellent RF performance of VSWR ≤ 1.5 in the 6GHz band. The right-angle design effectively reduces cable bending stress, and the crimp interface can quickly complete the termination of RG58 coaxial cable to ensure signal transmission stability. The gold-plated surface treatment provides excellent oxidation resistance and contact reliability. The operating temperature range is -40°C to +85°C, meeting the needs of long-term use in harsh environments.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

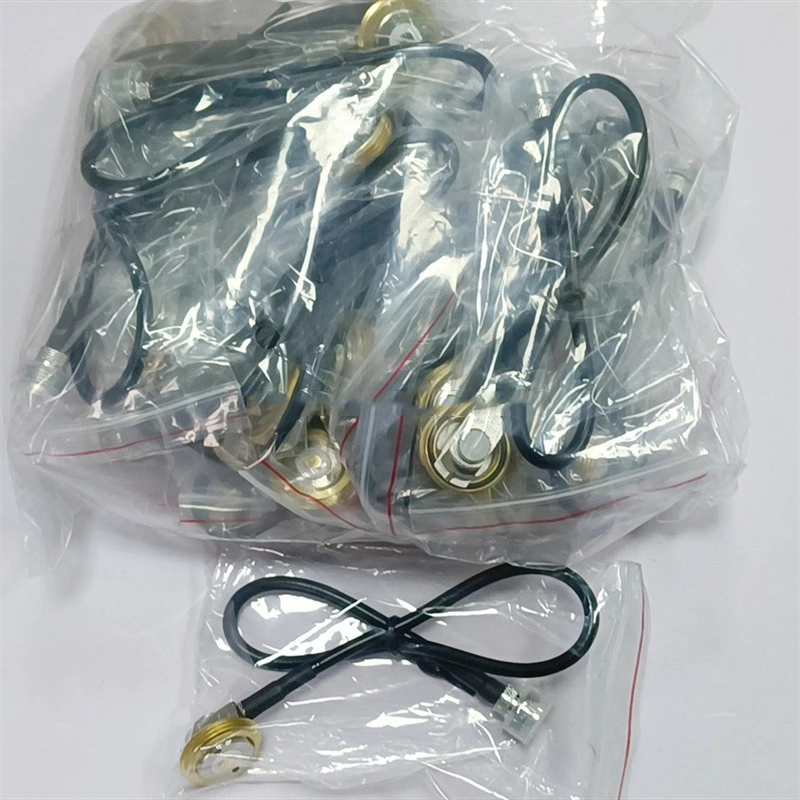

- part of antenna is individual packed in PE/PVC Bag.

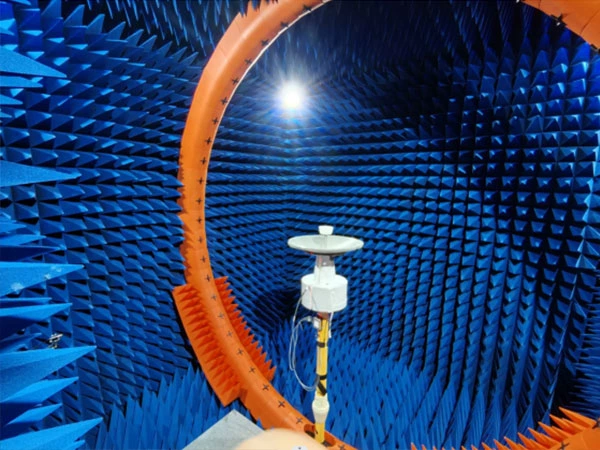

- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
