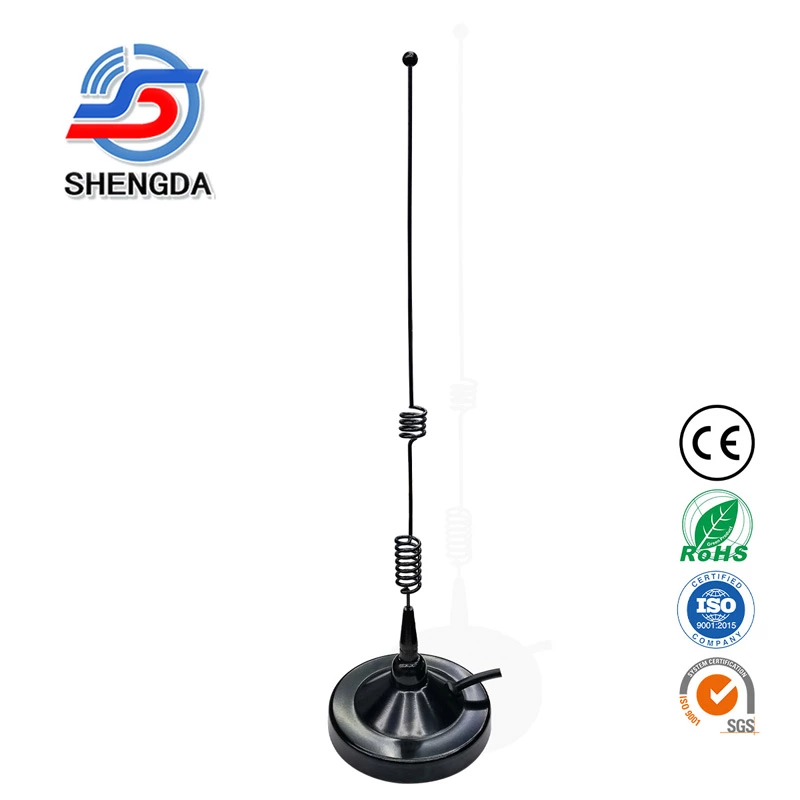

GSM Communication Antenna 90mm Magnetic Base Mount 4g Antenna 900/1800mhz Router 5g Wifi Antenna
- Model No.
- 90-GSM-7
- Type
- Mobile Antenna
- Place of Origin
- China
- Frequency Range
- 900/1800MHz
- Gain
- 7.5dBi
- Connector
- SMA
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Length
- 370cm
- Material
- Fiberglass,stainless steel
Characteristic
This high-quality, omnidirectional 900-1800 MHz GSM antenna is ideal for 900MHz ISM and GSM multipoint mobile applications, including service vehicles, public transportation, law enforcement vehicles, mining and construction vehicles, and many other commercial and industrial applications where mobility and wide coverage are required.
Core Performance

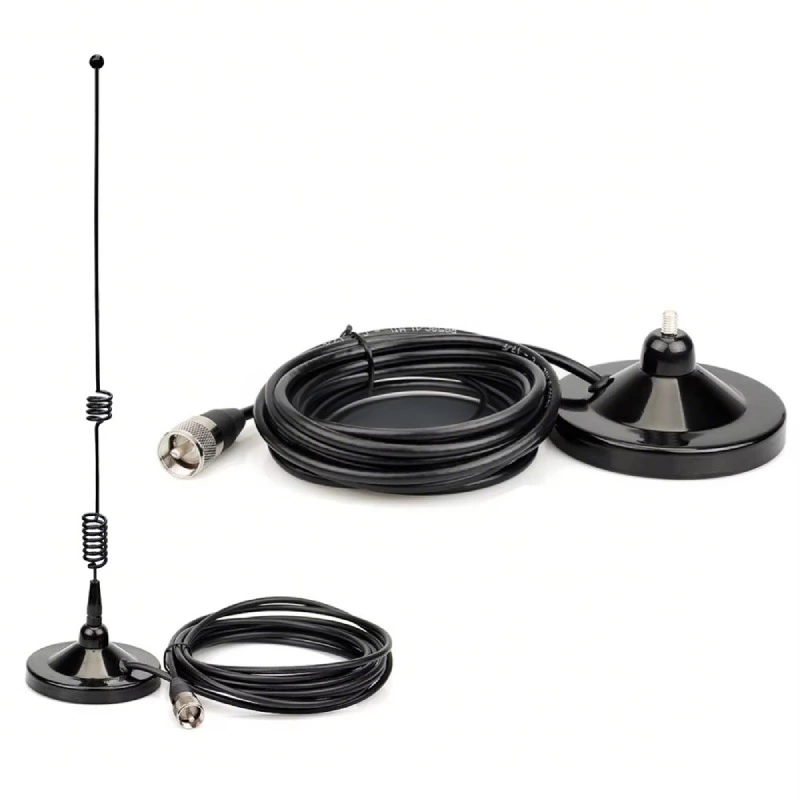

The antenna is also compatible with 900MHz wireless LAN and cellular systems, as well as RFID. The magnetic base allows it to be attached to a vehicle or other metal surface, or placed on a tabletop or shelf.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

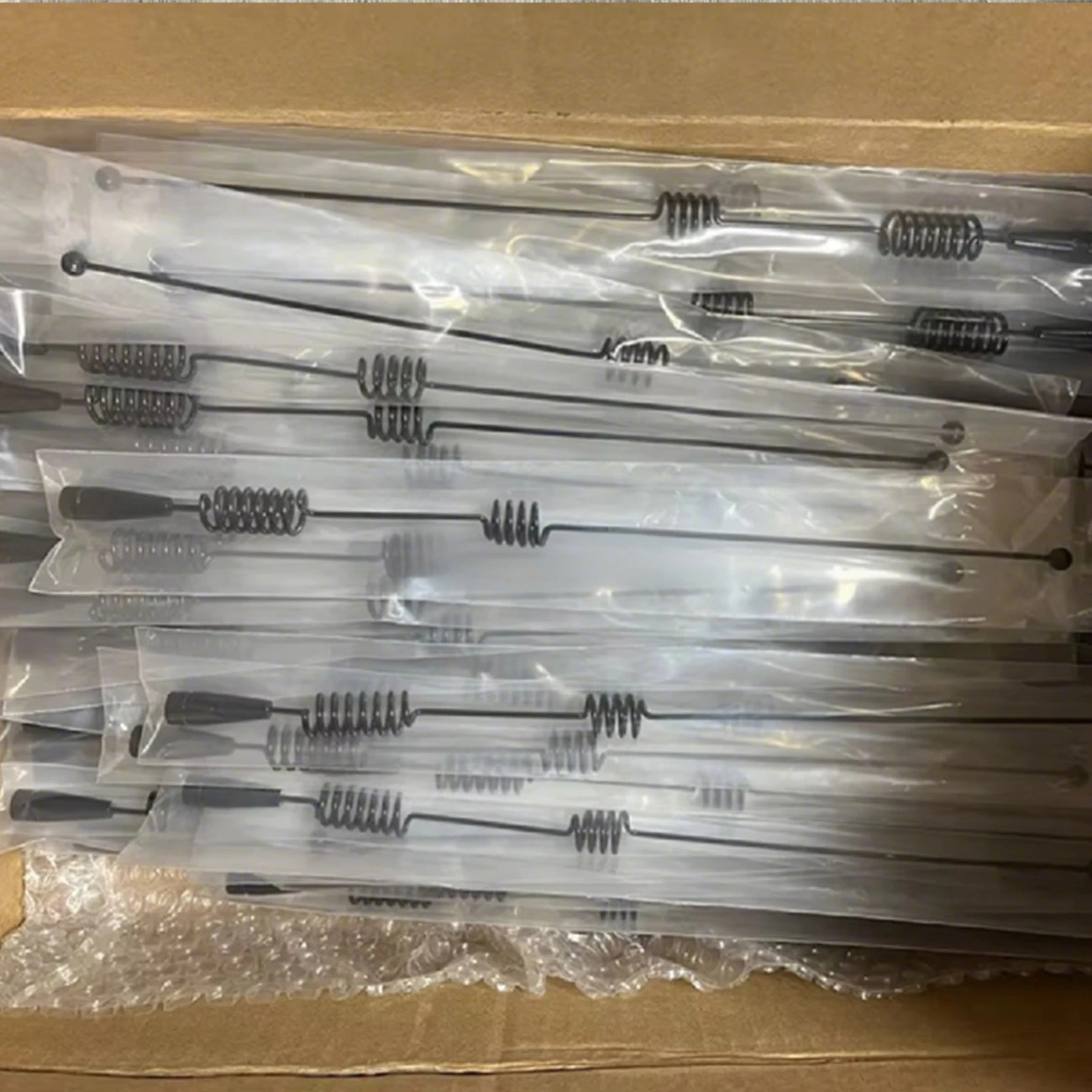

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
