Whip Boat Communication Antenna With L Bracket Cb Omni Marine Radio Antenna 24.5-29.5mhz Stainless Steel
- Model No.
- MRF27INOX
- Type
- Marine Antenna
- Place of Origin
- China
- Frequency Range
- 24.5-29.5MHz
- Gain
- 3dBi

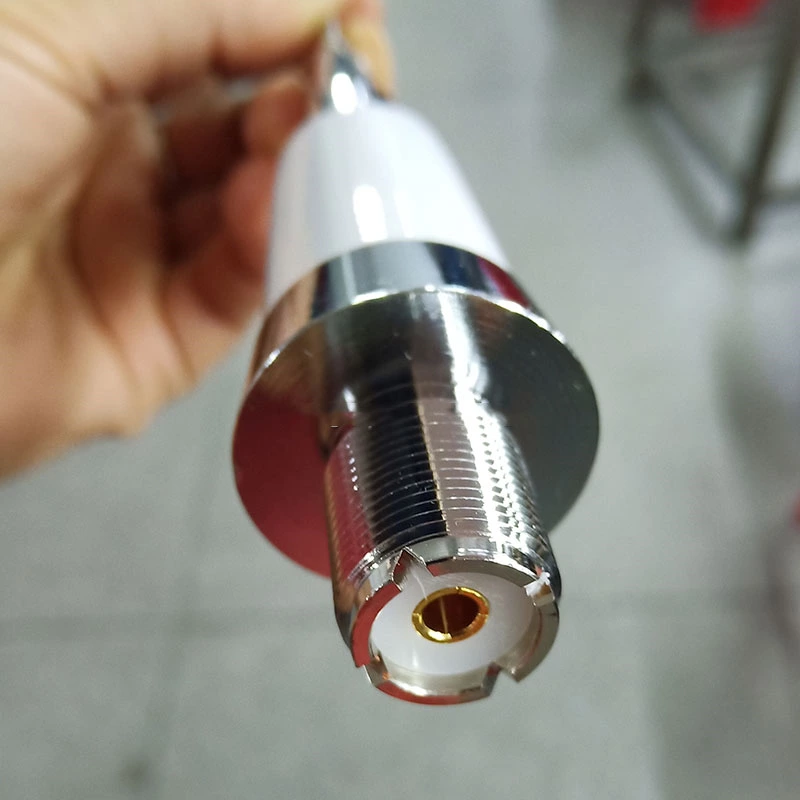

- Connector
- SO239

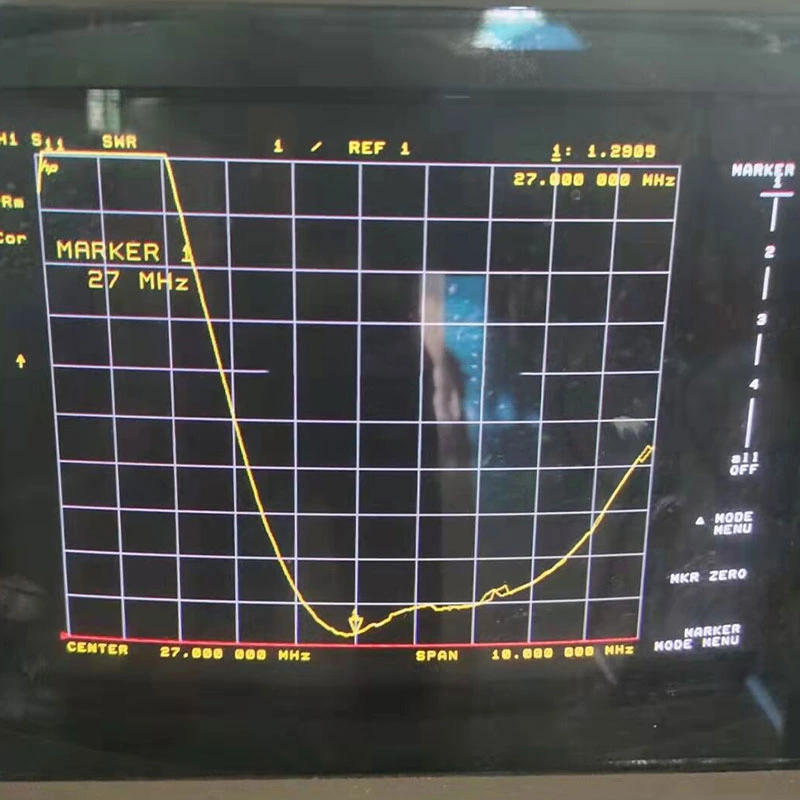

- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Length
- 1120mm
- Material
- stainless steel,fiberglass
Characteristic
- Marine antenna, Mono-band- Unity-gain, Omnidirectional
- Designed to work without Ground Plane
- Protection from static discharges DC-Ground
- Perfect protection against the worst weather conditions

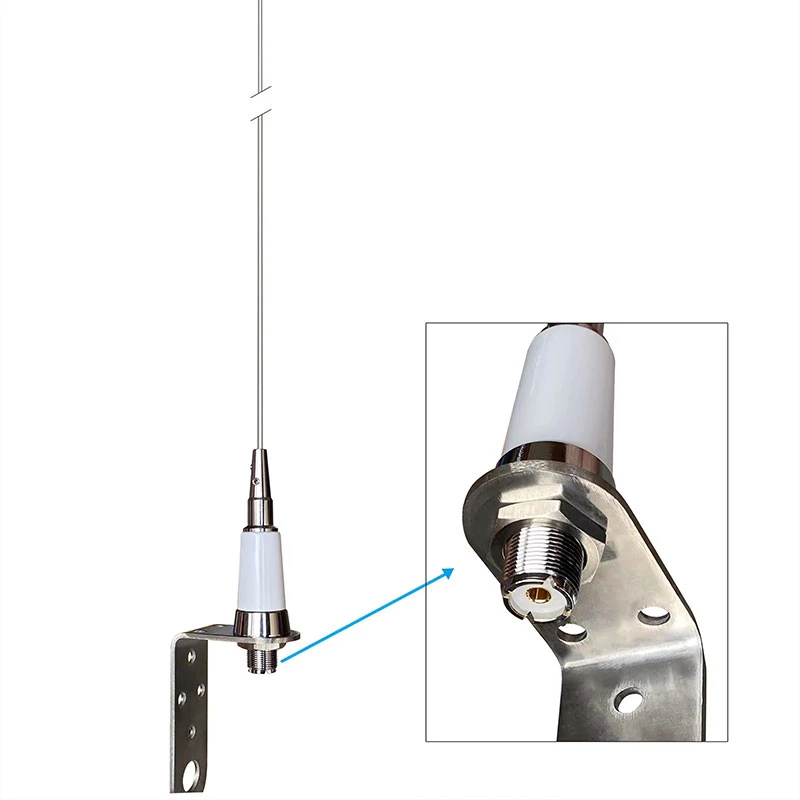

- Provided with stainless steel bracket for an easy installation on mast top
- Stainless steel hardware
Core Performance
• CB & 10m Marine antennas
• Geschikt om te werken waar geen metalen grondoppervlak voorhanden is (geen massa nodig)
• Geschikt om gebruikt te worden bij slechte weersomstanigheden
• Beveiligd tegen statische ontladingen
• Geleverd met roestvrije spiegelklem (niet zoals op afbeelding)
• Roestvrij staal
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

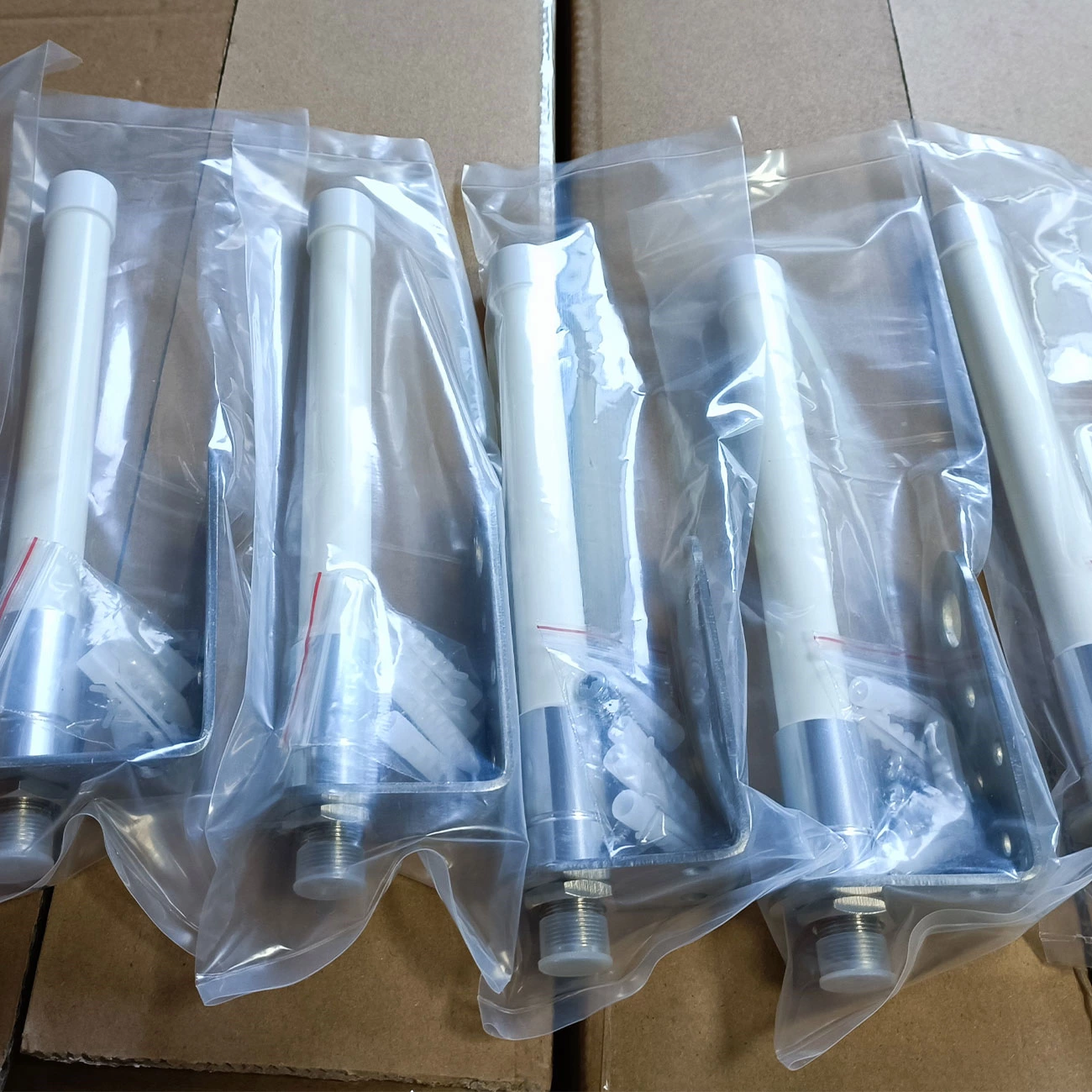

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
