VHF Marine Antenna MRF110V 156-163MHz With/Without ABS Mounting
- Model No.
- MRF110-V
- Type
- Marine Antenna
- Place of Origin
- China
- Frequency Range
- 156-163MHz
- Gain
- 3.5dBi

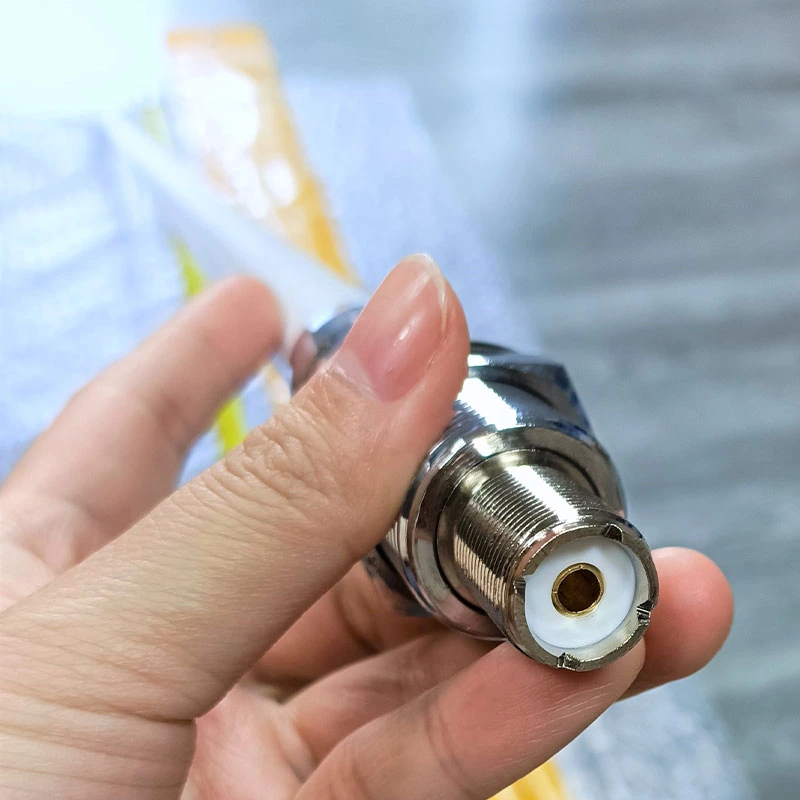

- Connector
- UHF-Male(PL259)
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Length
- 110cm
- Material
- Fiberglass
Characteristic

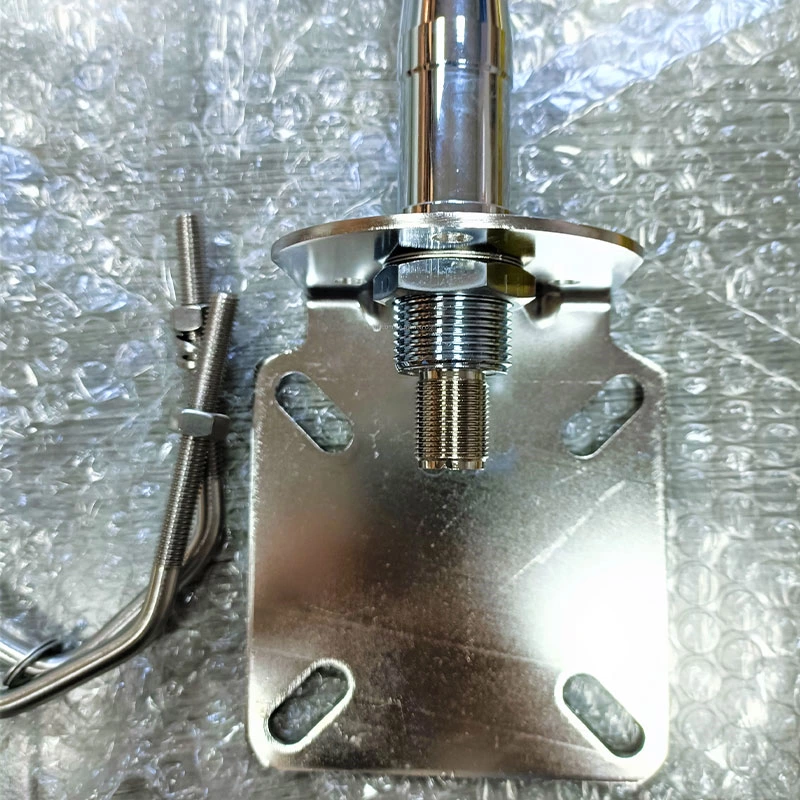

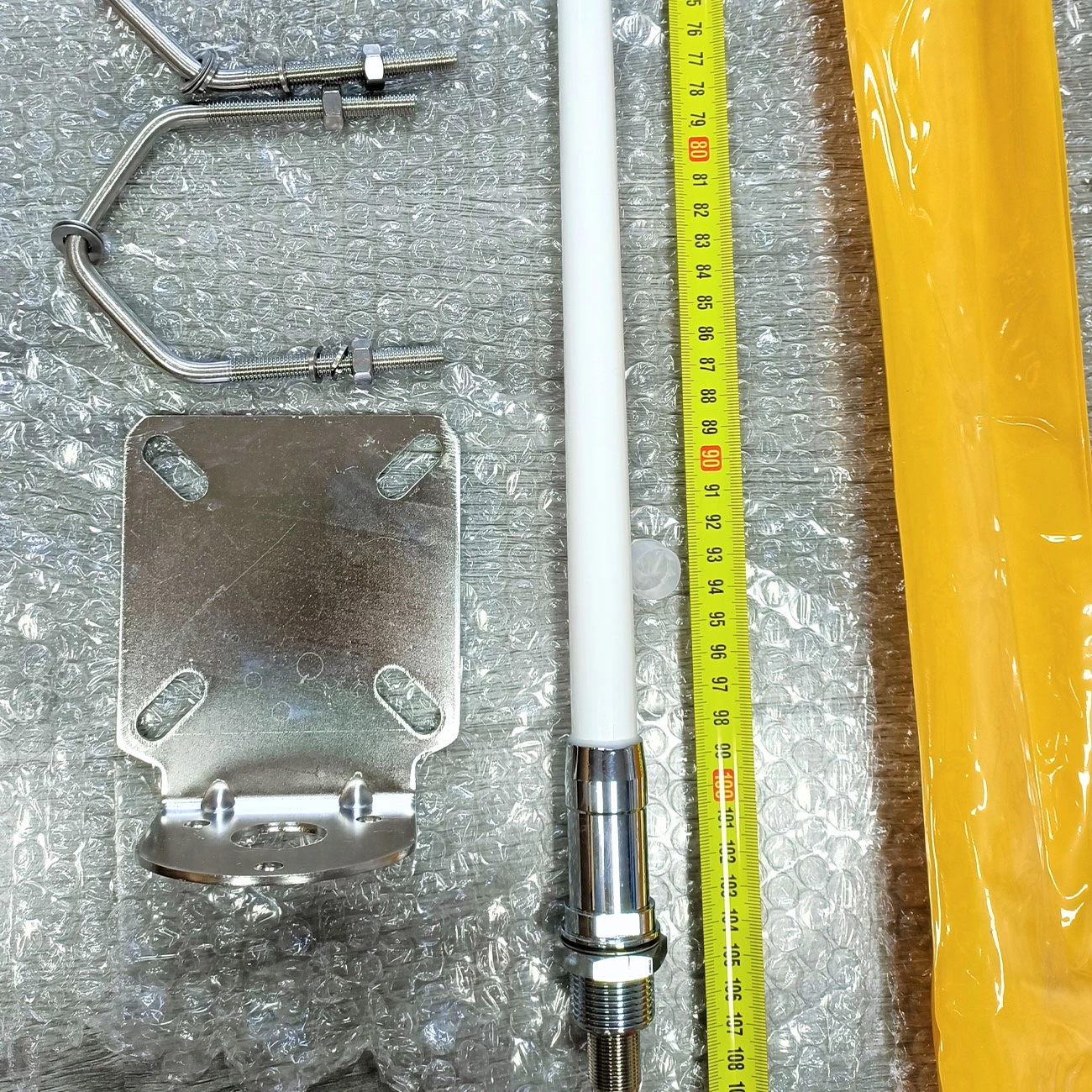

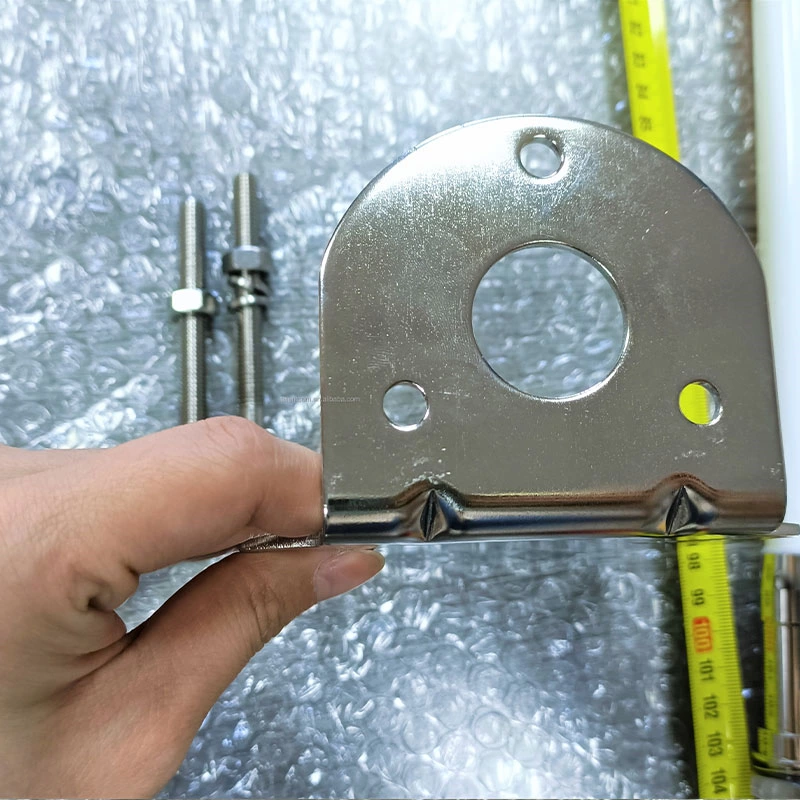

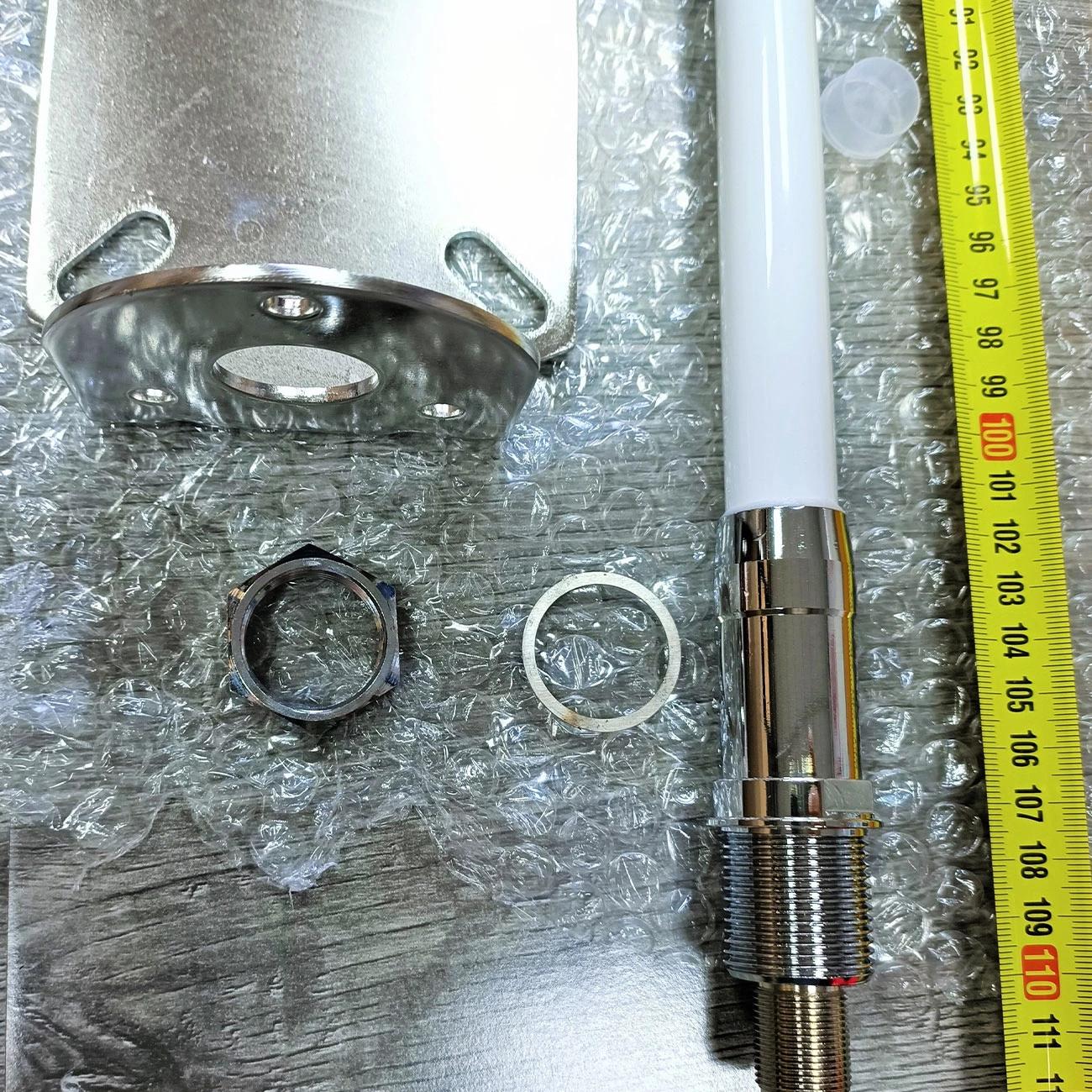

The 110cm antenna is suitable for all kinds of inland vessels: pleasure boats, workboats, yachts, motorboats. The operating frequency range is 156-163MHz with a signal gain of 3.5 dBi. The antenna is mounted on the mast via a metal bracket and connected to the radio station via a VHF connector. .
Core Performance

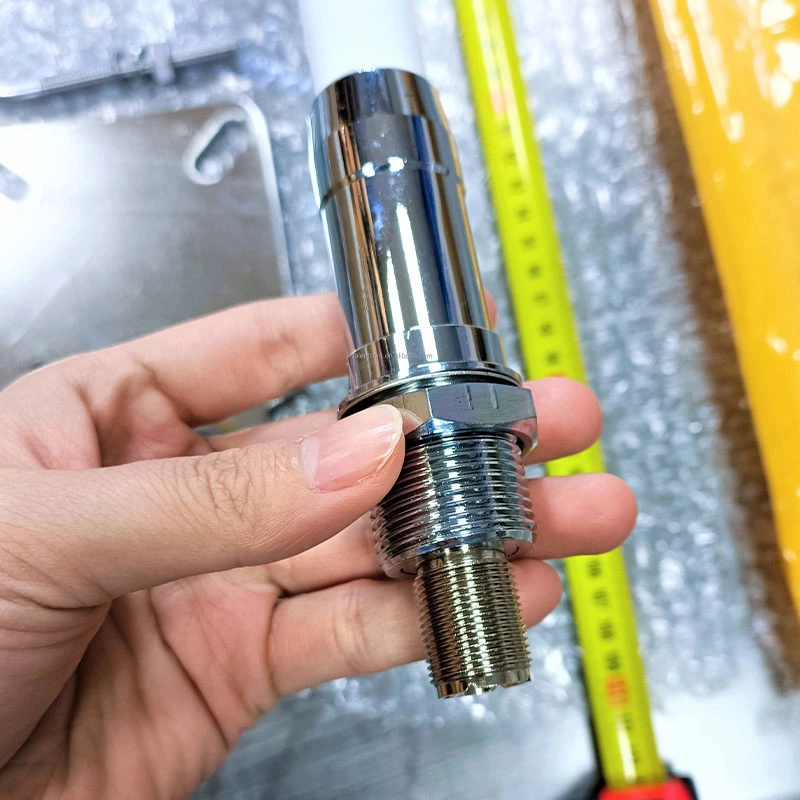

The housing is made of fiberglass, UV-resistant, and the base is made of stainless steel. The connecting cable is not included in the scope of delivery and can be ordered separately.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.
- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
