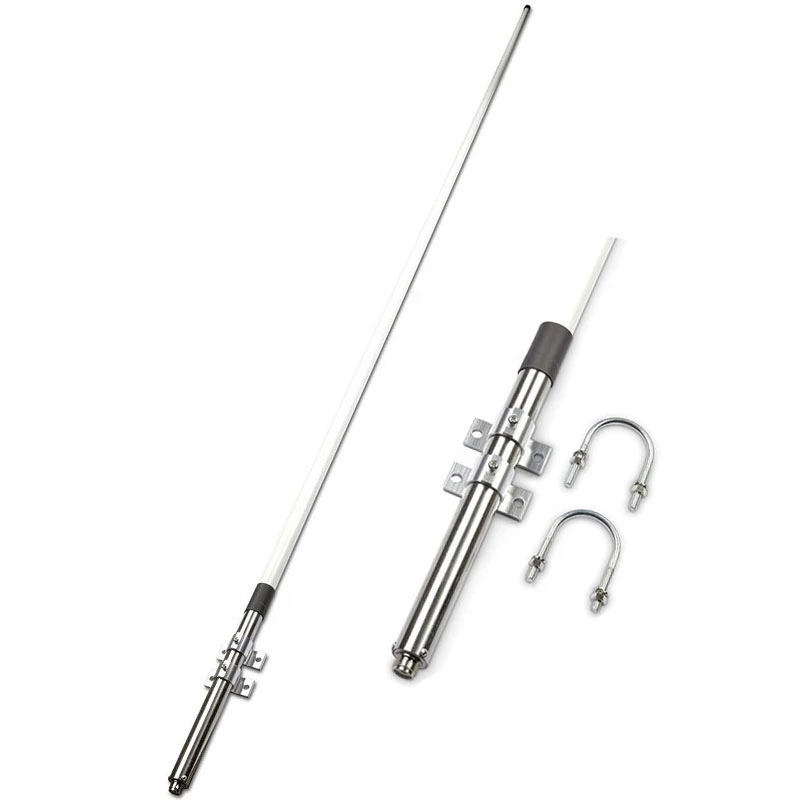

Boat Base Antenna With Bracket 156-163 Mhz Vhf 2.4meter Fiberglass Marine Use Fishing
- Model No.
- MRF240C
- Type
- Marine Antenna
- Place of Origin
- China
- Frequency Range
- 156-163MHz
- Gain
- 10dBi
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Length
- 2400mm
- Material
- Fiberglass, alloy
Characteristic
Low standing wave ratio, high gainStrong corrosion resistance, adaptable to harsh environments
DC grounding design

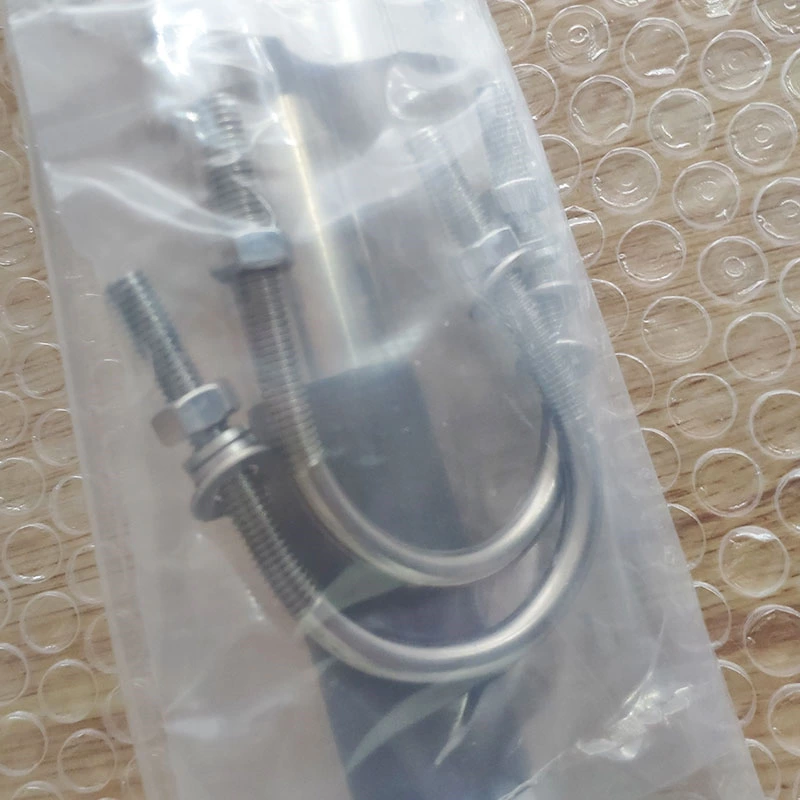

Pole mounting kit provided
Core Performance
This is a high quality fiberglass omnidirectional antenna for both offshore and land solutions. Suitable for both track and mast mounting. This antenna is made of high quality materials to prevent electrochemical corrosion. The radiating element is made of copper. This antenna is manufactured using crimping technology which makes the antenna 4-5 times stronger. This antenna is as rugged as all other SD antenna products and is able to withstand the harsh environmental conditions at sea and on land.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

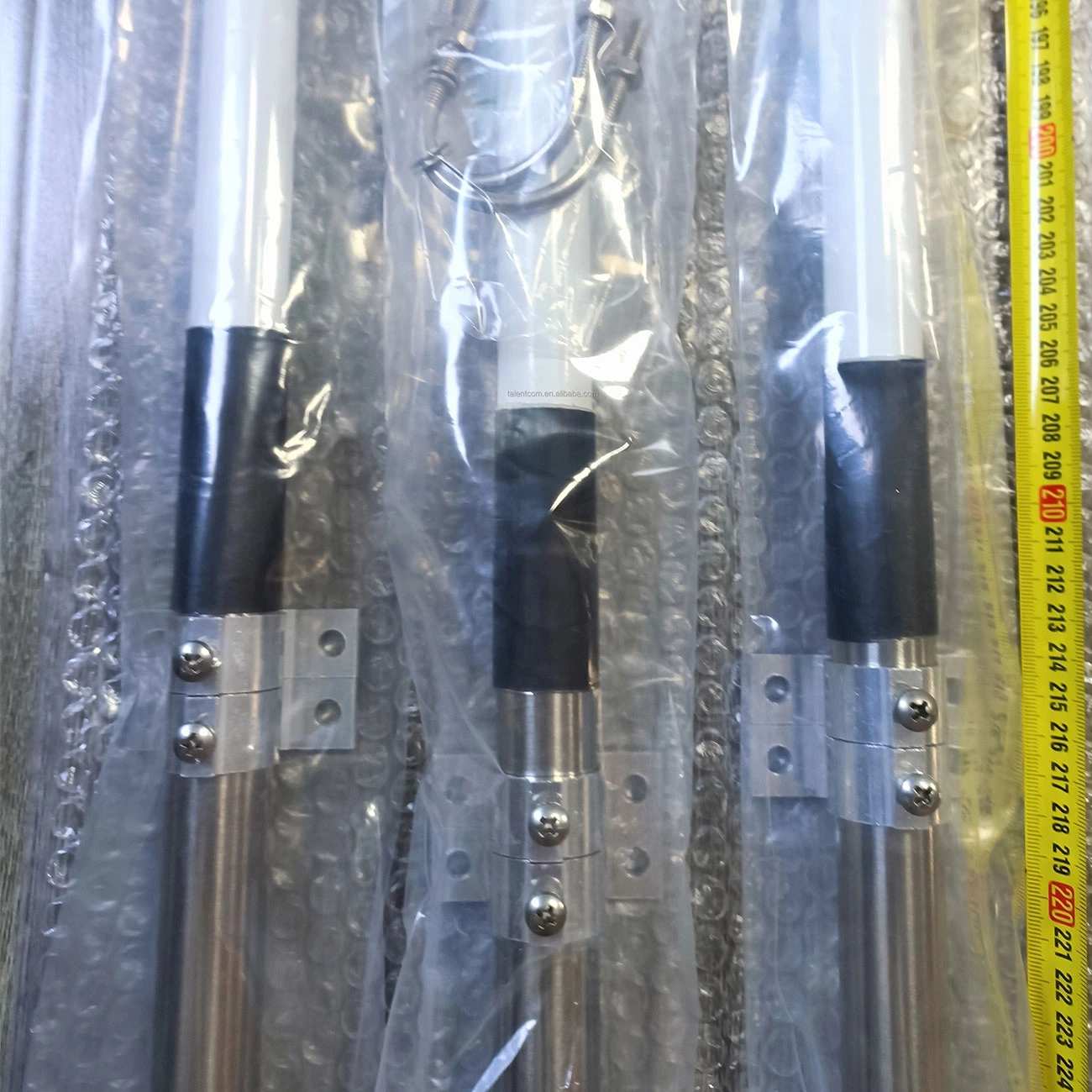

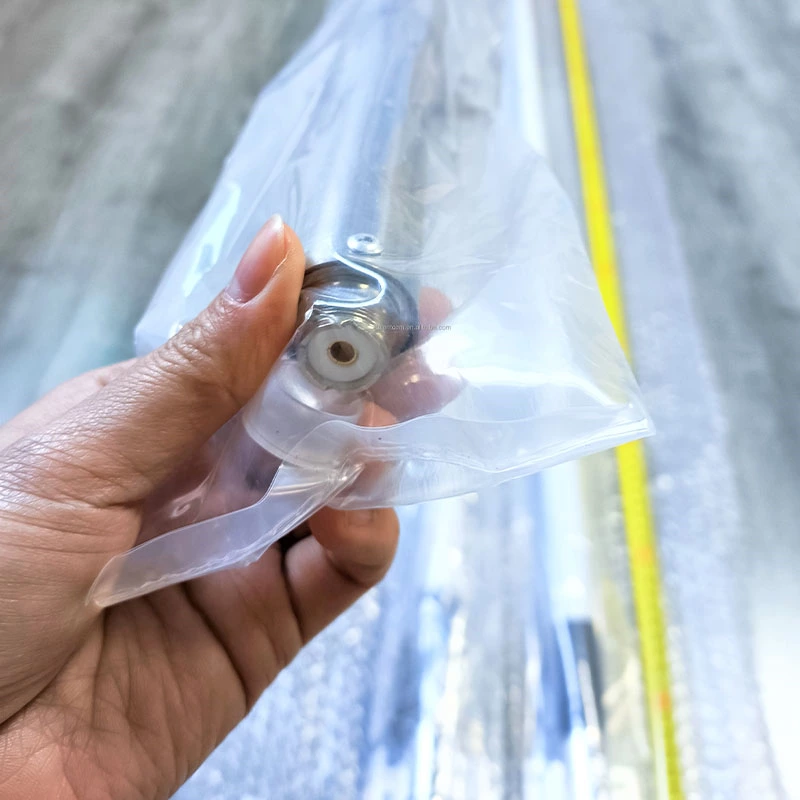

- part of antenna is individual packed in PE/PVC Bag.

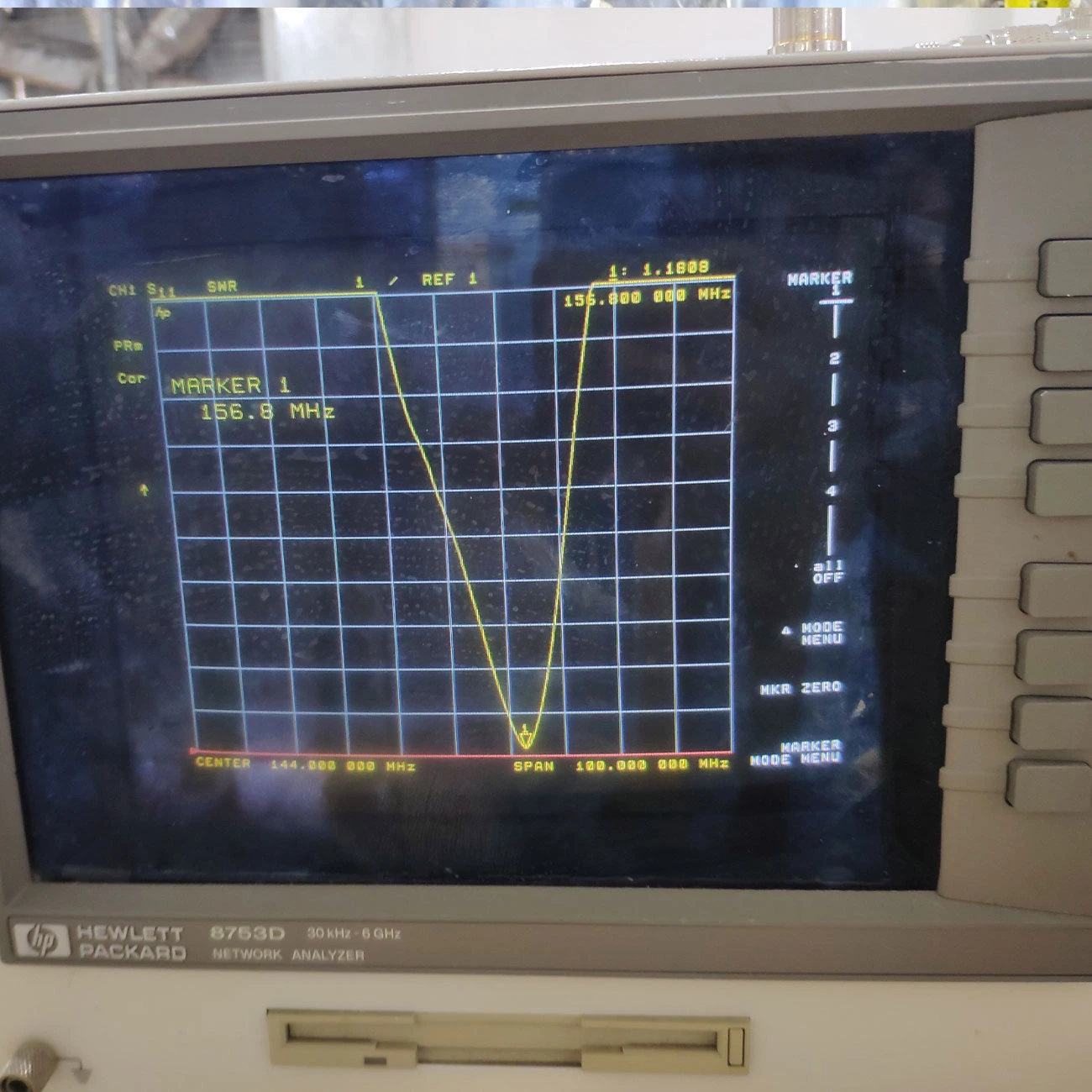

- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
