Marine Antenna With Nylon Marine Base Mount 2.4m Marine Antenna Vhf 156-163mhz 6.5db Gain
- Model No.
- MRF240V
- Type
- Marine Antenna
- Place of Origin
- China
- Frequency Range
- 156-163MHz
- Gain
- 6.5dBi
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Length
- 2400±10 mm
- Material
- Fiberglass
Characteristic
8ft classic VHF maritime band 6dB gain antenna.End-fed antenna with matching stub.
Economical and lightweight self-supporting antenna,
Suitable for occasions where coverage is not required to achieve good communication effect.
High-quality copper cable components ensure good coverage and efficiency.
Nylon ferrule.
Core Performance
Classic Series antennas combine value and performance with durability to keep you connected at sea for your essential communications needs.
Brass and copper elements provide standard range and reception.
Chrome-plated brass or nylon ferrules.
Sleek, durable high-gloss white/fiberglass finish resists yellowing.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

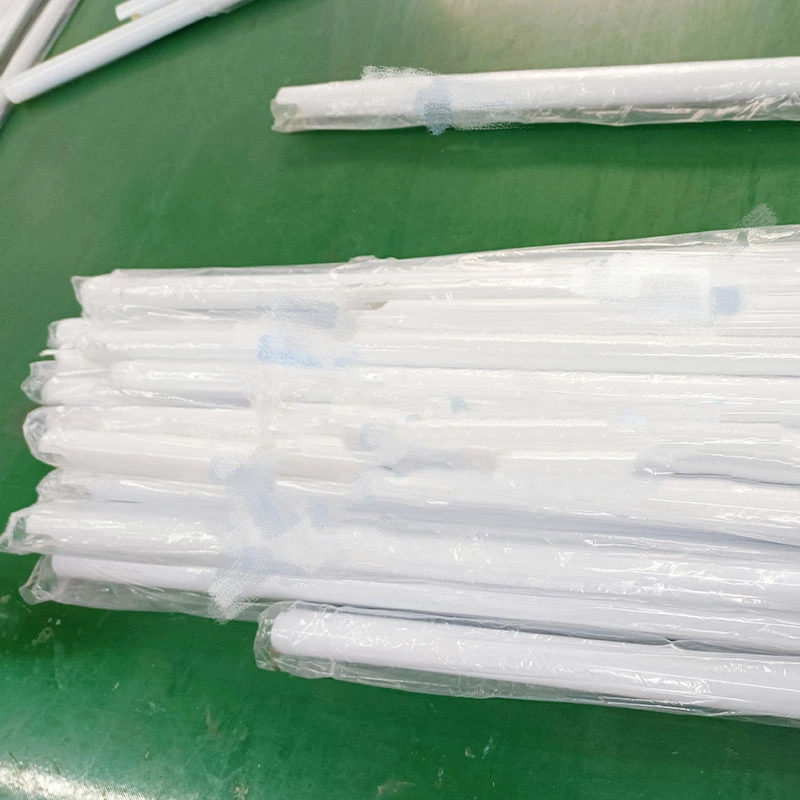

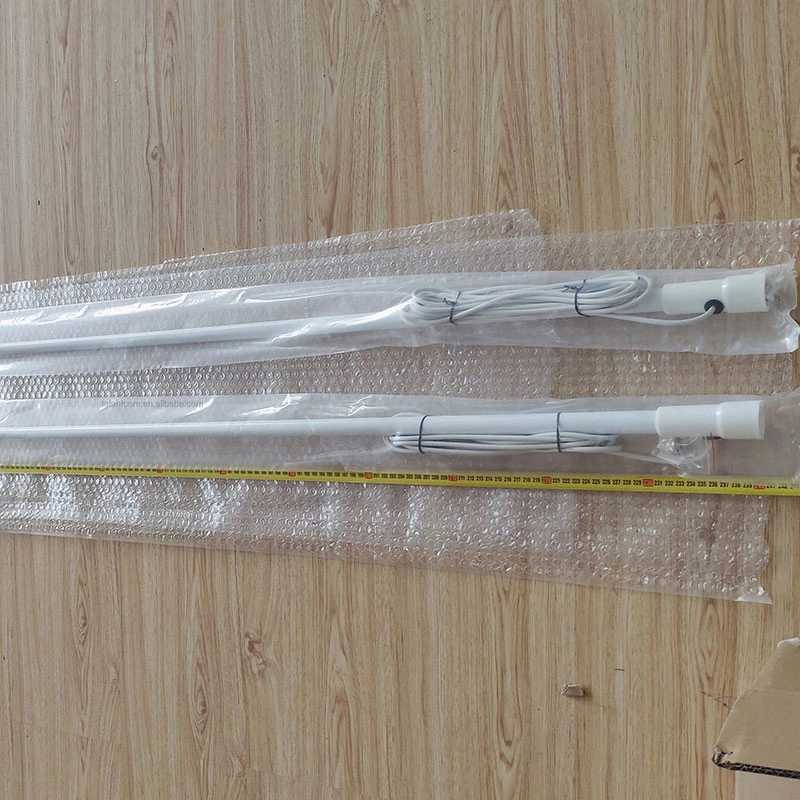

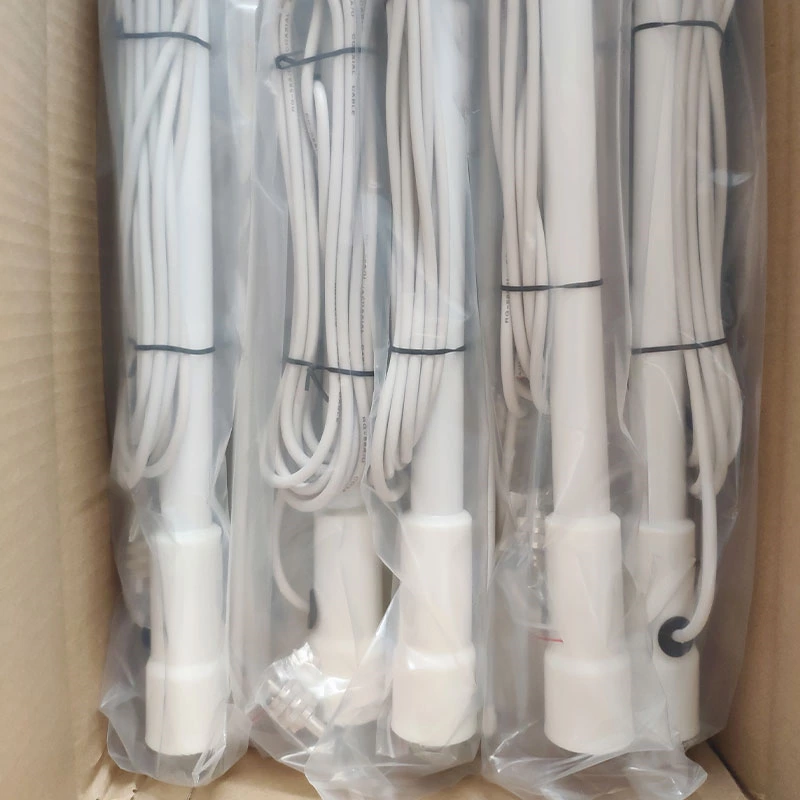

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
