S0239 Signal Magnetic Base Mount with RG58 Cable Car Antenna Ground Plane Kit Mobile Vehicle Antenna Enhanced
- Model No.
- SD90B-DW
- Type
- Magnet Base
- Place of Origin
- China
- Connector
- PL259/customized
- Cable Type
- 4m RG58
- Color
- Black
- Material
- Stainless Steel
Characteristic
The innovative ground grid system includes:

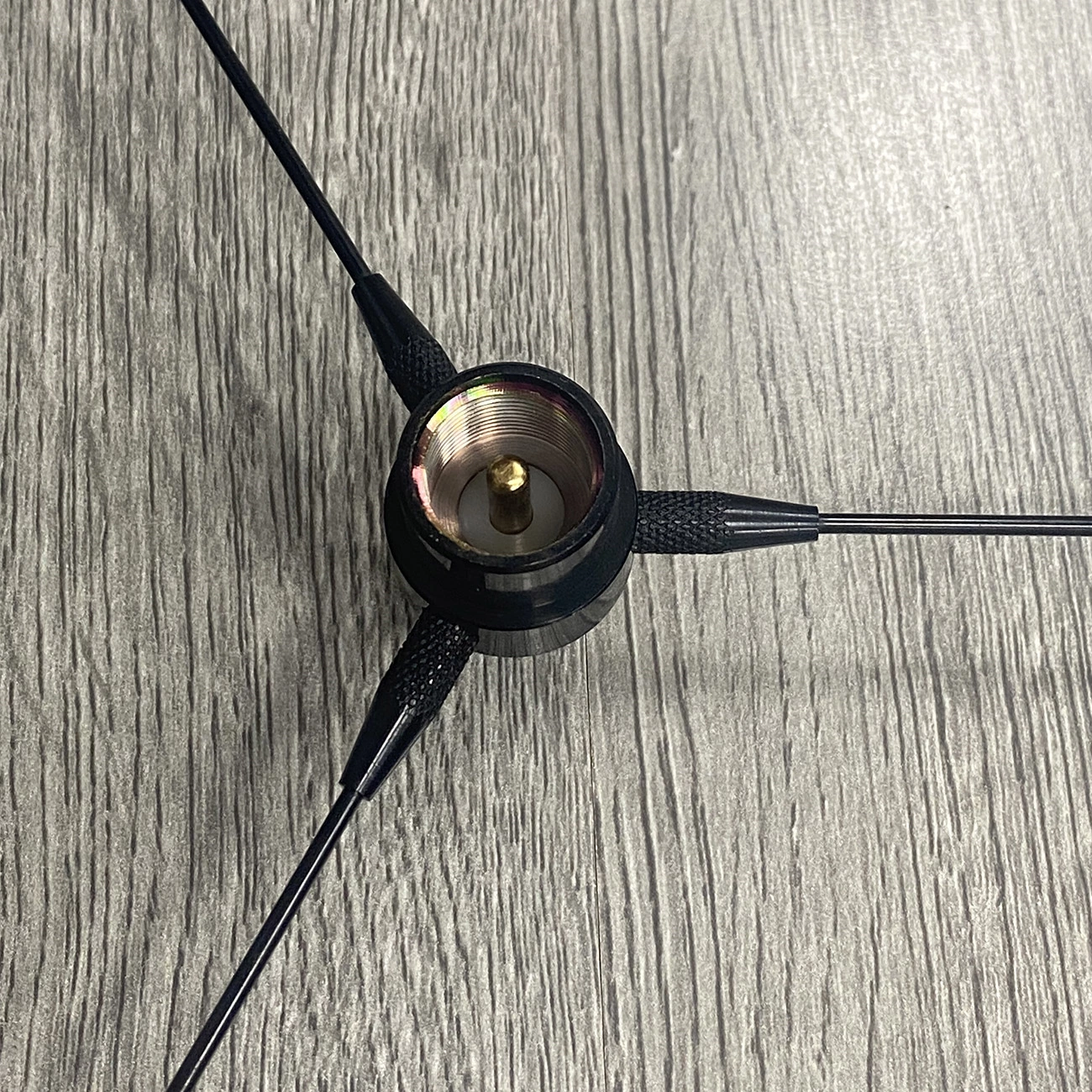

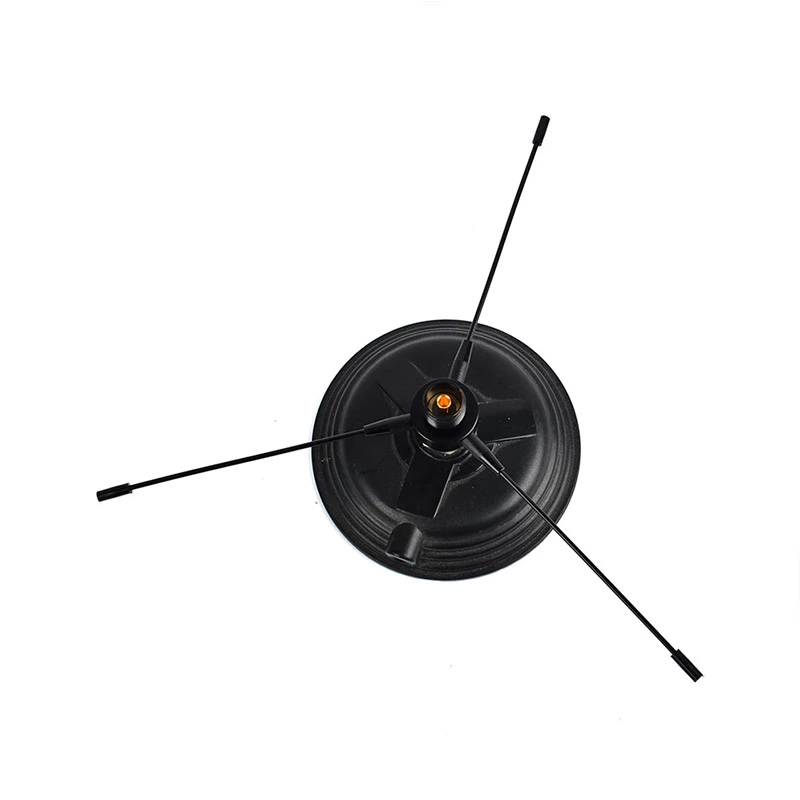

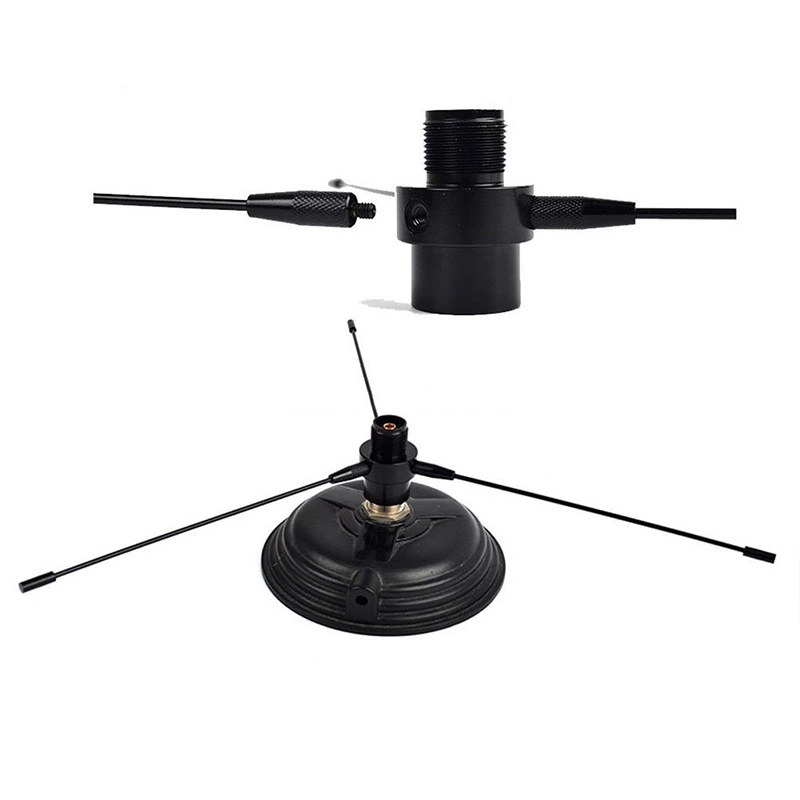

Foldable four-arm radiator (each arm has a length of λ/4)
304 stainless steel spring contact array
Impedance matching and compensation circuitry
Effectively improves radiation efficiency by 37%, achieving radiation characteristics similar to those of fixed stations in mobile environments.
Core Performance
Mounting System Advantages:
3mm UV-resistant silicone coating on the bottom of the magnet
Integrated cable management channels
Quick-release ground grid connection (5-second deployment)
Passes MIL-STD-810G vibration test standards
IP67 protection rating (continuous immersion in 1 meter of water for 30 minutes)
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

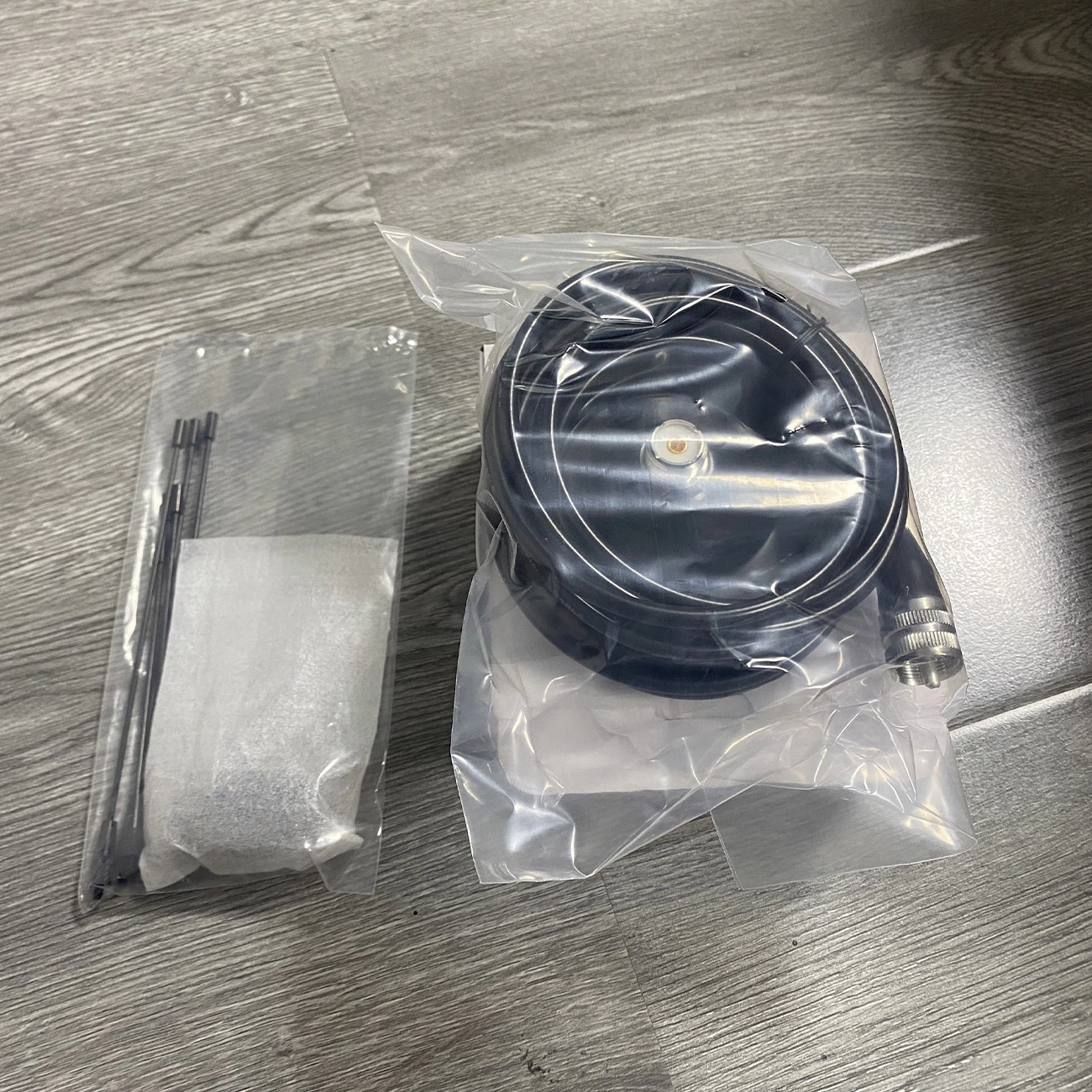

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
