High Precision RTK GNSS GPS Antenna L1 L2 L5 GLONASS Galileo BDS GPS-9 for RTK Receiver BD970 BD992 BD982
- Model No.
- SDGPS-9
- Type
- Combination Antenna
- Place of Origin
- China
- Frequency Range
- 1164MHZ~1300MHZ;1525MHZ~1621MHZ
- Gain
- 40±2dBi

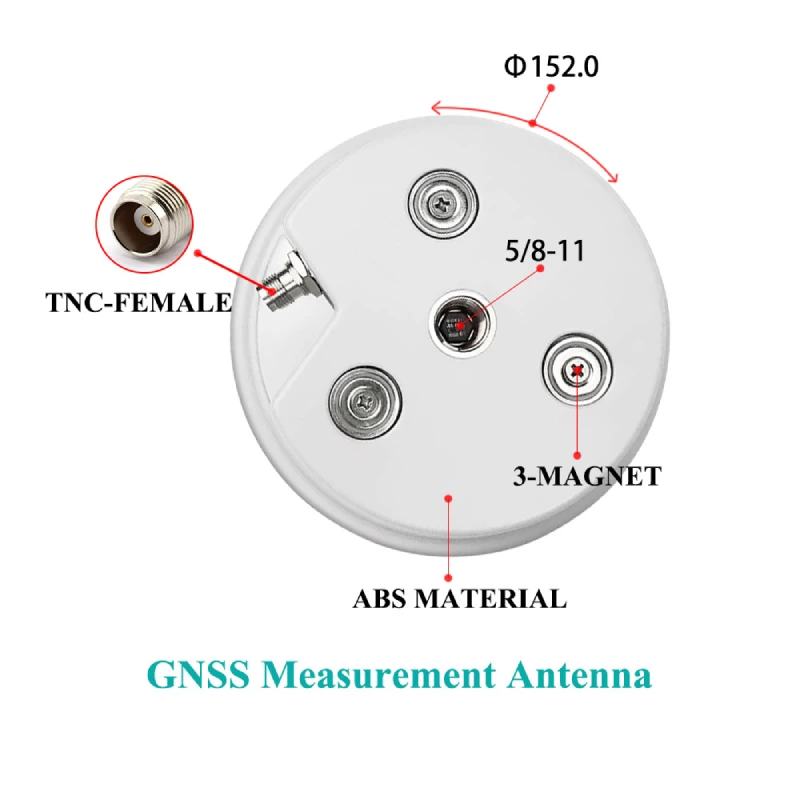

- Connector
- TNC-Female
- V.S.W.R
- <1.5
- Impedance
- 50 Ohm
- Accept OEM
- yes
- Length
- Dia 152*68mm
- Material
- ABS
Technical Highlights:
This high-precision RTK GNSS GPS antenna features a full-band design, supporting L1/L2/L5 multi-band signal reception and is compatible with major global satellite navigation systems, including BeiDou (BDS), GPS, GLONASS, and Galileo. Equipped with a built-in Trimble BD970/BD992/BD982 high-precision motherboard, it provides centimeter-level real-time kinematic positioning (RTK) solutions for applications such as drone mapping, precision agriculture, and autonomous driving.
Core Performance
Multi-frequency support for all galaxies
Simultaneously receives BeiDou B1/B2/B3, GPS L1/L2/L5, GLONASS G1/G2, and Galileo E1/E5 frequency bands. Dual-frequency ionospheric error correction technology improves positioning accuracy to ±2mm phase center error.
Military-grade anti-interference
The all-aluminum alloy shielding and multi-stage filtering design maintain high tracking sensitivity of -167dBm in complex electromagnetic environments, effectively suppressing external signal interference.
Ultra-fast initialization
Cold start acquisition time is less than 24 seconds, and RTK convergence time is less than 60 seconds. A 40dB low-noise amplifier (LNA) ensures fast stationary solutions even in harsh environments such as building obstructions.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.
- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
