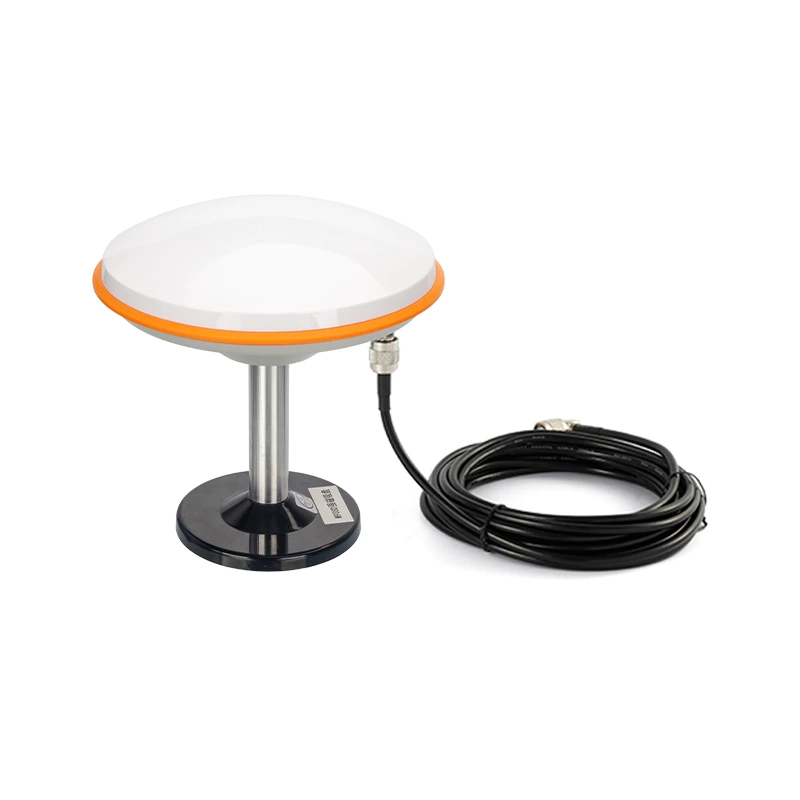

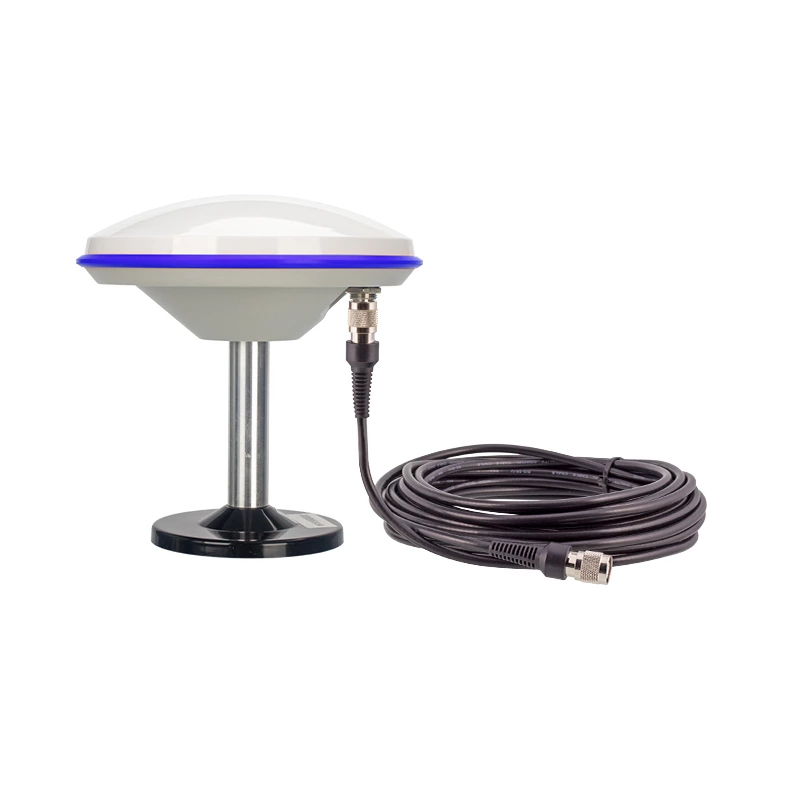

High Precision Agriculture Antenna RTK Receiver GNSS GPS L1/L2/L5 BDS GLONASS L-band Antenna GNSS
- Model No.
- SDGPS-08
- Type
- GPS/GNSS Antenna
- Place of Origin
- China
- Frequency Range
- 1166MHz~1278MHz; 1521MHz-1608MHz
- V.S.W.R
- <1.5
- Impedance
- 50 Ohm
- Accept OEM
- yes
Technical Highlights:
Deep Multi-System Integration: Combined BeiDou-3 B2b frequency band (1207.14MHz) and GPS L5 (1176.45MHz) signals deliver a 60% improvement in efficiency compared to traditional single-frequency devices, reducing fixed solution convergence time to under 8 seconds.

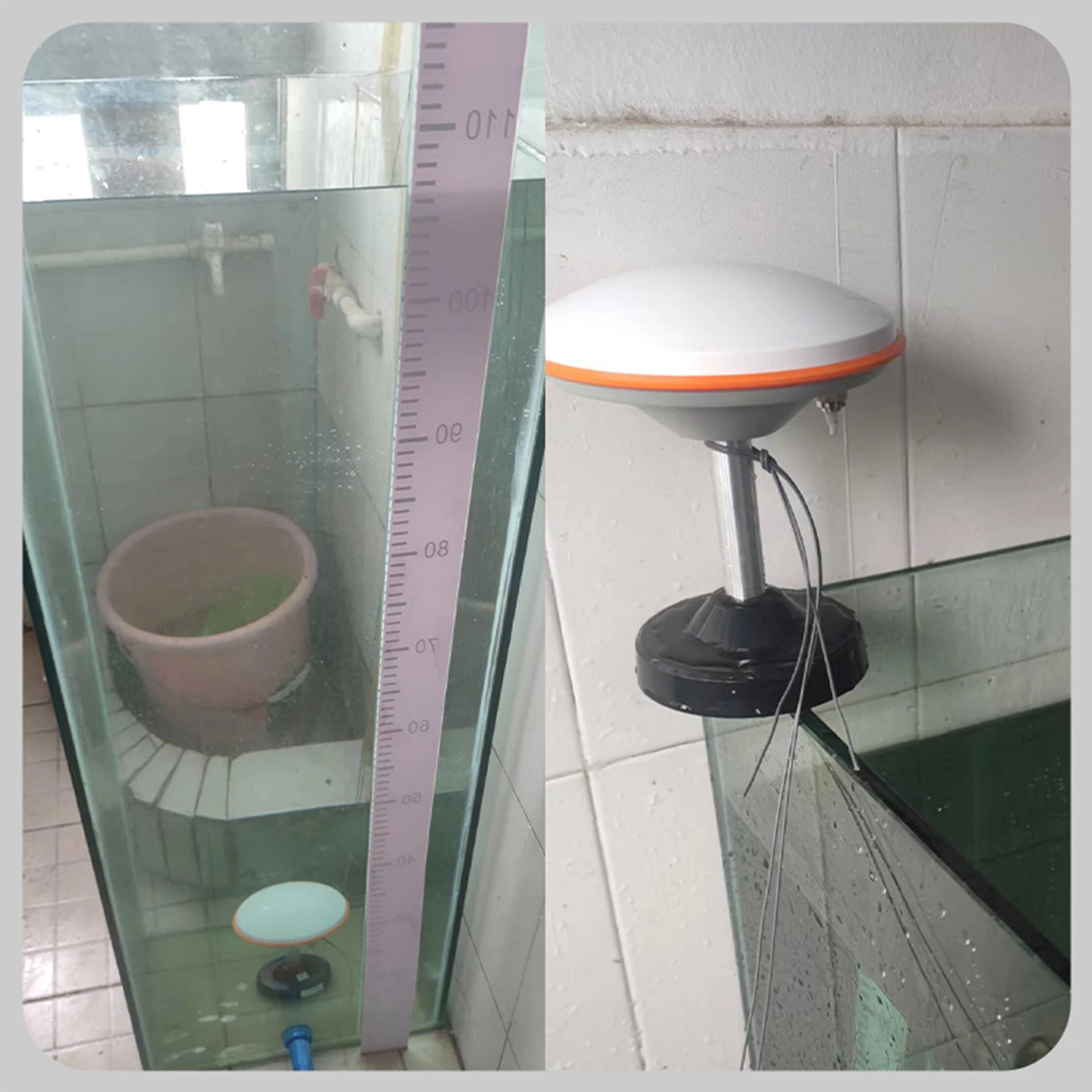

Hardened for Agricultural Environments: The IP68-rated waterproof and dustproof housing, coupled with a wide operating temperature range of -40°C to 85°C, withstands agricultural machinery vibration (5-500Hz/3Grms) and pesticide corrosion.
Intelligent Power Management: Intermittent wake-up technology automatically switches to a 0.2W low-power mode during non-operating hours, enabling 72 hours of continuous field operation on a full charge.
Core Performance
Tracking channels: 564 (supports the full BDS-3 constellation and GPS III signals)
Data update rate: 50Hz (meets the needs of high-speed autonomous driving for agricultural machinery)
Positioning accuracy: 8mm + 1ppm horizontally in RTK mode, 15mm + 1ppm vertically
Anti-interference capability: 30dB adjacent channel rejection, effectively resisting interference from 4G/5G base stations and agricultural machinery motors
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.
- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
