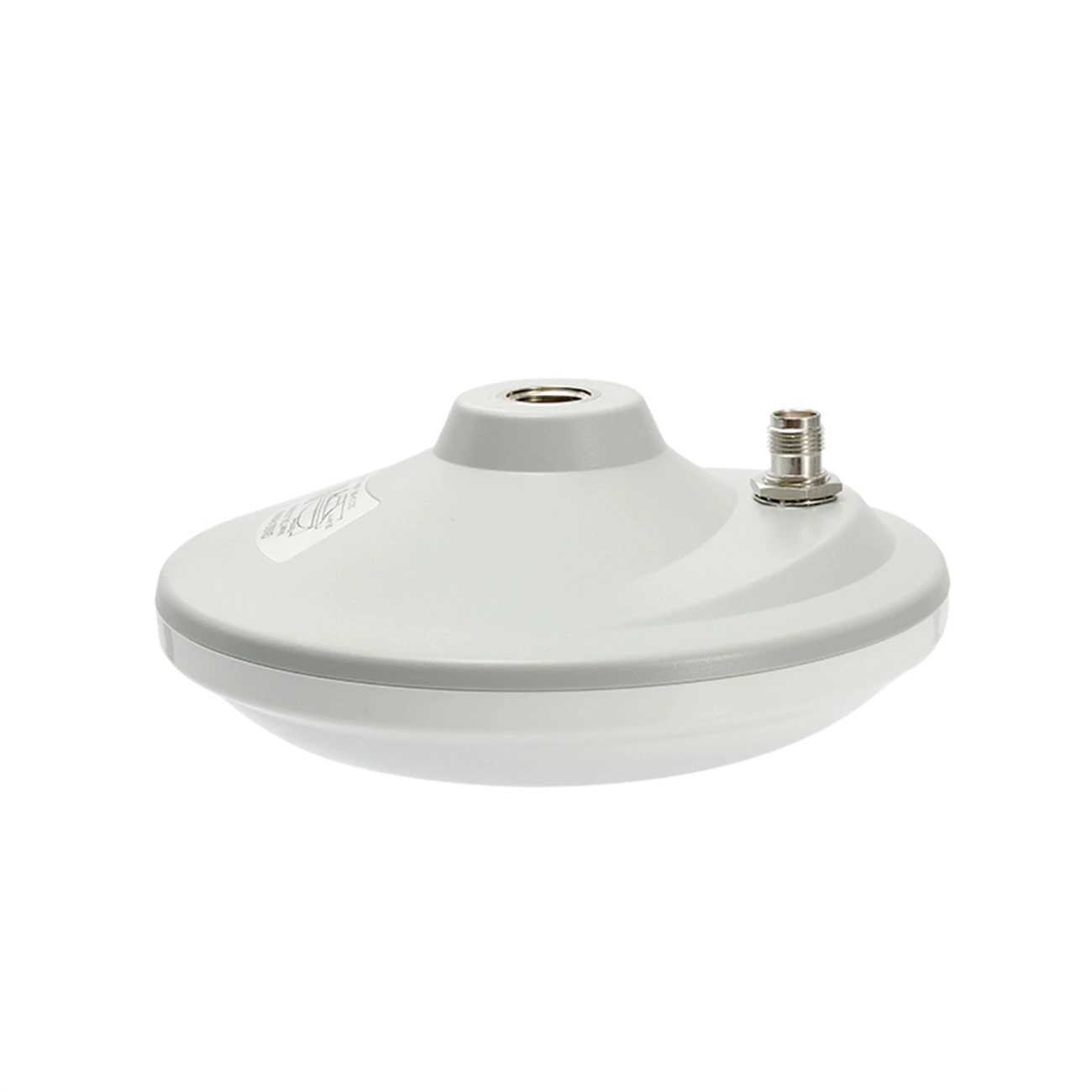

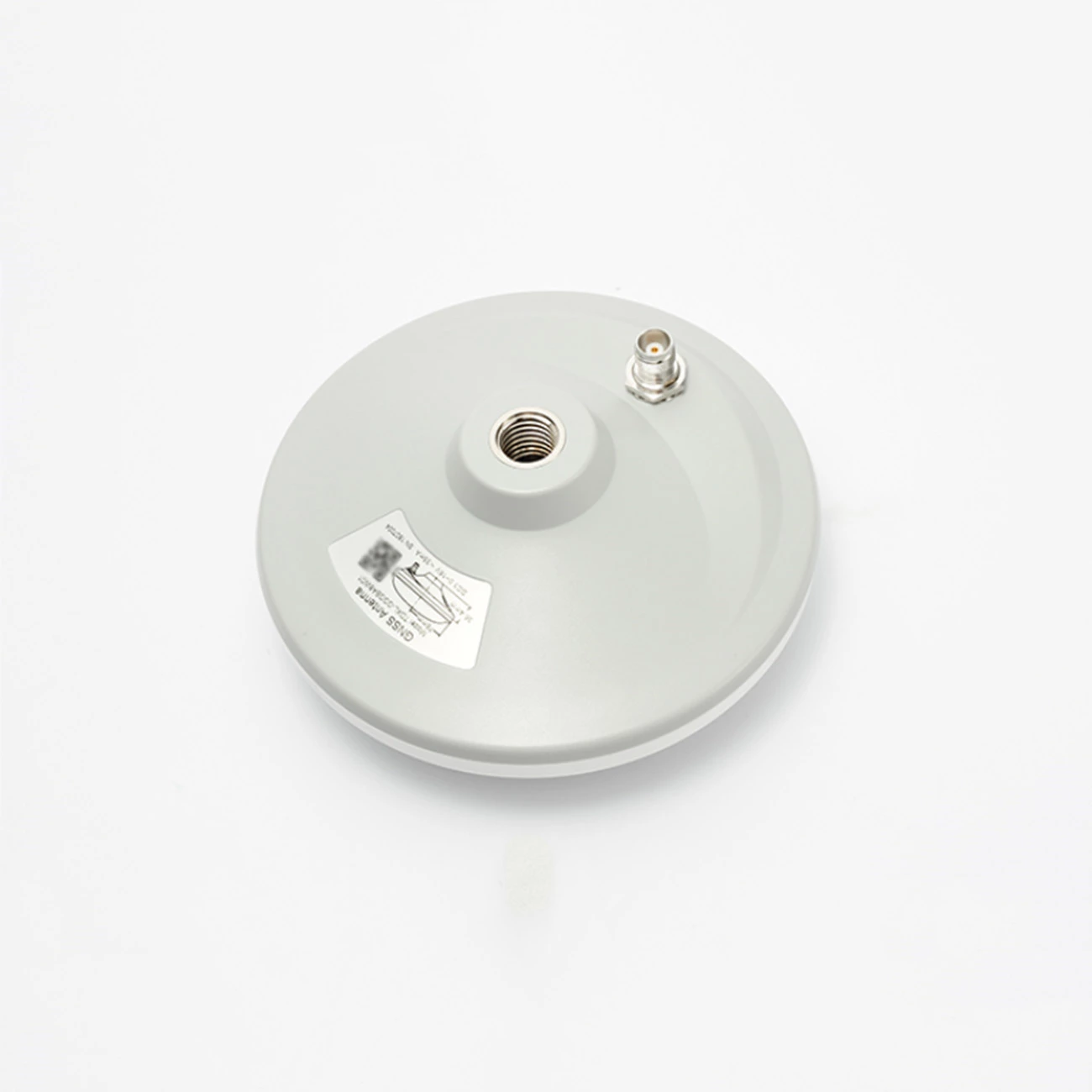

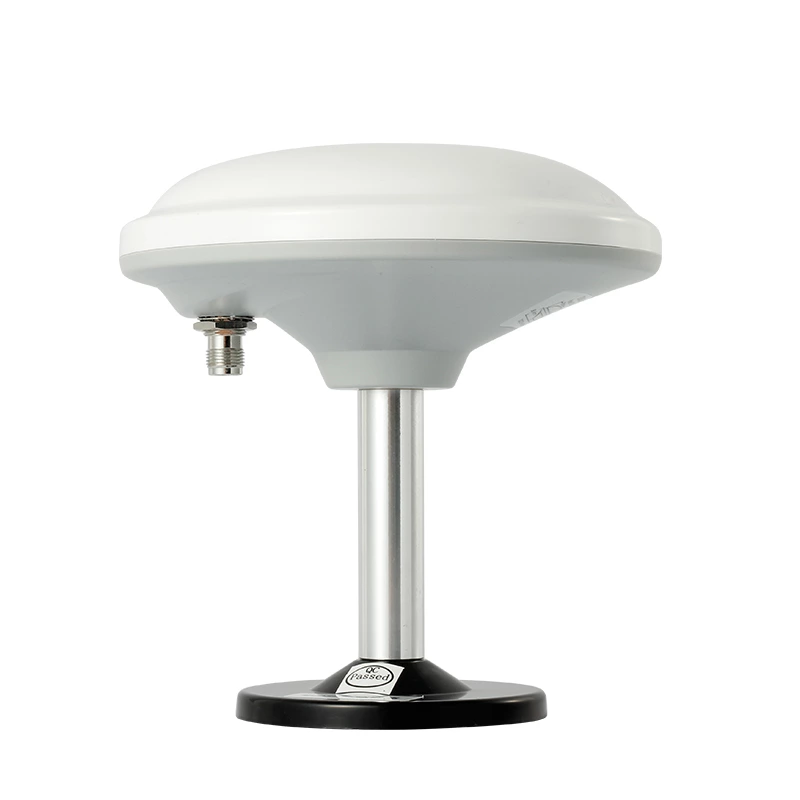

GPS Antenna BDS GLONASS GALILEO System Full-band GNSS RTK Measure Antenna for Intelligent Agriculture
- Model No.
- SDGPS-10
- Type
- GPS/GNSS Antenna
- Place of Origin
- China
- Frequency Range
- 1154Mhz~1300Mhz; 1551Mhz~1615Mhz
- Connector
- TNC-Female
- V.S.W.R
- <1.5
- Impedance
- 50 Ohm
- Accept OEM
- yes

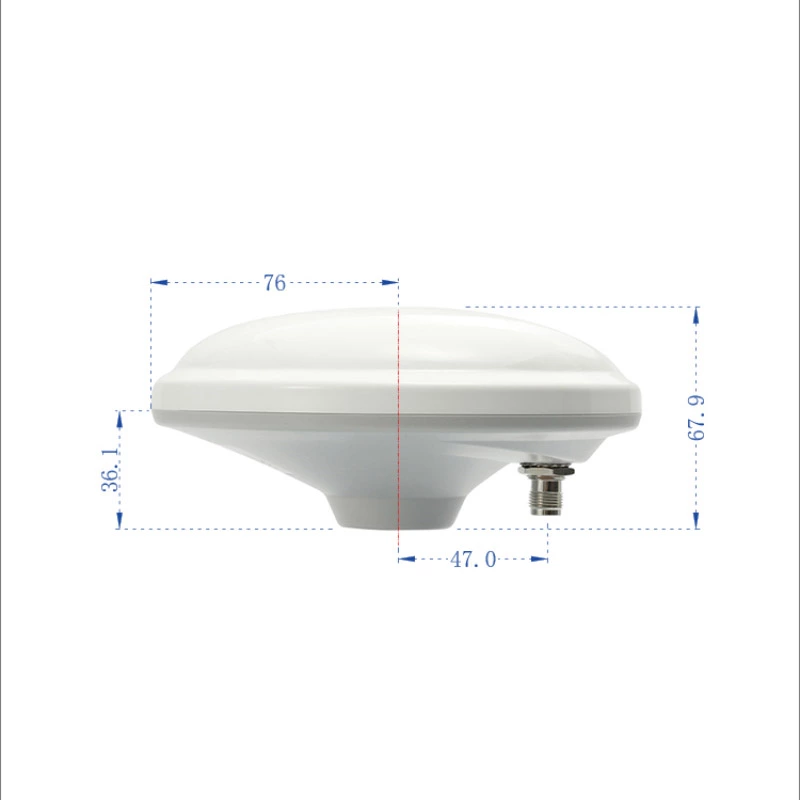

- Length
- Dia 152*68mm
Technical Highlights:
Four-mode, 11-band: Supports full-band BeiDou III B1C/B2a/B3I, GPS L1/L2/L5, GLONASS G1/G3, and Galileo E1/E5a/E5b signal reception.
Intelligent anti-interference: Built-in adaptive filtering algorithm suppresses over 20dB of interference from 4G/5G base stations, ensuring signal reacquisition time of less than 0.8 seconds during farmland operations.
Agricultural-enhanced design: IP67 protection rating and a -40°C to +105°C operating temperature range ensure stable operation even in direct pesticide spraying environments.
Core Performance
It is suitable for scenarios such as unmanned agricultural machinery path navigation, precise variable-rate fertilization, and automatic crop row alignment. Actual measurements show that this antenna, when combined with the BeiDou Ground-Based Augmentation System, can achieve a horizontal measurement accuracy of 2mm+1ppm and an elevation measurement accuracy of 5mm+1ppm, meeting the sub-meter measurement requirements of smart agriculture. Its lightweight polycarbonate housing (weighing less than 450g) allows for easy installation on top of a plant protection drone or self-driving tractor.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.
- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
