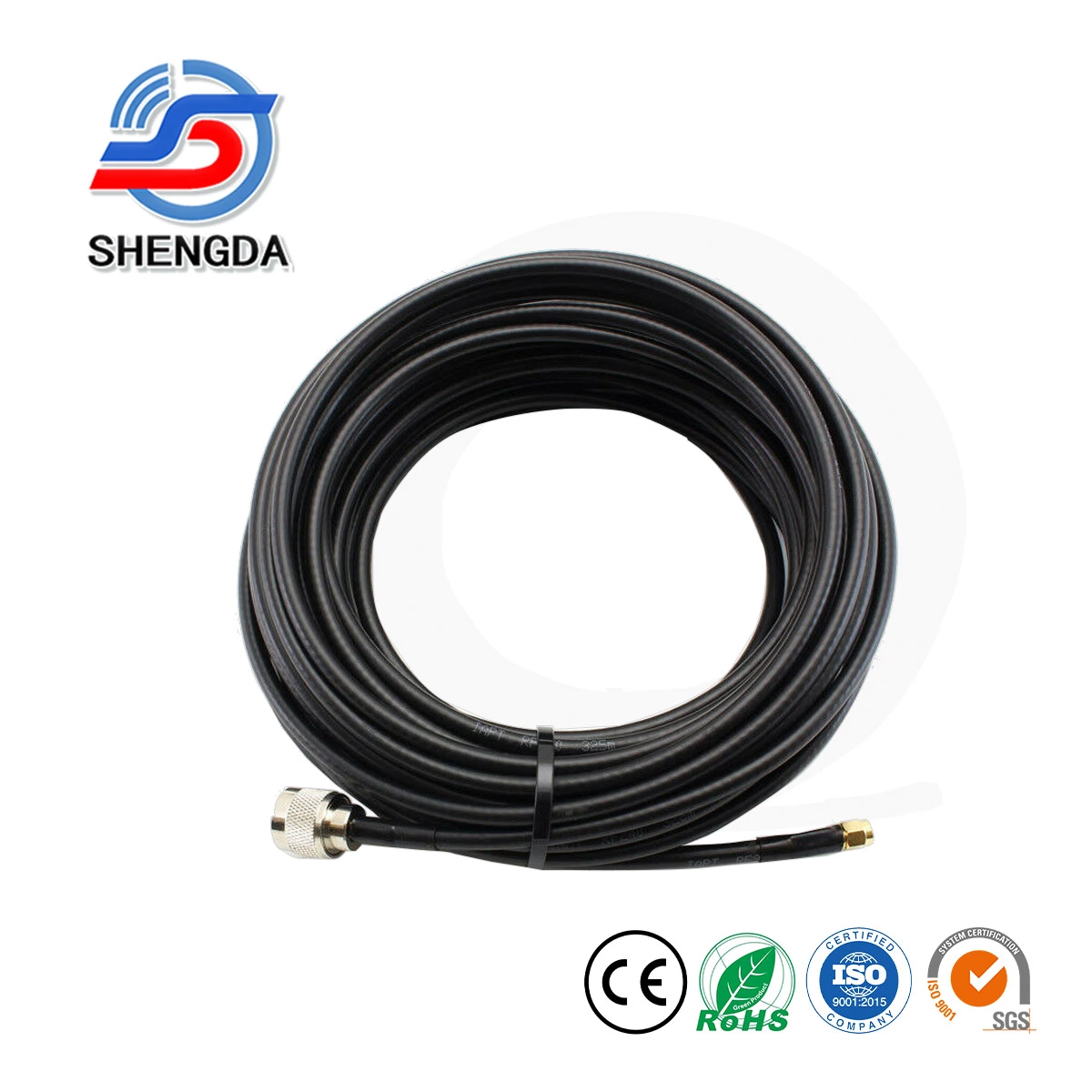

LMR200 Rp Sma Cable Male Plug To Rp Sma Female Jack Bulkhead Rf Connector Coaxial Braid Antenna Extension Cables
- Model No.
- LMR200
- Type
- Coaxial Cable
- Place of Origin
- China
- Color
- Black
- Length
- 5M/10M/15M
- Center Conductor
- Solid .044
- Nominal
- 0.195
- Shield Cover
- 80% Braid/100% Feil
- Attenuation db/100ft -100MHz
- 3.2
- -400MHz
- 6
- -900MHz
- 9.9
- -2.4GHz
- 16.9
- -5.8GHz
- 26.4
- Connector 1
- N-Female
- Connector 2
- SMA-Male
Characteristic

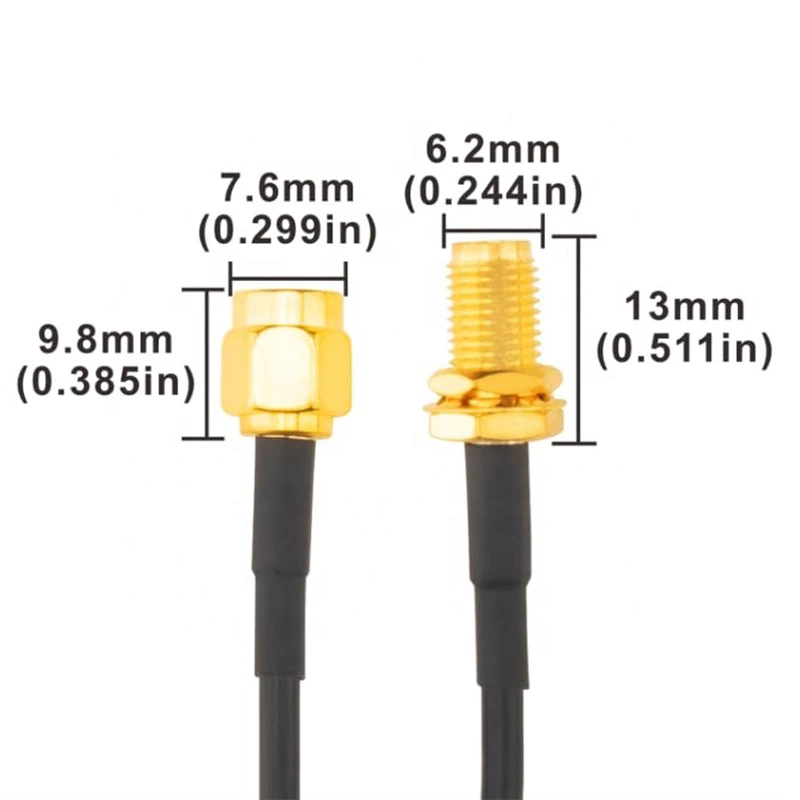

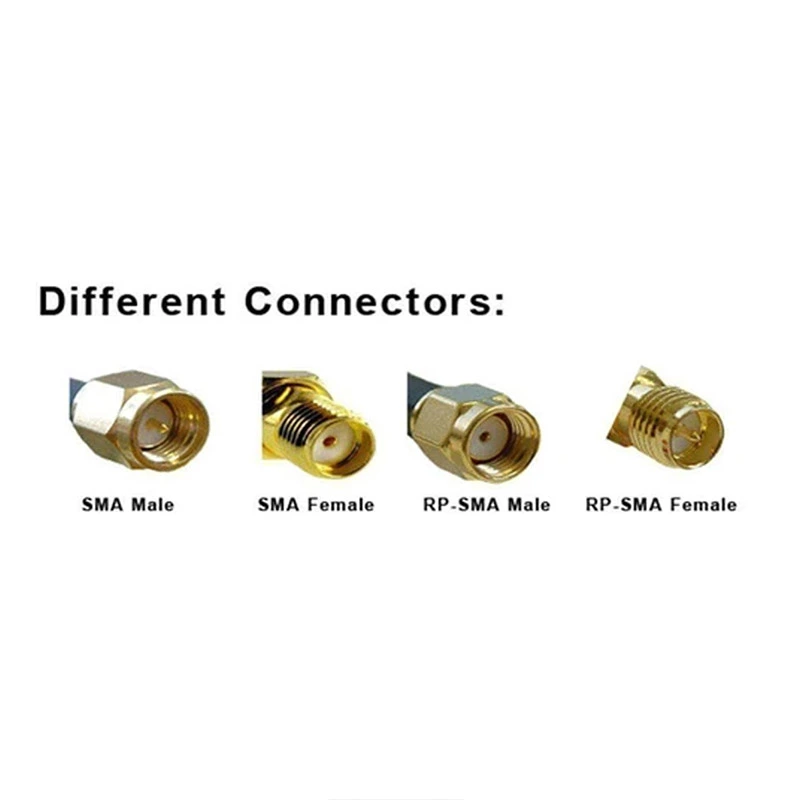

The LMR200 RP-SMA Male Plug to RP-SMA Female Jack Bulkhead RF Connector Coaxial Braid Antenna Extension Cable is a high-performance RF connectivity solution designed for wireless communication systems. It utilizes premium LMR200 coaxial cable with reverse polarity SMA (RP-SMA) male and female connectors, making it suitable for signal transmission and extension in a variety of RF devices.
Core Performance

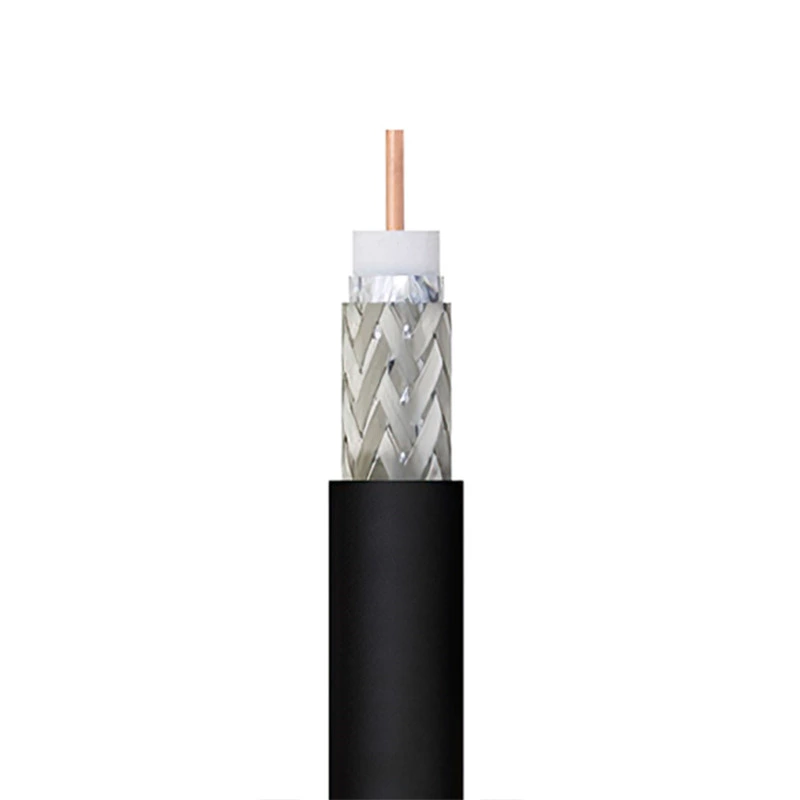

Cable Type: Low-loss LMR200 coaxial cable, 5.0mm outer diameter, offers both flexibility and durability. Connector Configuration: RP-SMA male plug to RP-SMA female bulkhead connector. Impedance Matching: Standard 50 ohm impedance ensures stable signal transmission. Frequency Range: Supports 0-6 GHz wideband operation, perfectly compatible with 2.4 GHz/5 GHz WiFi and 4G LTE devices. Shielding Performance: Double-layer shielding design (aluminum foil + tinned copper braid) provides >90 dB shielding effectiveness. Standing Wave Ratio: Typical value ≤1.5, minimizing signal reflection loss. Power Capacity: 100W continuous operating power, 300W peak power.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

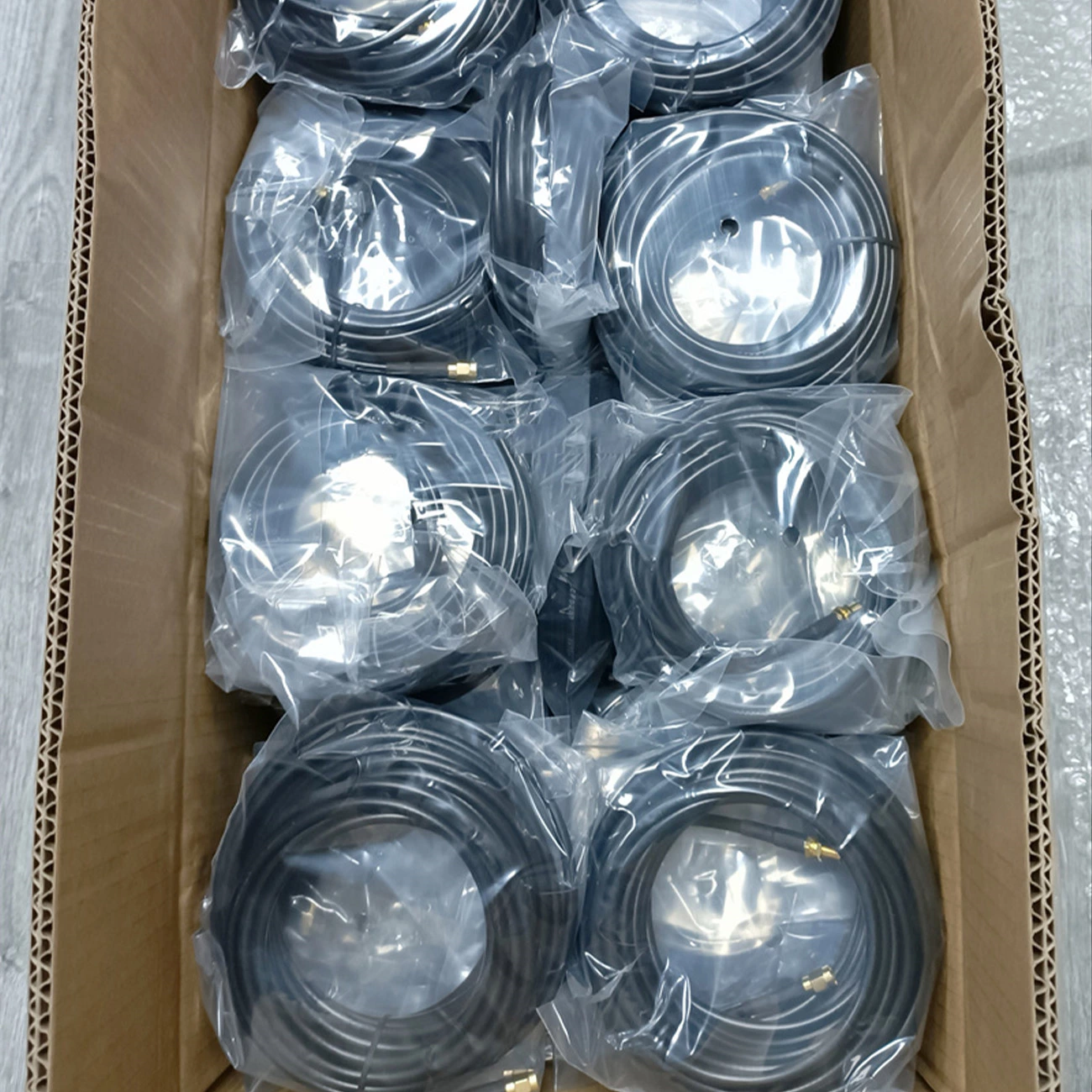

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
