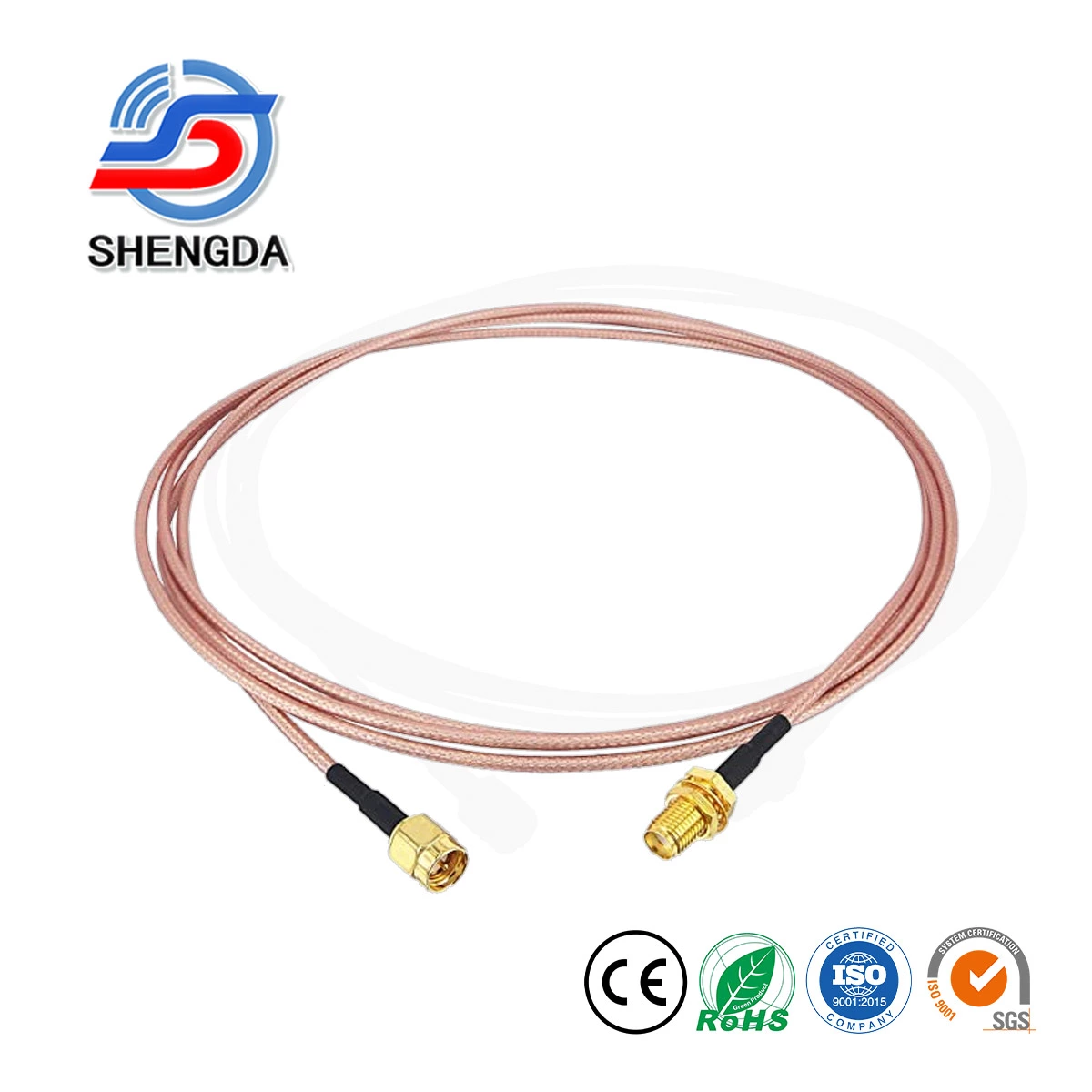

IP68 Coaxial Cable Extension 6 8 10inch SMA Male to SMA Female RF Connector Cable for RG316 Pigtail SMA Cable
- Model No.
- RG316
- Type
- Coaxial Cable
- Place of Origin
- China
- Color
- Black
- Length
- 20cm or customized
- Center Conductor
- Siranded Silver Coated
- Nominal
- 0.098
- Shield Cover
- 95%
- Attenuation db/100ft -100MHz
- 8.3
- -400MHz
- 17.5
- -900MHz
- 27.3
- -2.4GHz
- 39.8
- -5.8GHz
- 64.1
- Connector 1
- BNC-Male
- Connector 2
- SMA-Male
Characteristic
Typical Applications:
In-Vehicle Communication Systems: Serves as a GPS/5G vehicle antenna jumper, resolving signal shielding issues (such as interference from metal vehicle bodies) and extending transmission distances up to 15 meters (requires a repeater).
Core Performance
Industrial IoT: Connects to outdoor surveillance cameras and drone image transmission modules, with IP68 protection ensuring long-term reliability in humid environments.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

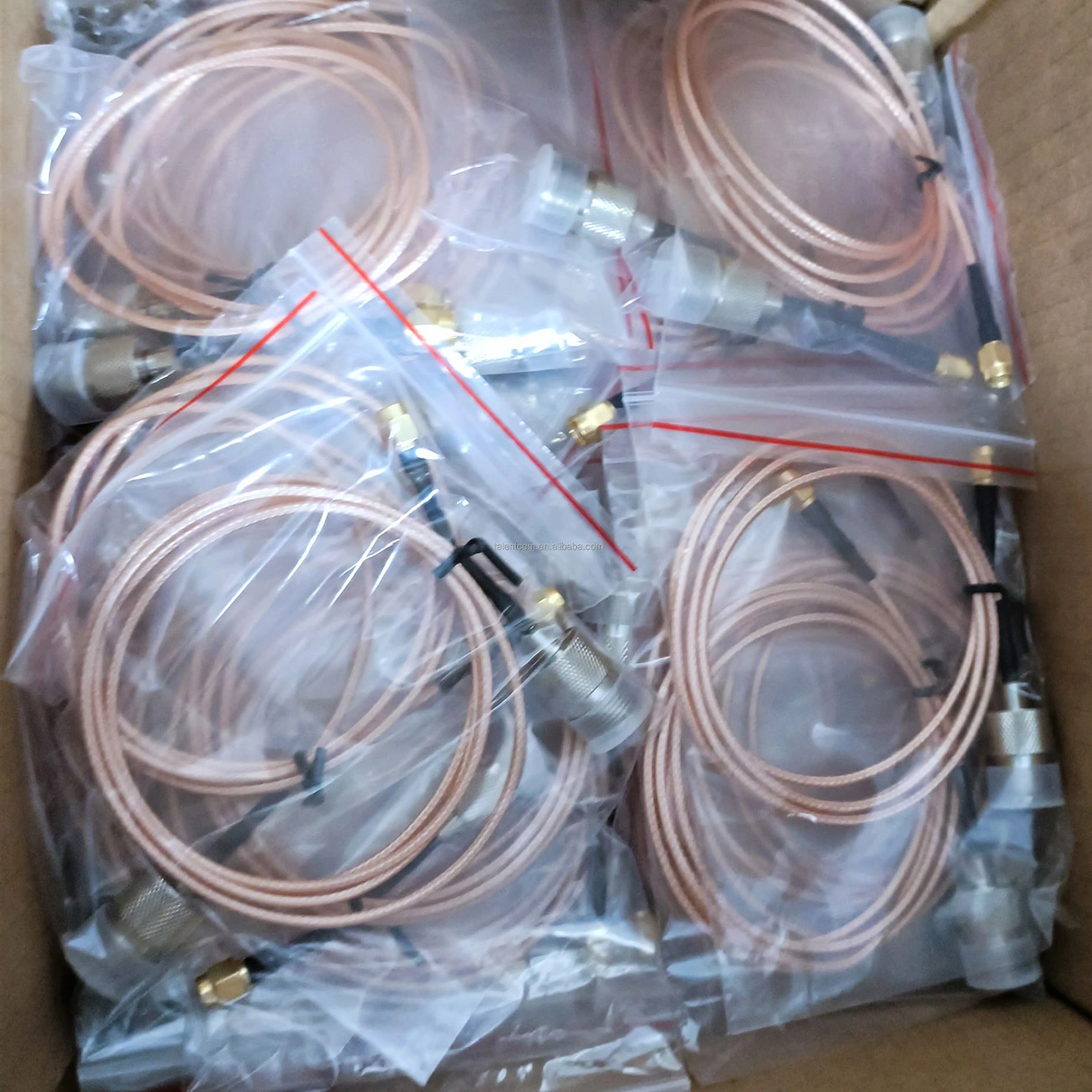

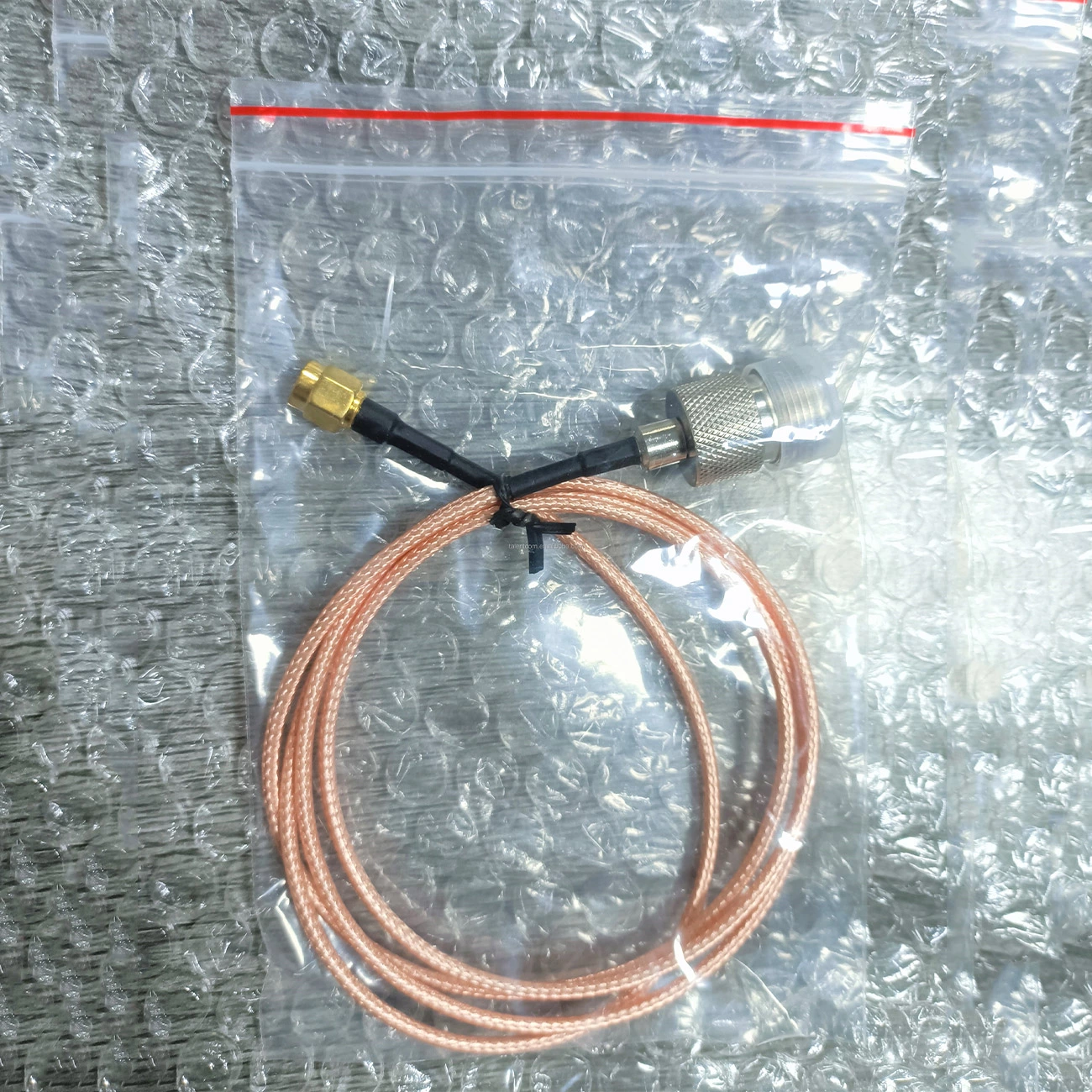

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
