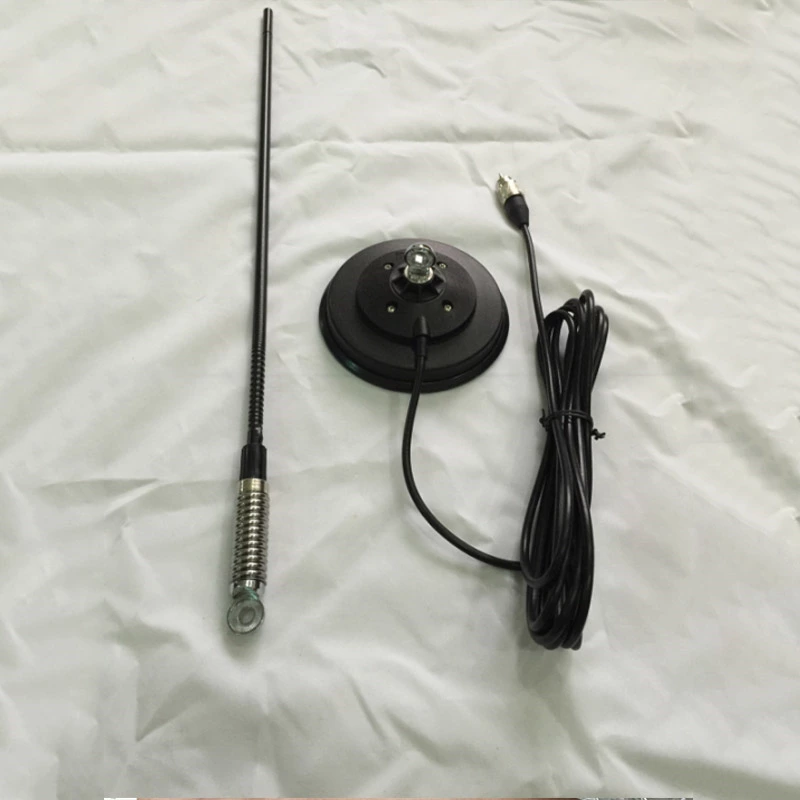

High Performance 27MHz CB Mobile Antenna Long Range 740mm Car Radio Antenna For Communication
- Model No.
- T3-MAG125
- Type
- CB Mobile Antenna
- Place of Origin
- China
- Frequency Range
- 27MHz
- Gain
- 2dBi
- Connector
- UHF/PL259
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Color
- Black
- Length
- 740mm
- Material
- Stainless steel
Characteristic
Dynamic Environmental Compensation: Built-in humidity compensation coating maintains frequency stability (drift ≤ 0.05%) across a temperature range of -30°C to +70°C.
Optimized Omnidirectional Radiation: A special spiral winding structure achieves a 360° horizontal beamwidth and reduces the vertical radiation angle to 25°, significantly improving signal strength at low elevation angles.
Core Performance

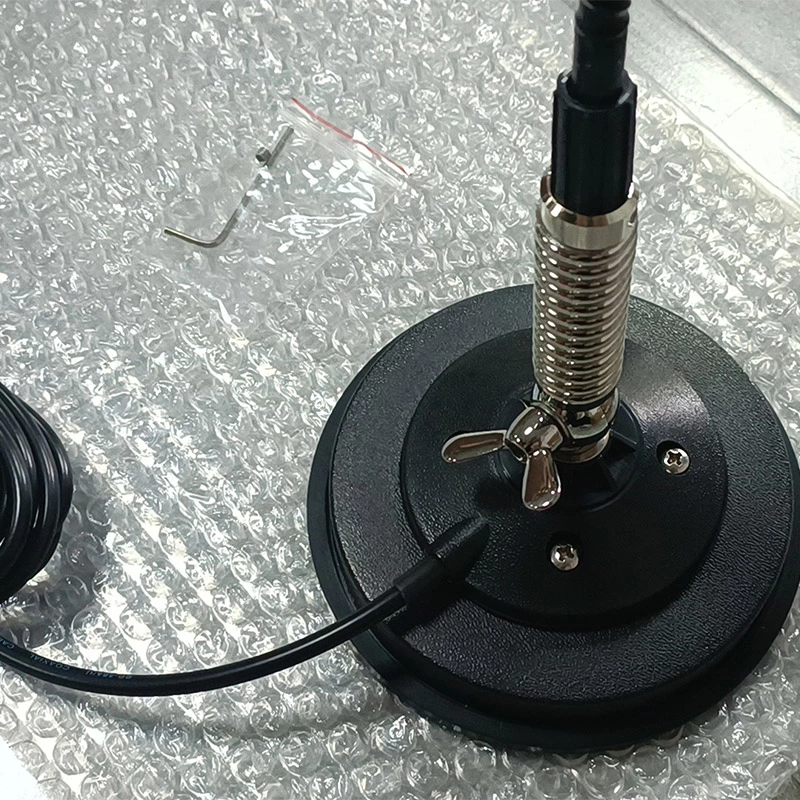

Its IP67 rating protects against salt spray and dust intrusion when traversing deserts or coastlines. The standard 5-meter low-loss RG-8X cable (attenuation 0.82dB/10m @ 30MHz) supports complex engine compartment wiring, while the magnetic base (with a clamping force of ≥18kg) allows for quick deployment on any metal surface in the vehicle.
For HAM enthusiasts, this antenna is tuned to be compatible with the entire CB band from 26.965-27.405MHz, making it ideal for the multi-standard communication needs of international convoys. Tests show that even with a 100W transmitter, its radiation efficiency remains above 83%, far exceeding that of similar fiberglass antennas.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

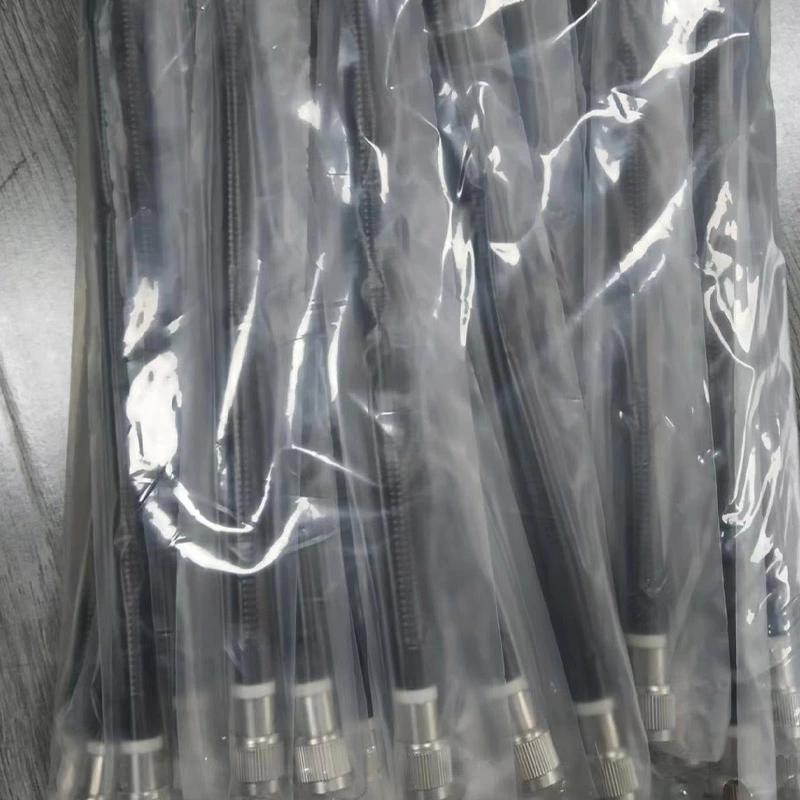

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
