CB82 27MHz Mobile Car Antenna 27.2MHz 27.135MHz Whip Mobile Vehicle Antenna Magnetic Base Antenna for Car Radio Communication
- Model No.
- CB82 MAG
- Type
- CB Mobile Antenna
- Place of Origin
- China
- Frequency Range
- 27MHz/27.2MHz/27.135MHz
- Gain
- 2.54dBi
- Connector
- PL259
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Color
- Black
- Length
- 740±10mm
- Material
- Stainless steel
Characteristic
Frequency Band Coverage: 27MHz-27.2MHz (Compatible with CB radio and HAM bands)
Structural Design: Stainless steel whip-shaped oscillator (length 0.75m), bending strength ≥ 40kgf, compatible vehicle speed ≤ 100km/h
Core Performance
Cable Configuration: Standard 3m RG58 coaxial cable (50Ω impedance)

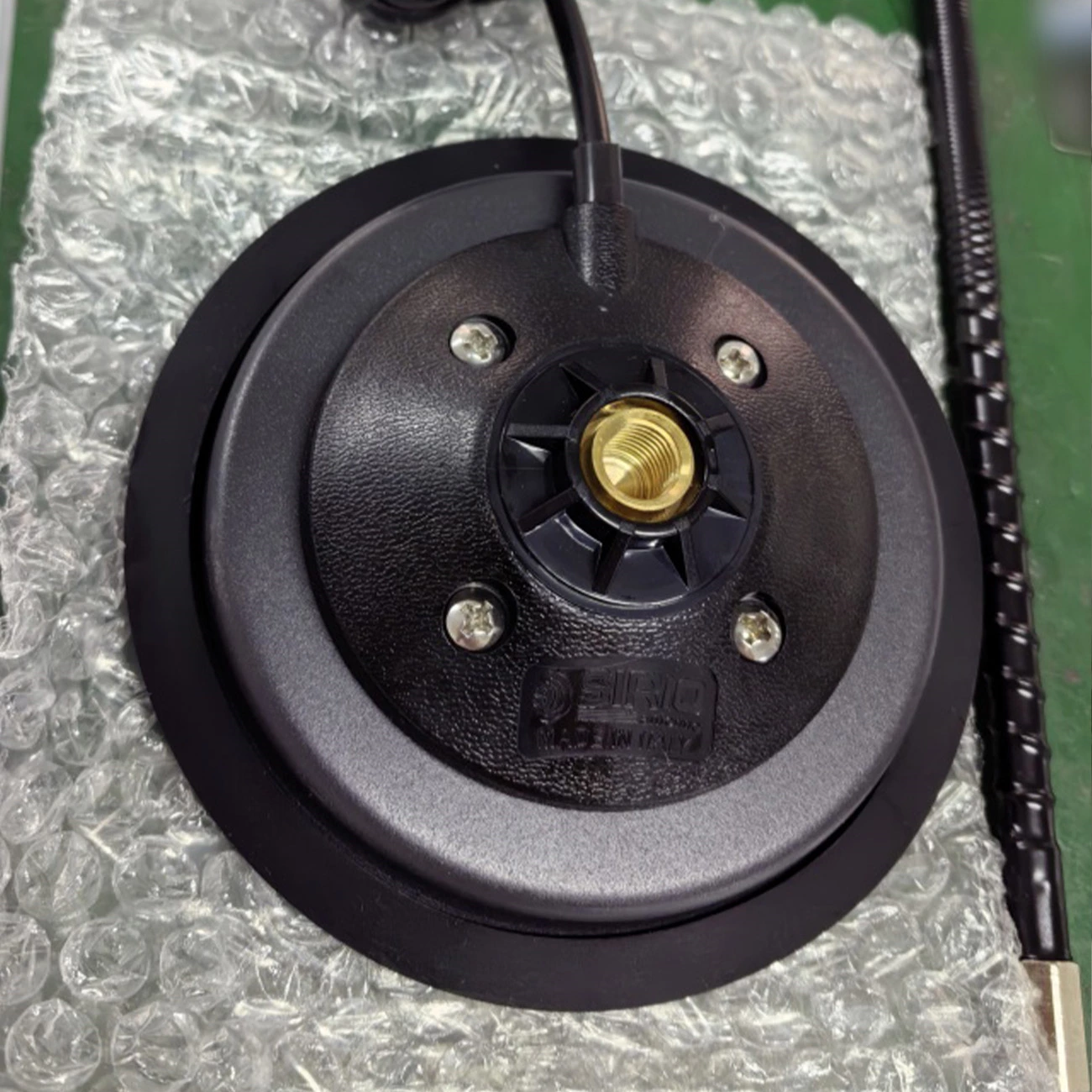

Adhesion: 90mm diameter strong magnetic base securely attaches to metal roof surfaces (minimum contact area ≥ 200cm²)
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

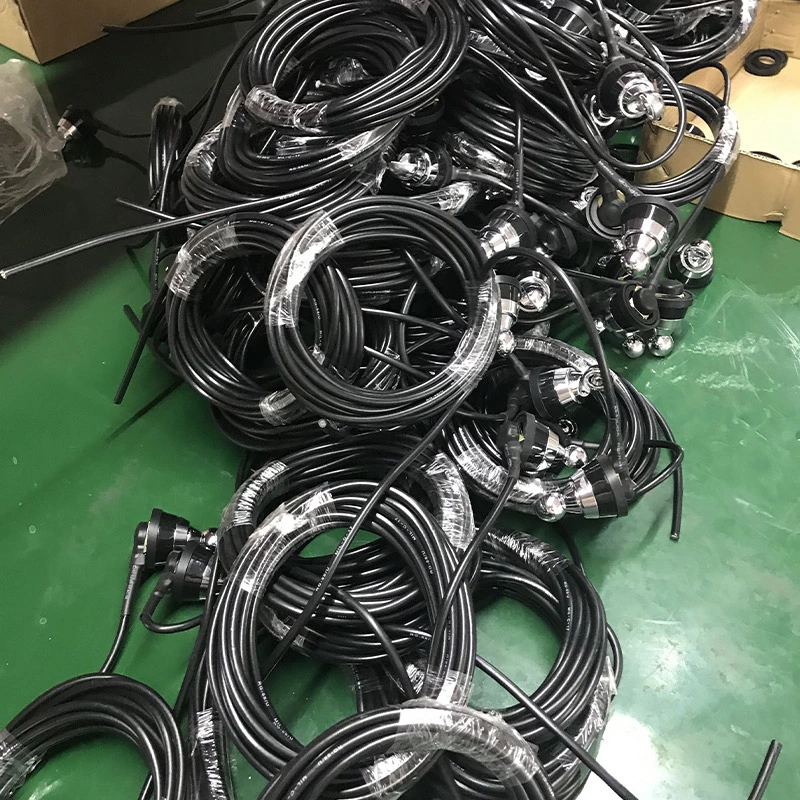

- part of antenna is individual packed in PE/PVC Bag.

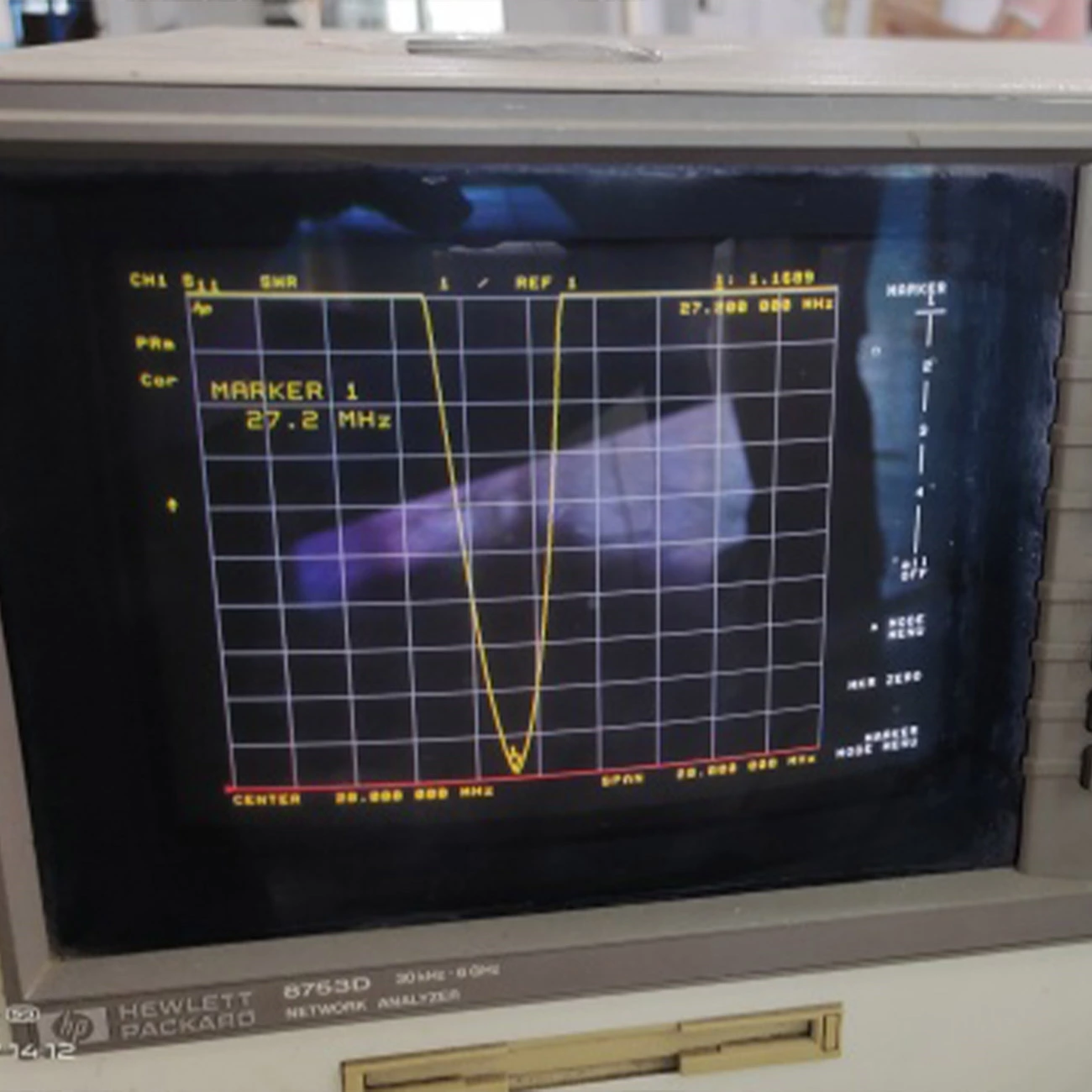

- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
