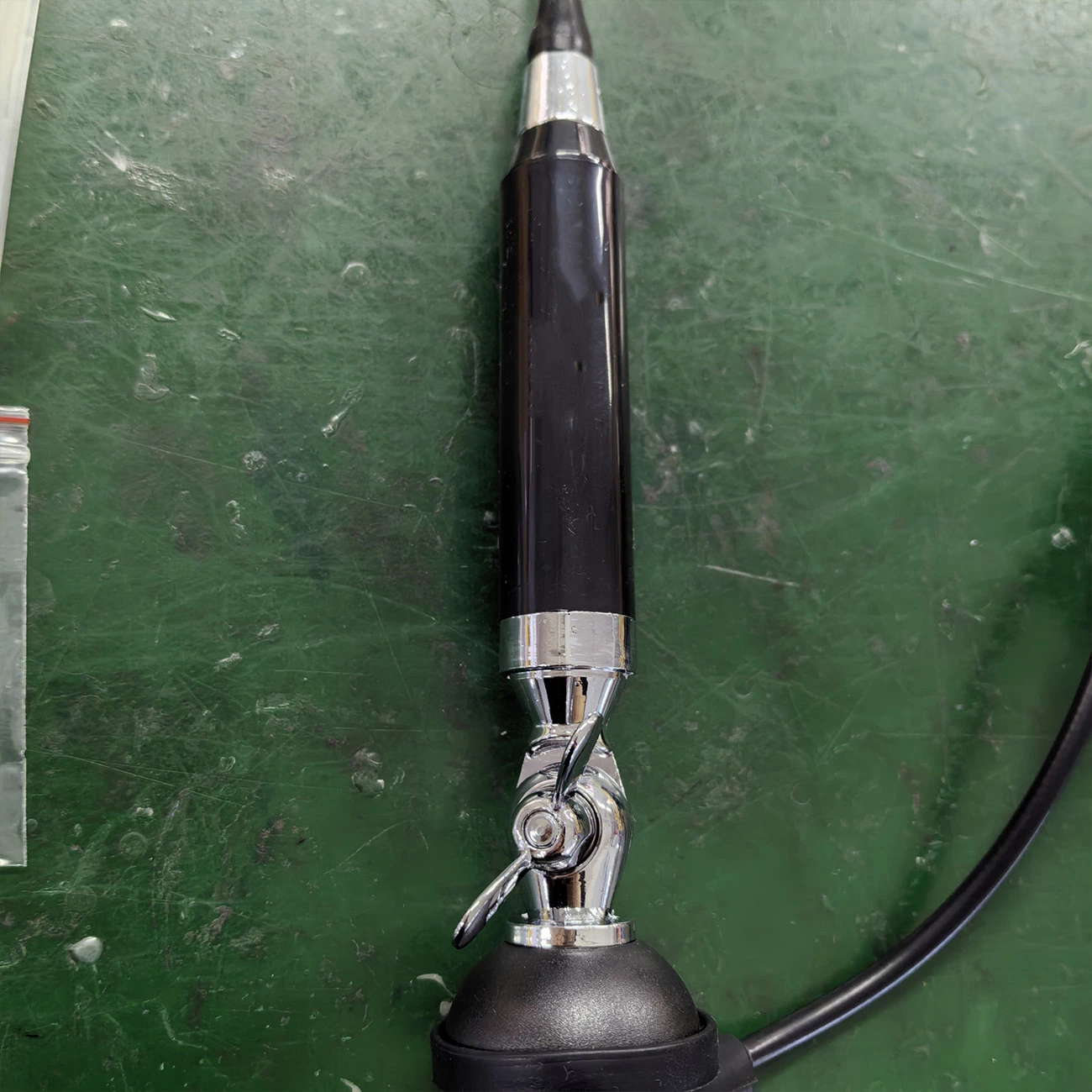

AT1200 Long Ran CB Radio Antenna 26-28MHz HF Mobile Cellular Steel Antenna Vertical Polarization Car Antenna
- Model No.
- AT1200
- Type
- CB Mobile Antenna
- Place of Origin
- China
- Frequency Range
- 26-28MHz
- Gain
- 4dBi
- Connector
- PL259 UHF
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Color
- Black
- Length
- 1200mm
- Material
- Stainless steel
Characteristic
Covering the 26-28MHz high frequency band, vertical polarization optimizes in-vehicle mobile communications, with a standing wave ratio (VSWR) ≤ 1.8:1.
Compatible with both CB Radio and Amateur Radio (HAM) modes, supporting FM/AM modulation.
Core Performance
Radiation Efficiency: 92% at a center frequency of 27 MHz, a 17% improvement over conventional fiberglass antennas.
Effective Gain: 3.2 dBi (theoretical limit for a 1/4 wavelength vertical oscillator).
Cable Configuration: 5-meter low-loss RG-8X coaxial cable (attenuation 0.6 dB/10 m @ 30 MHz).
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

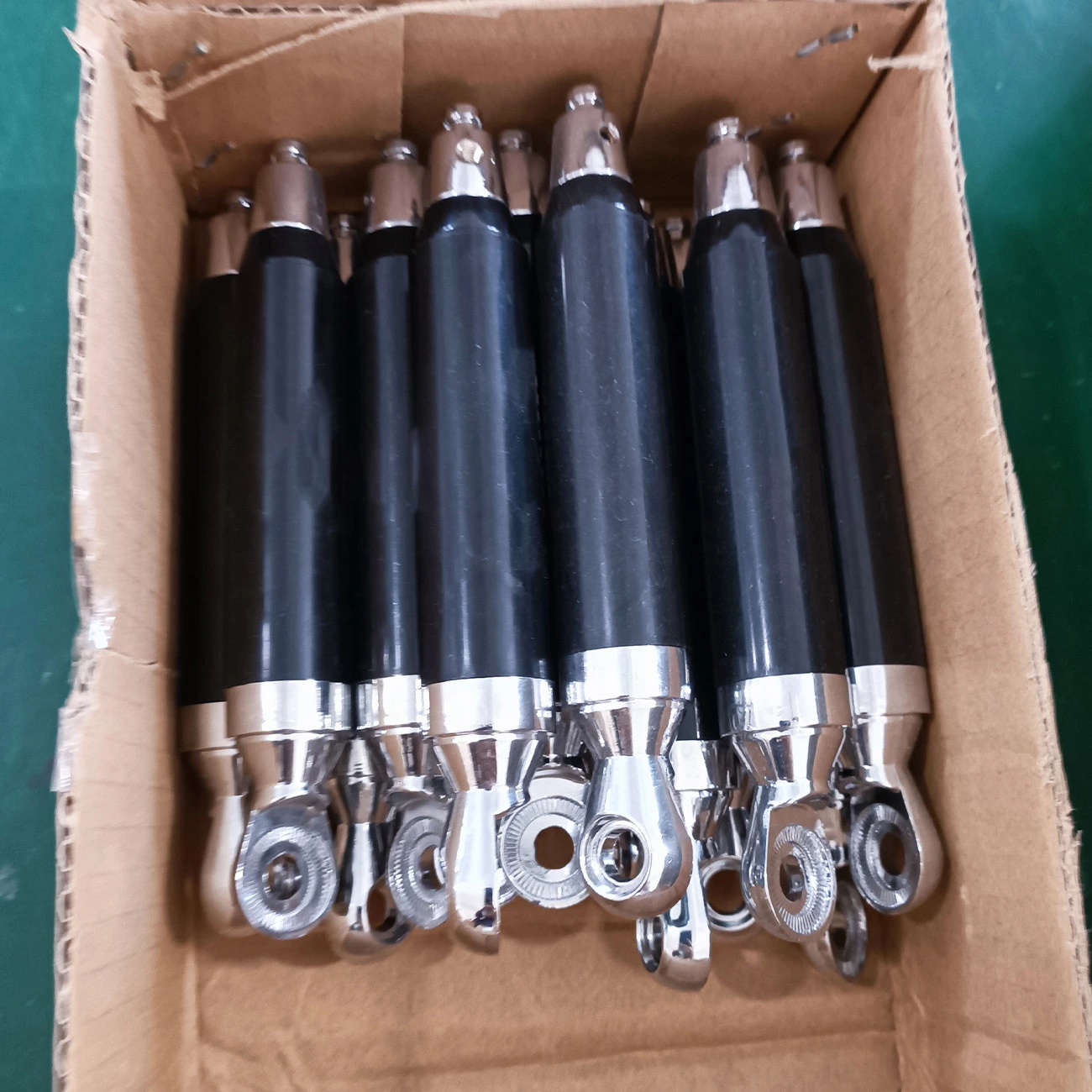

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
