26-28MHz UHF/PL259 Combination Mobile Antenna Steel Whip Antenna for CB Communication 27MHz Frequency Range Omni Radiation
- Model No.
- ML145
- Type
- CB Mobile Antenna
- Place of Origin
- China
- Frequency Range
- 26-28MHZ
- Gain
- 4dBi
- Connector
- UHF/PL259
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Color
- Black
- Length
- 1450mm
- Material
- Stainless steel
Characteristic
Frequency Band Optimization

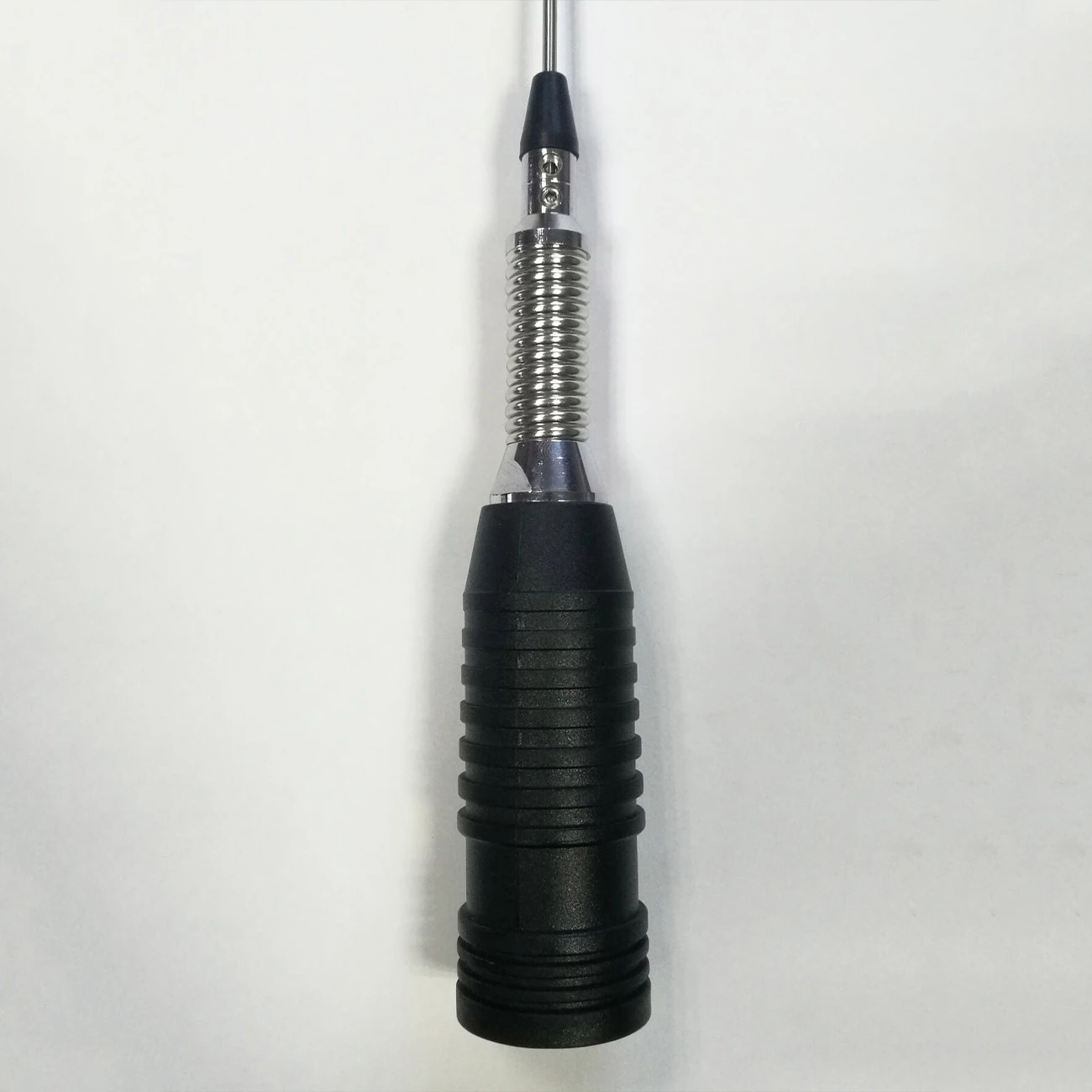

Precision-tuned 26-28MHz operating frequency band, specifically enhancing signal transmission and reception efficiency in the 27MHz CB communication band. Omnidirectional radiation pattern ensures 360° coverage. Mechanical Design: Military-grade spring steel whip-shaped transducer for shock and vibration resistance. Patented wind-resistant structure ensures stability at high speeds. Interface Standard: PL259 connector, contact resistance <0.1Ω. Anti-corrosion seal design, IP65 protection rating.
Core Performance
Commercial fleet dispatch: Achieve stable network communication within a 30-50km radius.
Emergency communications support: A rapidly deployable mobile communication solution.
Amateur radio: The preferred antenna for mobile HAM enthusiasts.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

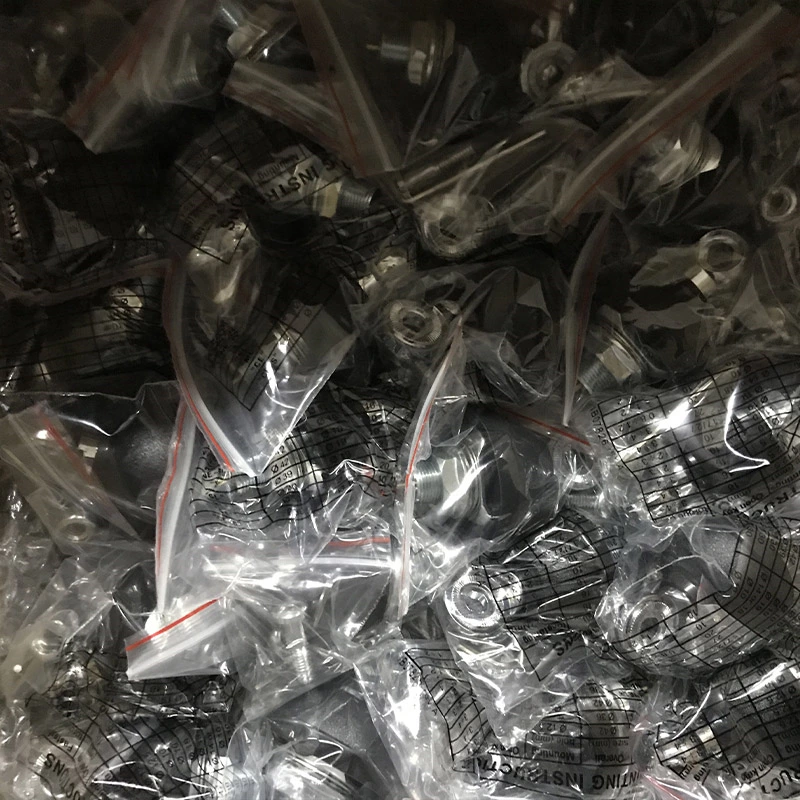

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
