Fiberglass Base Station Antenna Quality Antenna SD-X50D 144/430MHz 145/435MHz VHF UHF Dual Band Radio RPT Repeater
- Model No.
- X50D
- Type
- Base station Antenna
- Place of Origin
- China
- Frequency Range
- 144/430MHz or 145/435MHz
- Gain
- 4.5/7.2 dBi
- Connector

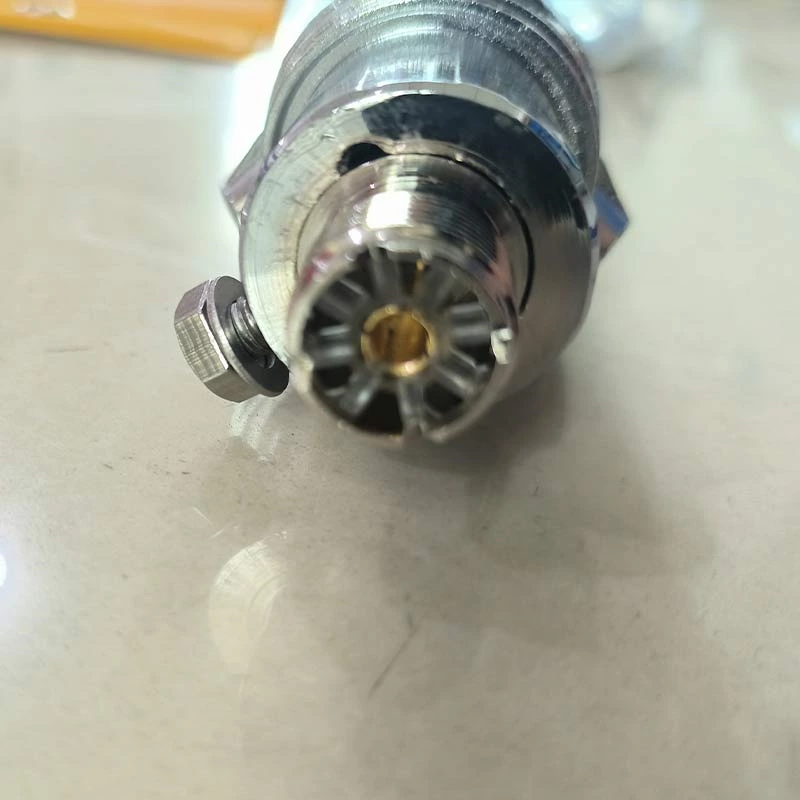

- SO239(UHF-Female)
- Impedance
- 50ohm
- Accept OEM
- yes
- Length

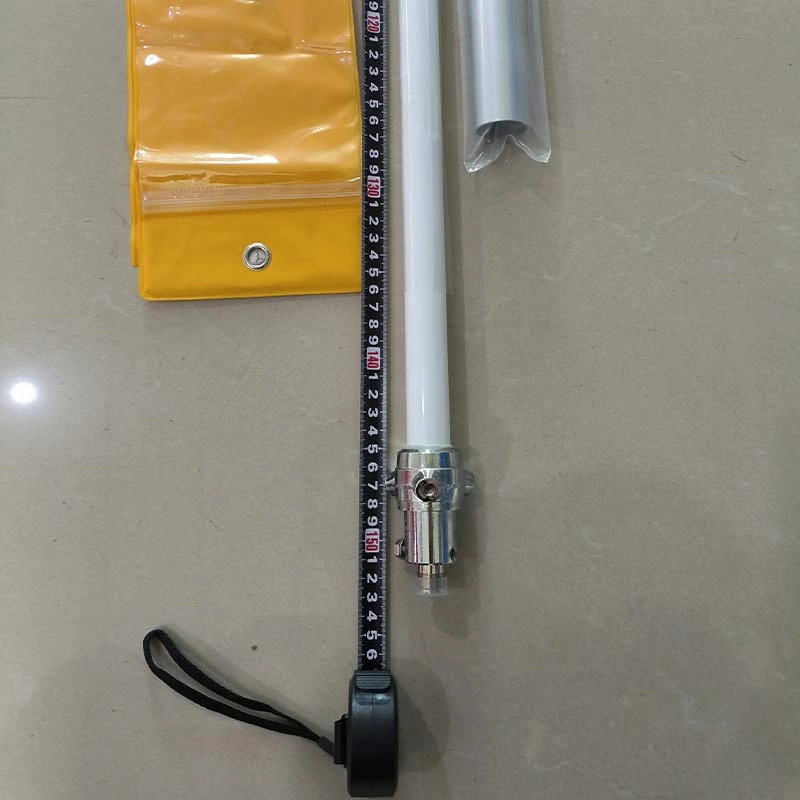

- 170 cm
- Material
- Fiberglass / Brass
Characteristic

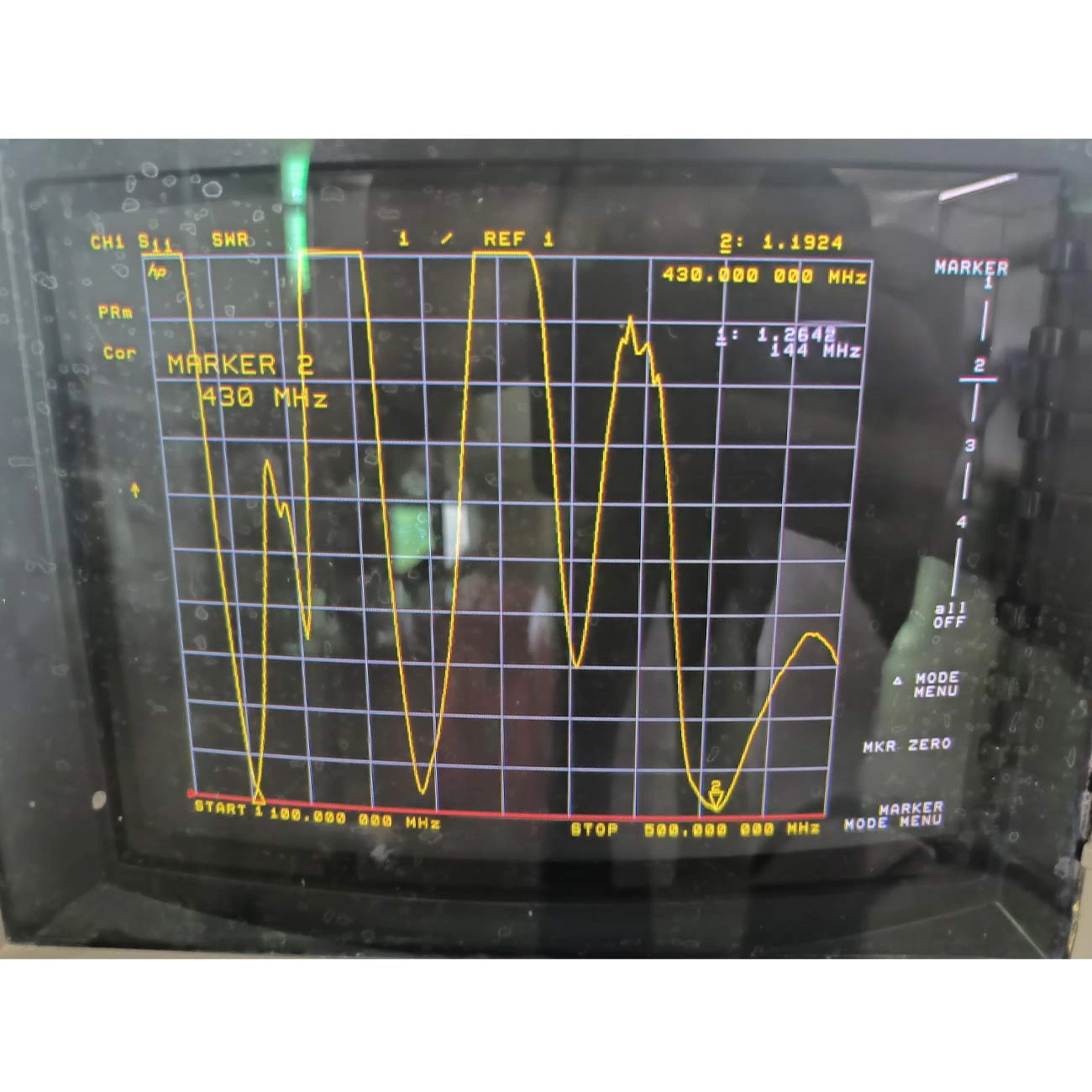

50Ω standard impedance, VSWR 144MHz is 1.35, VSWR 430MHz is 1.29.
Ensures minimal energy loss; omnidirectional vertical polarization radiation mode, communication distance in open areas can reach several kilometers
Core Performance
- The antenna is pre-tuned, no tuning needed. Aluminum alloy construction greatly improves the outdoor working life of the antenna.

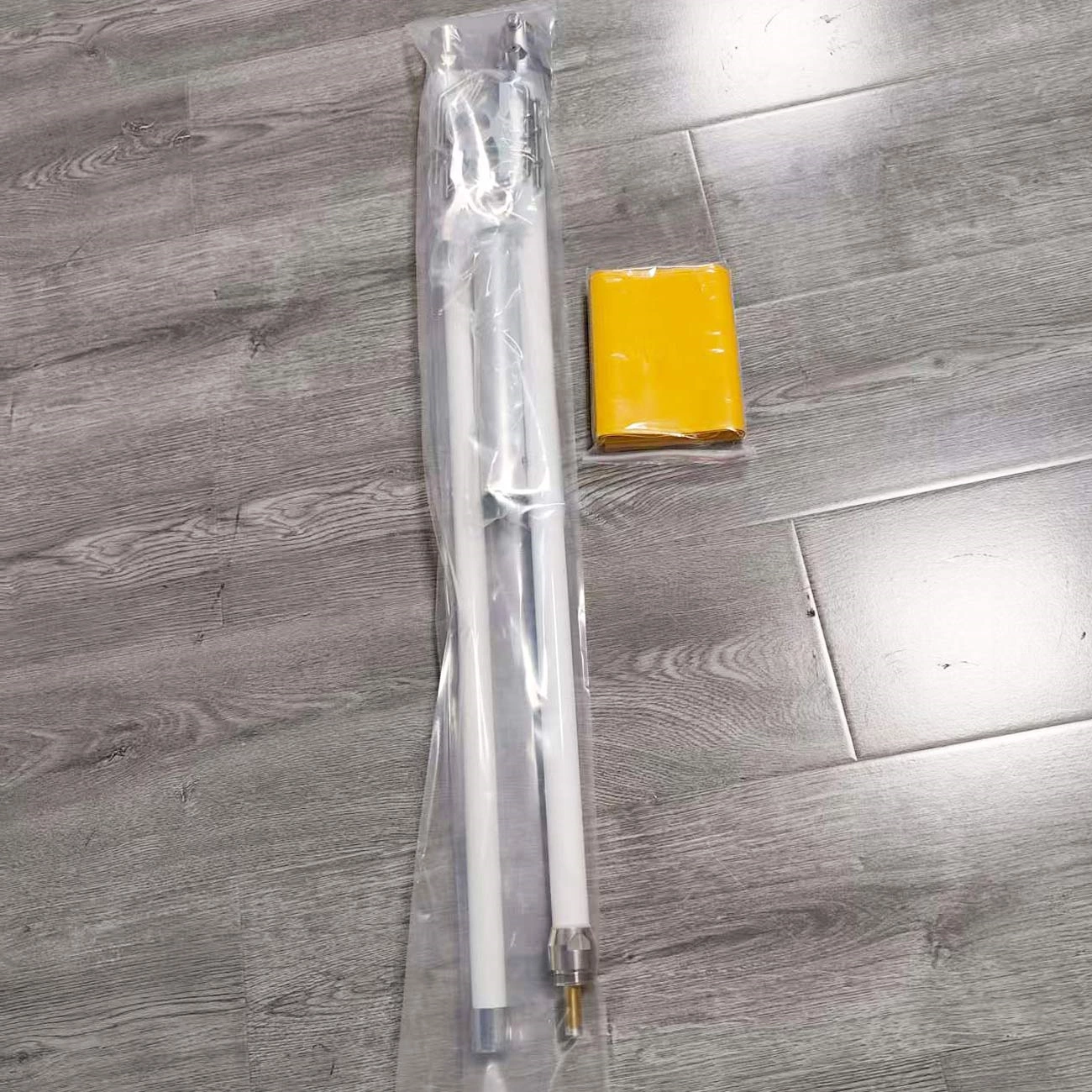

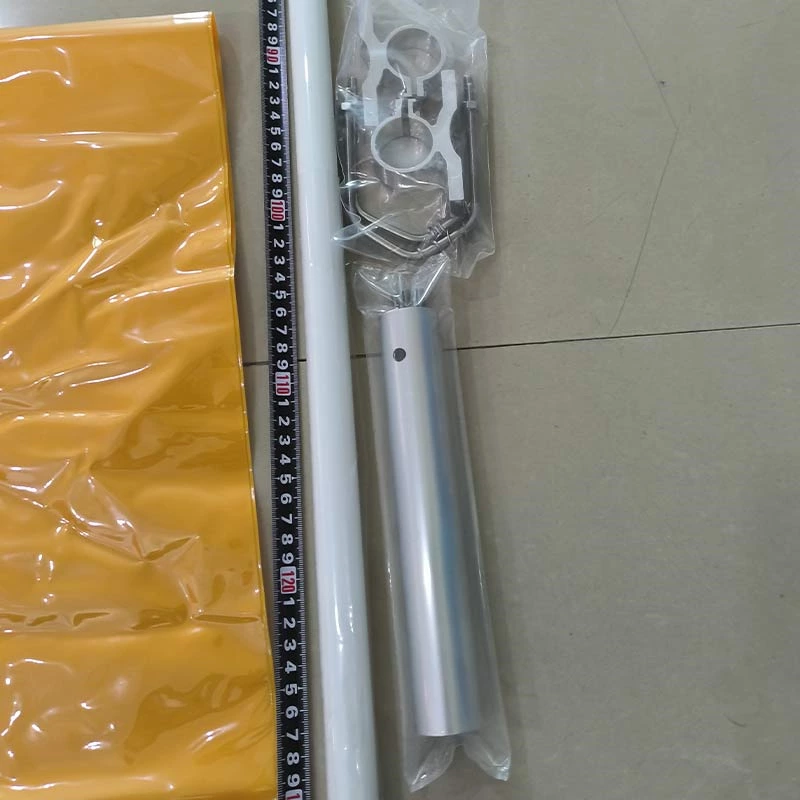

- Package includes antenna, mounting brackets and stainless steel radials.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.
- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
