Dipole Base Antenna VHF a Set 4 Dipole 136-174MHz High Gain 10dBi with 1PC 4 Ways Power Splitter
- Model No.
- BZL-V
- Type
- Base station Antenna
- Place of Origin
- China
- Frequency Range
- 136-174MHz
- Gain
- 10dBi
- Cable Type
- 2m LMR400
- Power splitter connector
- 2ways/4ways N- Female connector
- V.S.W.R
- less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Material
- Aluminum Alloy
Characteristic
SD BZL-V Folded Dipole Antenna 136-174MHz, consists of 4-element dipole array antennas with a precision phasing harness for optimum performance. The antenna horizontal pattern is field adjustable, for any current or future coverage requirements. The wide bandwidth and high efficiency of these antennas make them ideal for many applications, including trunking, business, public safety, government, and amateur radio.
Core Performance

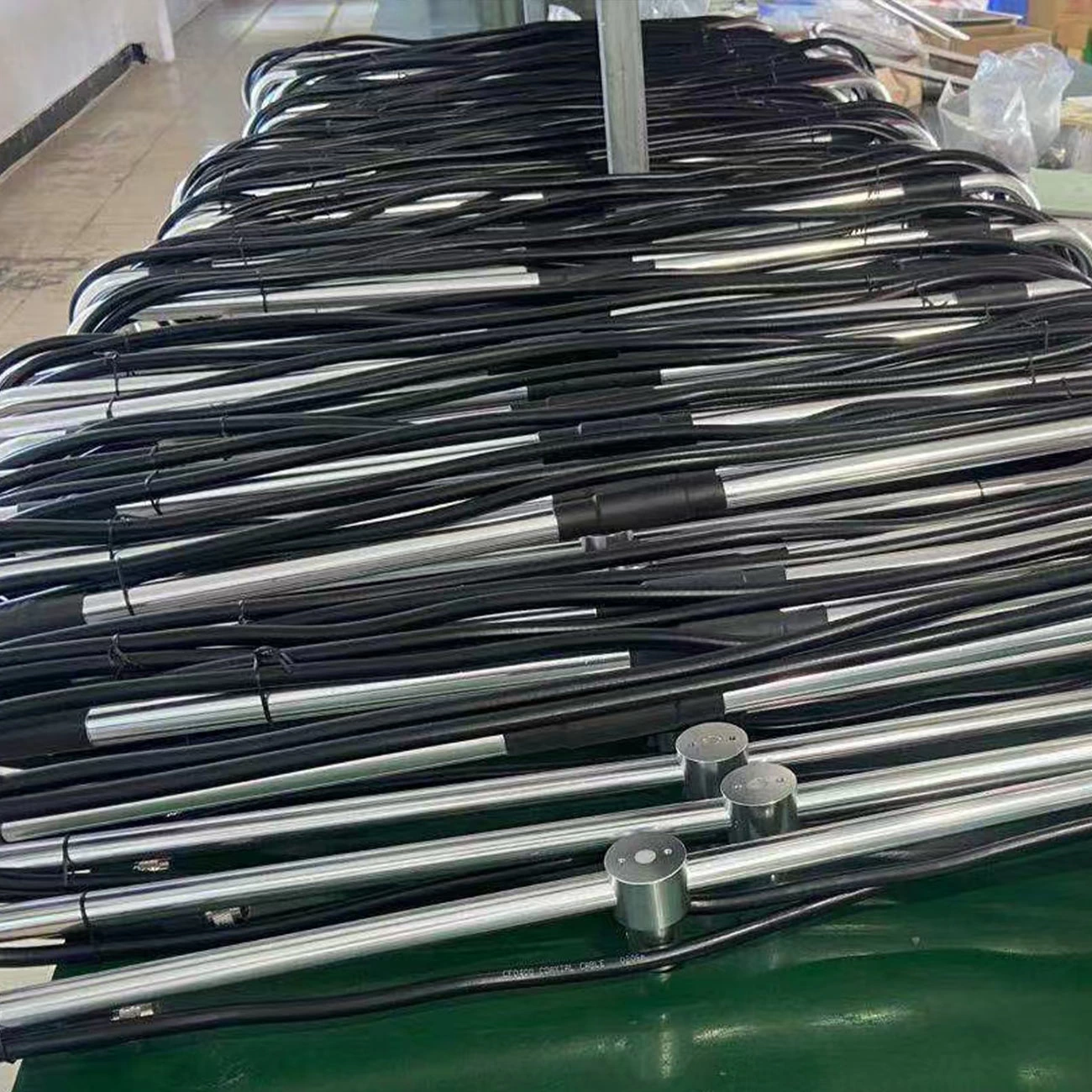

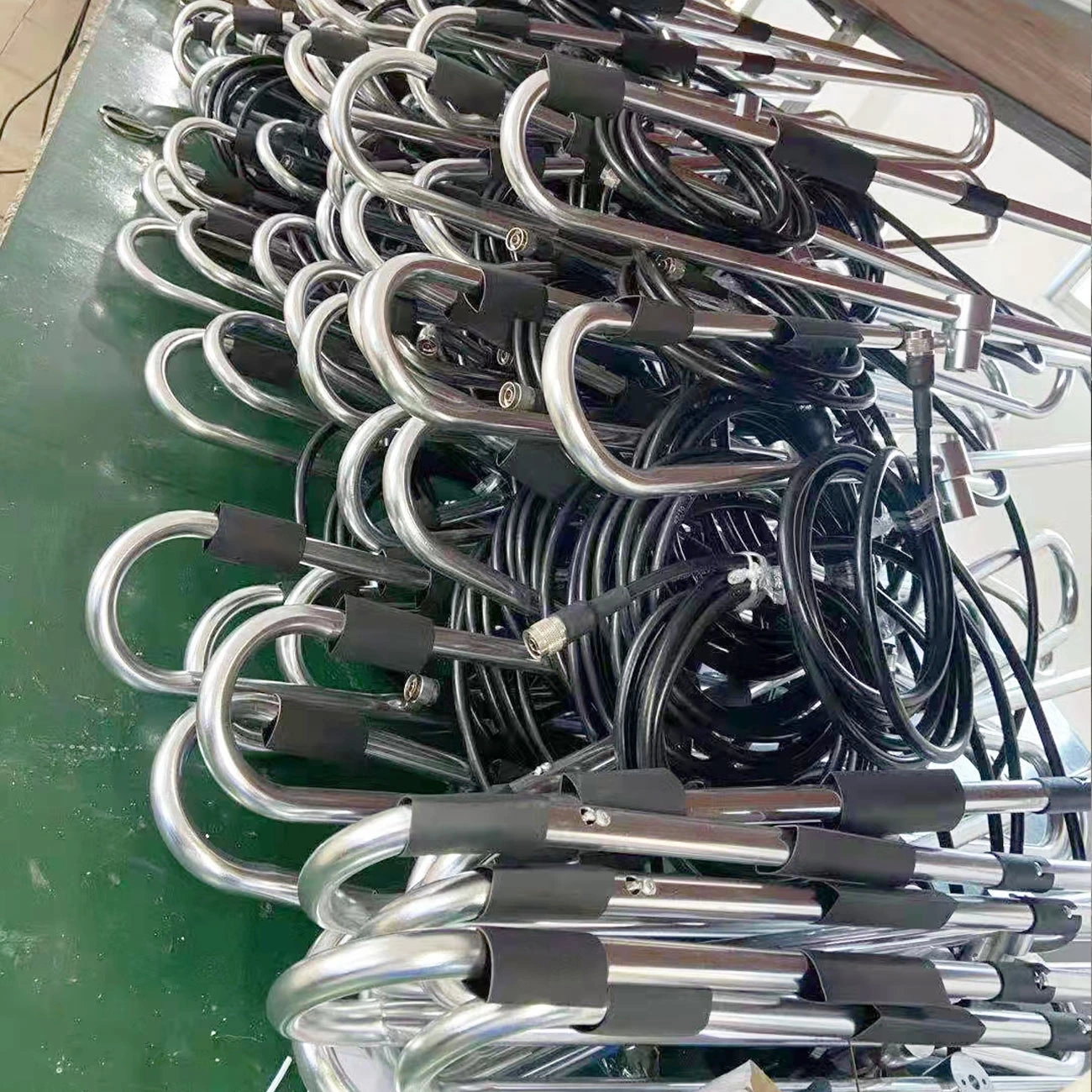

Each dipole element is constructed with 6061-T6 aluminum, and welded at the base for maximum strength. Each antenna is also completely sealed
coating, which resists water and ice buildup, and provides exceptional protection from corrosive gases, UV radiation, salt spray, acid rain and windblown abrasives.

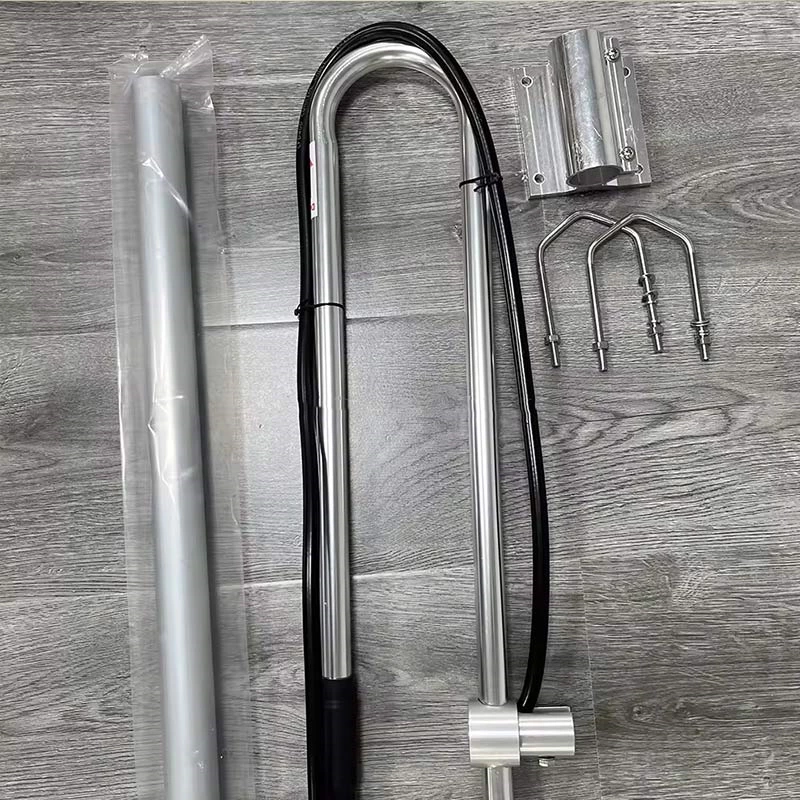

All components are at DC ground potential for lightning protection. Each dipole element includes a heavy-duty custom clamp set for mounting to a 1.5”-2.5” diameter galvanized steel pipe.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

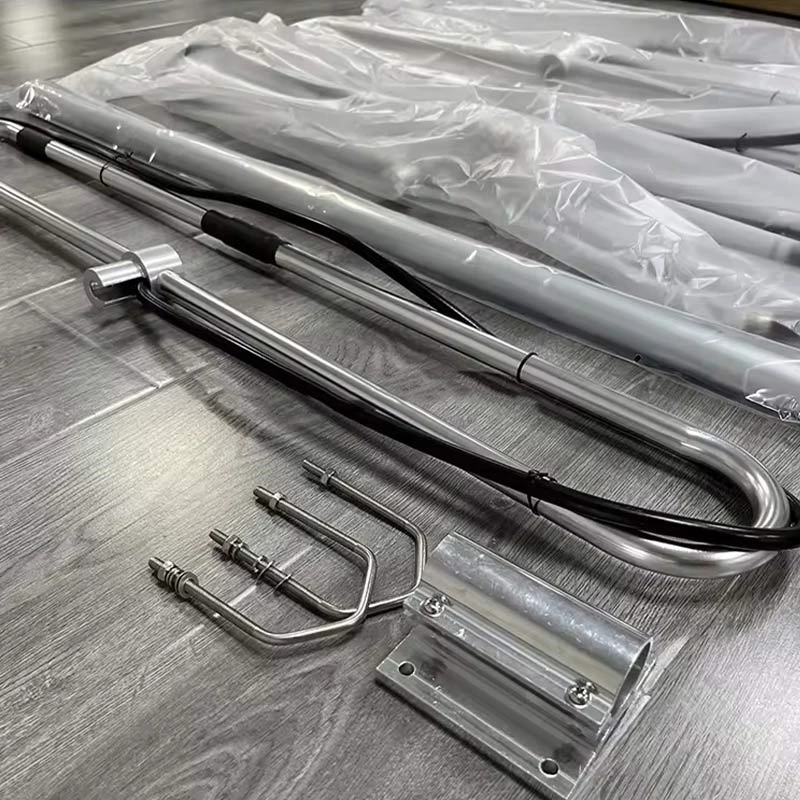

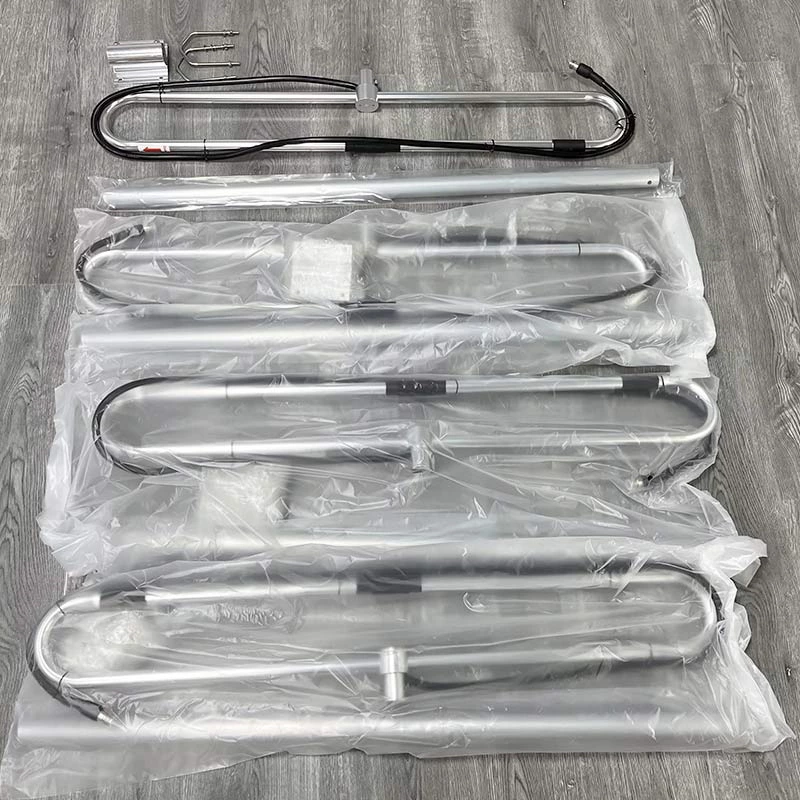

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
