Base Station Antenna CP22E Antenna VHF 144-146MHz 5/8 Wave Aluminum Alloy Omni
- Model No.
- CP22E
- Type
- Base station Antenna
- Place of Origin
- China
- Frequency Range
- 144-174MHz
- Gain
- 6.5dbi
- Connector
- SO239
- V.S.W.R
- 1.5
- Accept OEM
- yes
- Color
- Sliver
Characteristic
• Excellent RF specifications
• Exceptional material quality
• Cable sets with filter options available
• Separate filter available for radios with two antenna ports
• Ideal for land based solutions too
Core Performance
Lightweight antenna designed for medium gain applications requiring a low angle vertical pattern.
The CP22E is a 6.5dBi gain collinear VHF antenna designed to achieve maximum coverage for all base station installations regardless of terrain. However, the antenna performs best on tall towers, with performance improving as the tower is taller.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

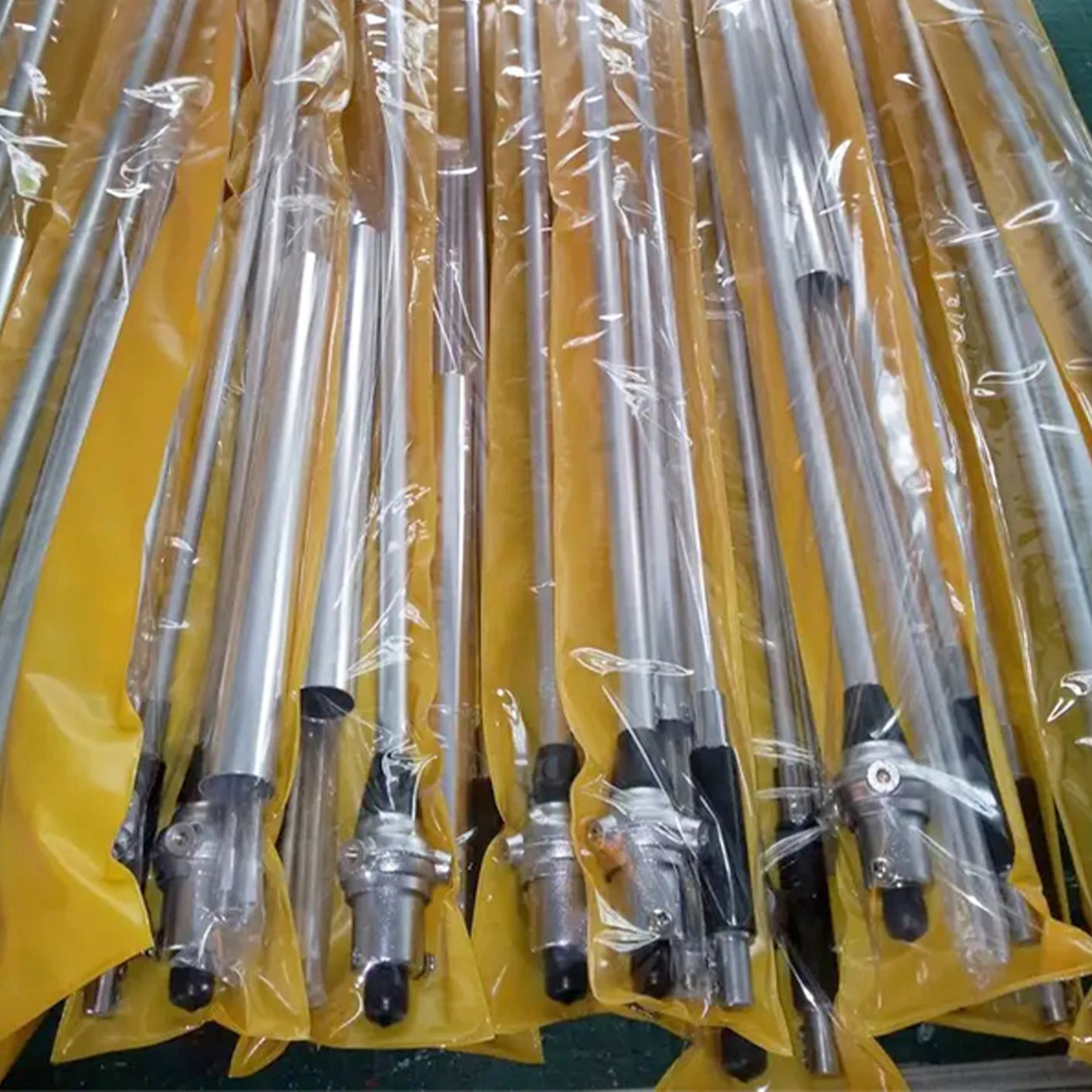

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.

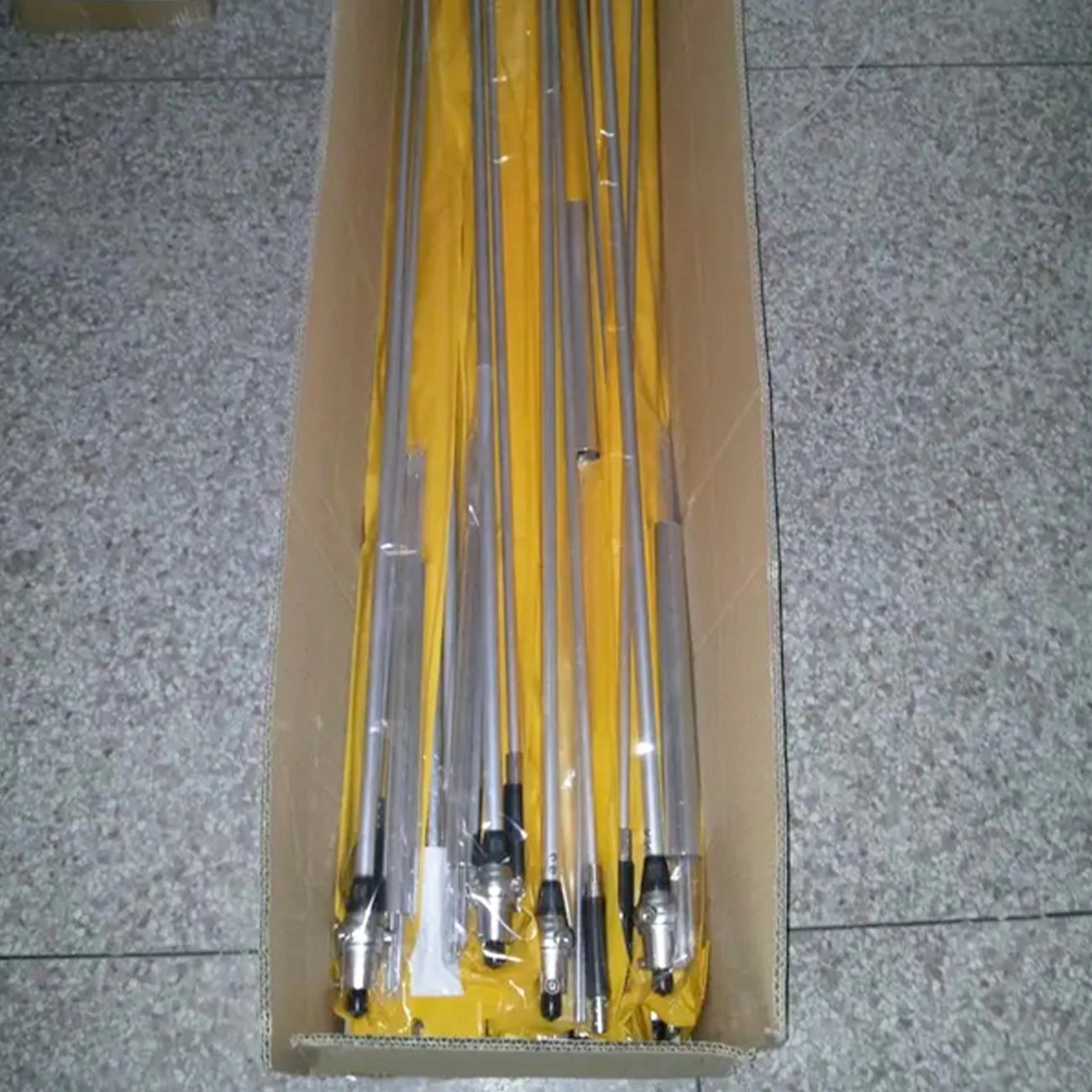

- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
