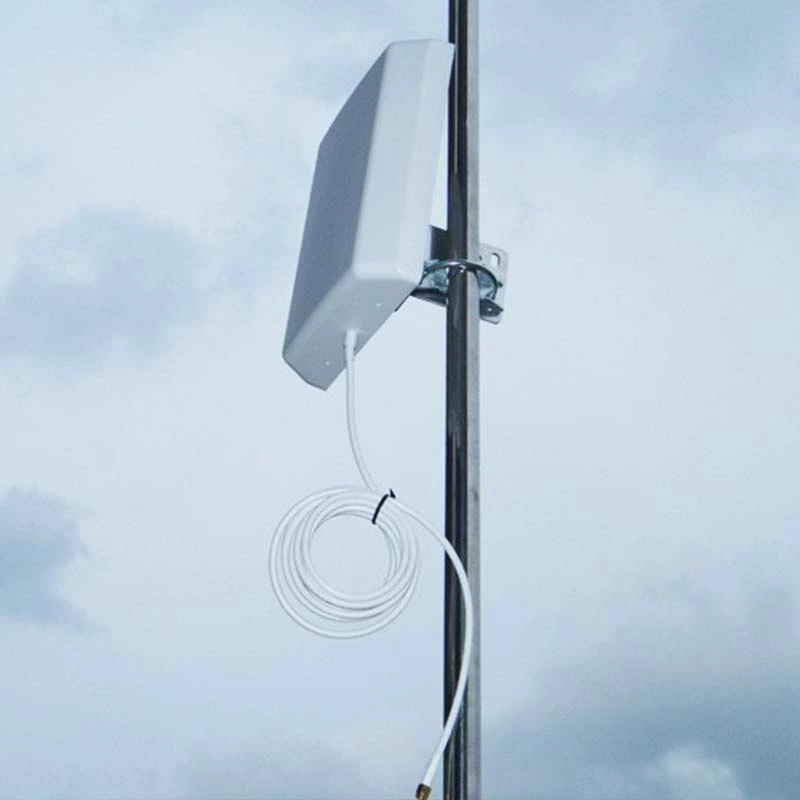

4G LTE Flat Panel Antenna 698-2700MHz Signal Boost Patch Panel Antenna Directional Wall Mounted Signal Amplifier

Characteristic

Medium gain, low standing wave, compact antenna structure, beautiful appearance, wall-mounted installation, wide frequency bandwidth.
4G/LTE broadband communication system, 4G signal indoor coverage. Point-to-point and point-to-multipoint applications.

‌Core Performance‌

The first and fifth layers are antenna protection layers, also known as antenna covers, which are made of corrosion-resistant media. They prevent oxidation, attenuate the impact of ultraviolet rays on printed circuit boards, and prevent rain and snow erosion.
The second layer is the receiving antenna layer. It is a metal layer of a printed circuit board, on which many neatly arranged unit oscillators are printed to form an antenna array, so it can be called an antenna substrate layer. This layer determines the technical quality of the flat antenna. The shape of the unit oscillator is diverse.
The third layer is the dielectric layer of the printed circuit board, which supports the second layer.
The fourth layer is the ground conductor layer, which is a metal foil plate that not only reflects the antenna array, but also is part of the feeder, forming a microstrip transmission line. The output of the antenna array is connected to the high-frequency head installed behind the flat antenna board.

Transport

We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.

You can either use our freight forwarding service or arrange it yourself. It all depends on you.

Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.
